FEDERAL PACIFIC

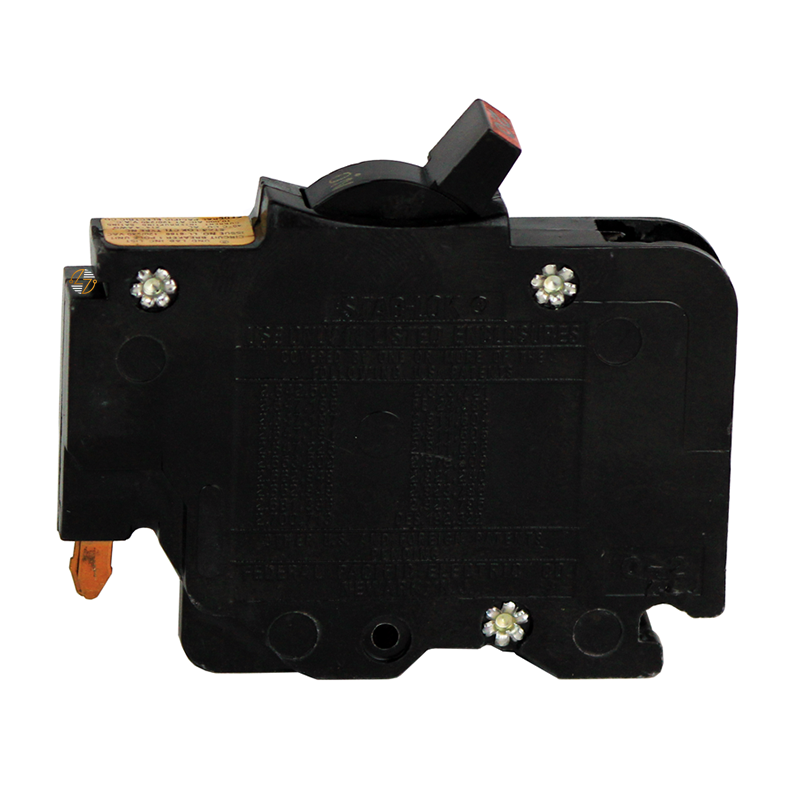

NC040 - 40Amp Circuit Breaker

NC040 - 40Amp Circuit Breaker

Regular price $36.00 USD
Regular price Sale price $36.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

NC040 - 40Amp Circuit Breaker

Need a replacement NC040 40-amp circuit breaker for a compatible legacy panel? This 1-pole Type NC thermal-magnetic circuit breaker matches the form, fit, and function required for the original NC040 application. With a stab-on connection, a compact 0.50-inch width, and a 10kA AIC rating at 120VAC, it’s a practical choice when you need to maintain an existing electrical system without changing the panel layout. The new offering is a newly manufactured aftermarket replacement specifically designed to fit the existing NC040 location and work with compatible equipment. Measuring approximately 3.38 inches high, 0.50 inches wide, and 2.31 inches deep, it keeps installation straightforward while preserving the space-saving configuration these systems were built around. In short, if your equipment calls for an NC040-style breaker with these exact electrical and dimensional requirements, this replacement fits the job and is built to last.

Key Features and Benefits

  • 40 amp, 1-pole configuration for compatible single-pole applications.
  • Type NC design fits equipment that uses the NC breaker format.
  • Stab-on connection for the appropriate existing mounting position.
  • Space-saving 0.50-inch width helps maintain the original panel arrangement.
  • Thermal magnetic operation provides overcurrent protection based on the breaker’s specified design.
  • 10kA AIC at 120VAC for applications requiring this interrupting rating.
  • New aftermarket replacement designed around the original NC040 form, fit, and function.
  • Built to last when properly selected and installed in compatible equipment.

Technical Specifications

  • Part Number: NC040
  • Type: NC
  • Amperage: 40 Amps
  • Poles: 1
  • Voltage: 120VAC
  • A.I.C. Rating: 10kA @ 120VAC
  • Trip Mechanism: Thermal Magnetic
  • Connection / Mounting: Stab-On
  • Height: 3.38 in.
  • Width: 0.50 in.
  • Depth: 2.31 in.
  • Ship Weight: 1.50 lbs.
  • Configuration: Space-Saving
  • Replacement Type: New aftermarket replacement designed for the NC040 application

Material Compliance and Certifications

The product specifications provided did not include specific certification, listing, or material-compliance information. For that reason, do not assume UL, CSA, RoHS, or other approvals. Before installation, verify the markings, ratings, certifications, and compatibility information shown on the actual breaker and accompanying documentation. For electrical protection equipment, matching the correct specifications is essential.

Where It Works Best

The NC040 40 amp circuit breaker is best suited for compatible legacy electrical panels and equipment that use the Type NC stab-on configuration. Its slim 0.50-inch profile makes it especially useful in space-saving panel layouts where maintaining the original breaker footprint matters. It is intended for applications requiring a 1-pole, 40 amp, 120VAC breaker with a 10kA interrupting rating and the appropriate NC040-style fit.
