NC020 - 20Amp Circuit Breaker

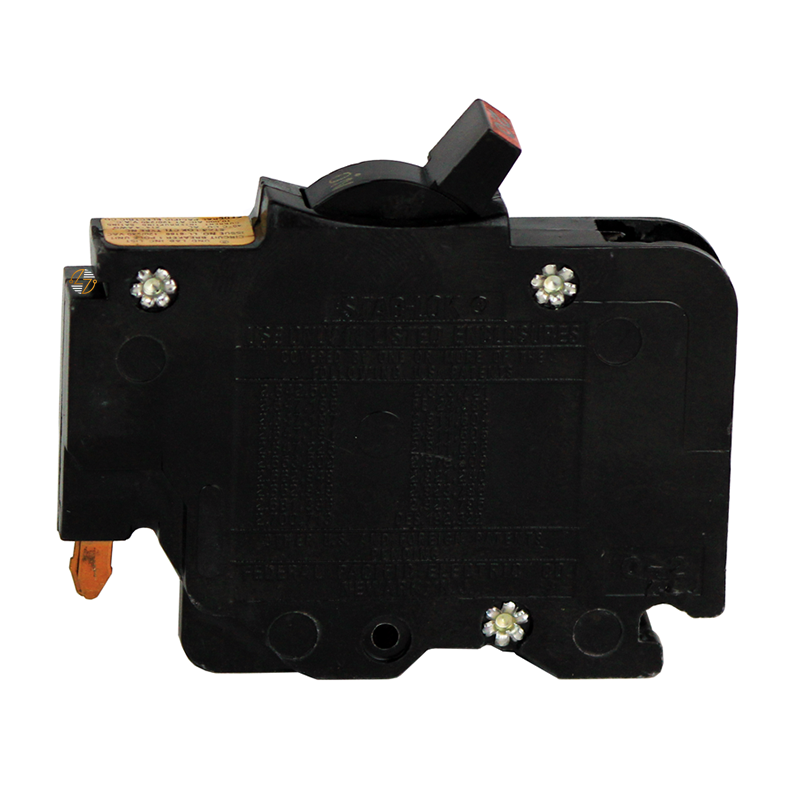

NC020 - 20 Amp Circuit Breaker

The NC020 20 Amp circuit breaker is a straightforward, single-pole breaker designed for 120VAC branch circuits in existing electrical panels. Rated at 20 amps with a 10kA interrupting capacity, it helps shut off power when a circuit becomes overloaded or a short circuit occurs—reducing the risk of damage to wiring and connected equipment. Its slim 0.50-inch width makes it a good fit for panels where space is limited, which is often the case in older or tightly configured setups. The thermal magnetic trip design responds to both gradual overloads and sudden faults, offering dependable protection in everyday residential and light commercial use. With a stab-on mounting style, it installs directly onto the bus bar for a secure connection during replacement.

Key Features and Benefits

• 20 Amp, single-pole breaker for 120VAC circuits
• 10kA A.I.C. rating
• Compact 0.50" width for space-restricted panels
• Thermal magnetic trip for overload and short-circuit protection
• Stab-on connection for direct panel installation
• Suitable for maintenance and replacement needs

Technical Specifications

• Model: NC020

• Poles: 1

• Amperage: 20A

• Voltage: 120VAC

• A.I.C. Rating: 10kA @ 120VAC

• Frame Type: NC

• Mounting Style: Stab-On

• Dimensions: 0.50" W x 3.38" L x 2.31" D

• Weight: 1.50 lbs


Material Compliance and Certifications

• The NC020 circuit breaker is manufactured to meet recognized electrical industry safety and performance standards. When installed in accordance with applicable codes and manufacturer guidelines, it supports safe and compliant system operation.

Where It Works Best

• This breaker is intended for replacement or maintenance in existing panels that require an NC frame, 20 amp, single-pole breaker. It’s a practical choice for residential service calls and light commercial repairs where matching the original specifications is important.
