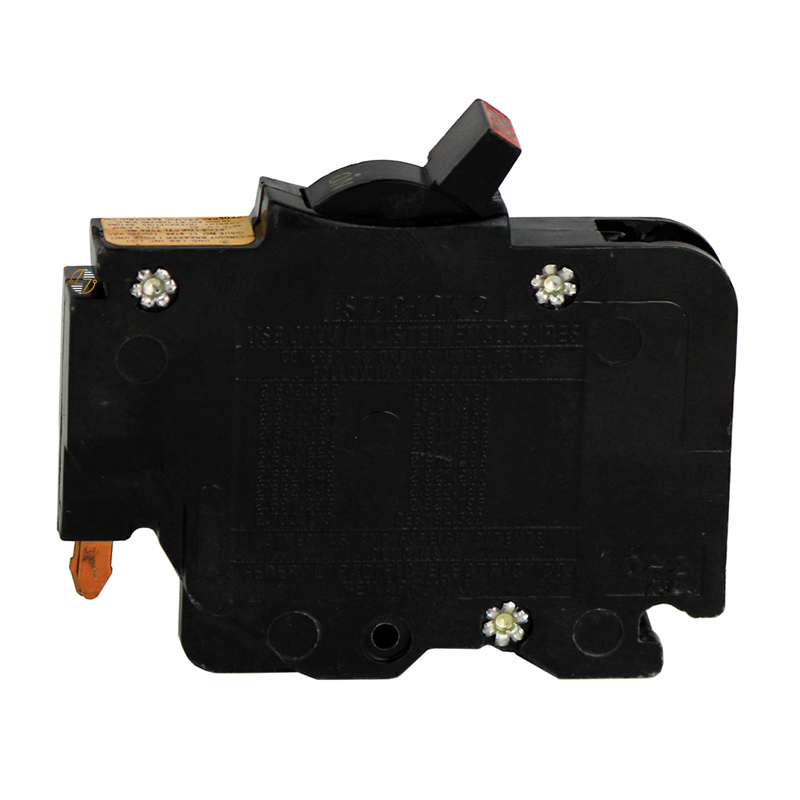

NC015 - 15Amp Circuit Breaker

NC015 - 15Amp Circuit Breaker

The NC015 15 Amp circuit breaker is a single-pole breaker built for protecting 120VAC branch circuits from overloads and short circuits. It uses a thermal magnetic trip mechanism, meaning it responds to prolonged overcurrent conditions as well as sudden faults. With a 10kA interrupting rating, it’s designed to safely clear higher fault levels found in many commercial and light industrial electrical systems.

One of the practical advantages of the NC015 is its slim 0.50-inch width. In panels where space is limited, that narrower footprint can make a real difference. The stab-on design allows the breaker to seat firmly into the panel, making it a straightforward option when replacing an existing unit during routine service or repairs. It’s a solid, no-frills solution for maintaining system protection without overcomplicating the job.

Key Features and Benefits

• 15 Amp rating for 120VAC branch circuit protection
• Thermal magnetic trip for both overload and short-circuit response
• 10kA interrupting capacity at 120VAC
• Narrow 0.50" width to help conserve panel space
• Stab-on mounting for secure, proper fit in compatible panels
• Built for consistent, everyday electrical use

Technical Specifications

• Poles: 1
• Amperage: 15A
• Interrupting Rating: 10kA @ 120VAC
• Frame Type: NC
• Dimensions: 0.50" W x 3.38" L x 2.31" D
• Type: Thermal Magnetic
• Approximate Ship Weight: 1.50 lbs

Material Compliance and Certifications

• The NC015 circuit breaker is manufactured to meet applicable industry safety standards. It is produced in accordance with RoHS guidelines and follows established environmental compliance requirements.

Where It Works Best

• The NC015 is well suited for maintaining and servicing existing electrical panels in commercial buildings, light industrial spaces, and similar facilities. It’s typically used as a replacement breaker where a 15A, single-pole, 120VAC unit with a slim profile is required to keep the system operating safely and reliably.
