FEDERAL PACIFIC

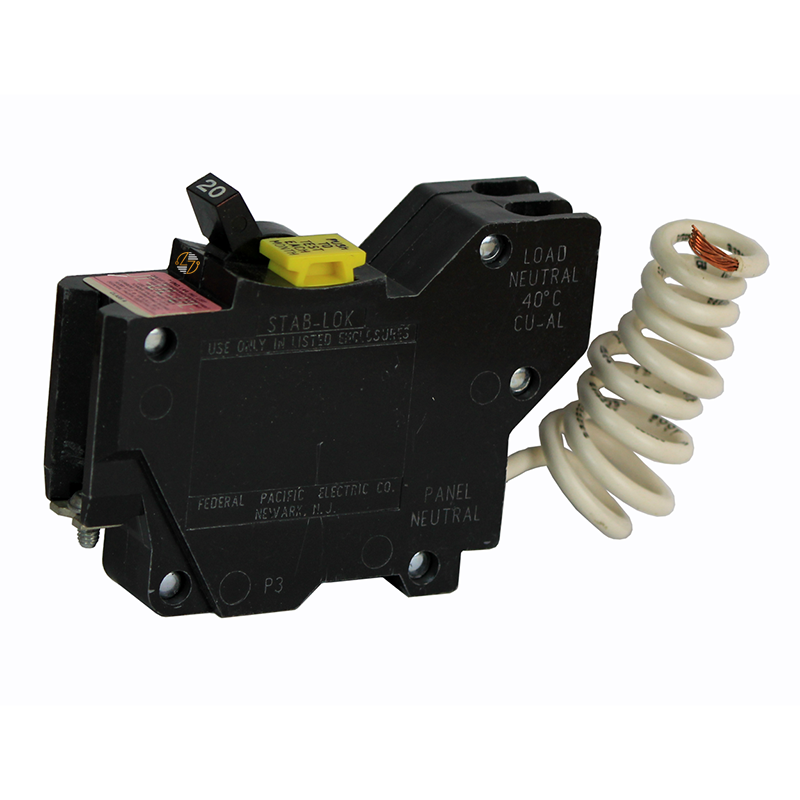

NBGF20 - 20Amp Circuit Breaker
NBGF20 - 20Amp Circuit Breaker
Couldn't load pickup availability
NBGF20 - 20Amp Circuit Breaker
The NBGF20 is a 20-amp, 1-pole thermal-magnetic circuit breaker with a bolt-on connection. It is rated 10k AIC at 120VAC and measures 3.5 inches high, 1 inch wide, and 2.31 inches deep. If you're replacing a breaker in existing equipment, getting the details right matters. The amperage may match, but the pole count, voltage, mounting style, interrupting rating, and physical size must also match the application. The NBGF20 is a practical choice for compatible equipment that specifically calls for this type of breaker. Its straightforward bolt-on construction is built to last when correctly installed and used within its stated ratings.
Key Features and Benefits
- 20-amp rating for applications requiring a 20A breaker
- Single-pole design for compatible 1-pole circuits
- Bolt-on connection to match equipment designed for this mounting style
- Thermal-magnetic circuit breaker construction
- 10k AIC at 120VAC electrical rating
- 3.5" × 1.0" × 2.31" dimensions for checking physical fit
- Well suited to maintenance and replacement applications where matching the existing breaker specifications is important
Technical Specifications
-
Part Number: NBGF20
-
Type: NBGF
-
Breaker Type: Thermal Magnetic
-
Mounting: Bolt-On
-
Amperage: 20A
-
Poles: 1
-
Voltage: 120VAC
-
A.I.C. Rating: 10k
-
Height: 3.5 in.
-
Width: 1.0 in.
-
Depth: 2.31 in.
- Ship Weight: 2.10 lbs.
Material Compliance and Certifications
Specific material compliance information and certifications were not included in the available product specifications. If your application requires a particular listing, certification, or compliance standard, verify the markings and documentation for the individual breaker before installation.
Where It Works Best
The NBGF20 works best in compatible electrical equipment that requires an NBGF-type, 20A, 1-pole bolt-on breaker rated 10k AIC at 120VAC. It can be especially useful when maintaining legacy equipment where matching the original breaker's form, fit, and electrical specifications matters.
Before replacing an existing breaker, compare the part number and breaker type along with the amperage, voltage, pole count, AIC rating, mounting method, and dimensions. A qualified electrical professional should confirm final compatibility and installation.
