NB232070 - 70Amp Circuit Breaker

NB232070 - 70Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

NB232070 - 70Amp Circuit Breaker

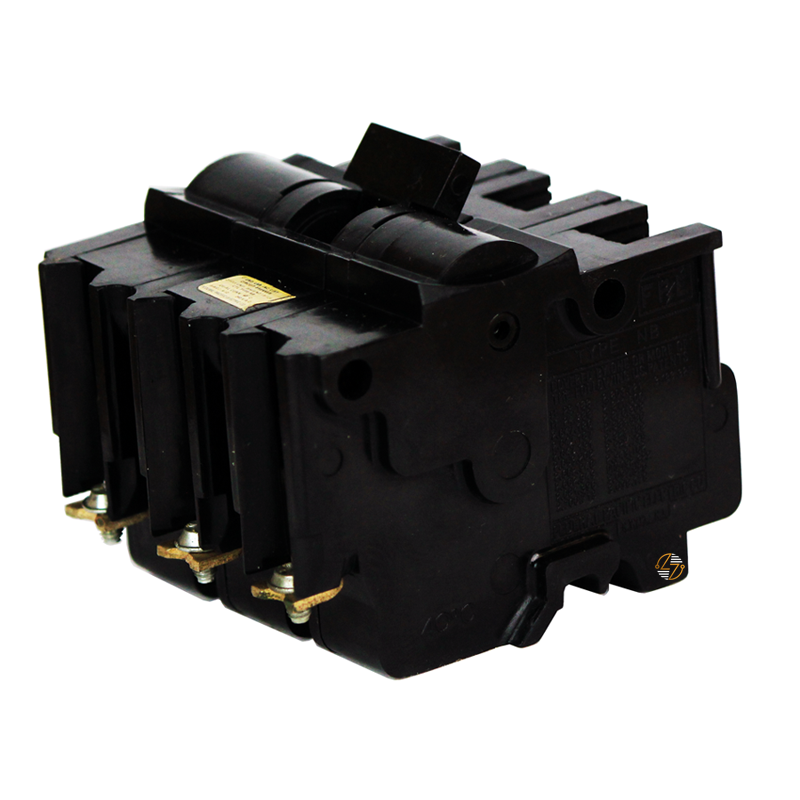

When you're replacing a breaker in an existing electrical system, the details matter. The NB232070 is a Type NB, 3-pole, 70-amp thermal-magnetic circuit breaker with a bolt-on connection. It carries a 10k AIC rating at 240VAC and measures 3.38 inches high, 3.0 inches wide, and 2.31 inches deep. Those specifications make it easier to compare the breaker with the equipment already in place rather than relying on appearance alone. This model fits compatible legacy electrical systems that require the same Type NB configuration, electrical ratings, dimensions, and mounting style. The thermal magnetic design provides overcurrent protection, while the bolt-on mounting provides a secure connection in equipment designed for this type of installation. Simply put, the NB232070 is built to last and is intended to keep compatible existing equipment in service without changing the original application requirements.

Key Features and Benefits

  • 70-amp, 3-pole breaker for compatible electrical applications.
  • 10k AIC at 240VAC rating makes it straightforward to compare against existing system requirements.
  • Thermal-magnetic operation provides overcurrent protection using thermal and magnetic trip functions.
  • Bolt-on mounting is designed for equipment that uses a secured bolt-on breaker connection.
  • Type NB configuration helps maintain the required form, fit, and function in compatible equipment.
  • At 3.38" H x 3.0" W x 2.31" D, its dimensions can be checked against the existing breaker before installation.
  • Built to last when properly selected, installed, and maintained.

Technical Specifications

  • Part Number: NB232070
  • Type: NB
  • Breaker Type: Thermal Magnetic
  • Mounting Style: Bolt-On
  • Poles: 3
  • Amperage: 70A
  • A.I.C. Rating & Voltage: 10k @ 240VAC
  • Height: 3.38 in.
  • Width: 3.0 in.
  • Depth: 2.31 in.

Material Compliance and Certifications

  • The available product specifications did not include specific agency certifications, material-compliance information, or listing numbers. Because accuracy matters with electrical equipment, do not assume UL, CSA, RoHS, REACH, or similar certification based on the information currently available. Check the product markings and applicable documentation when a particular listing or compliance requirement is needed for the installation.

Where It Works Best

  • The NB232070 circuit breaker is best suited to compatible legacy electrical systems and equipment that require a Type NB breaker with this particular combination of ratings and dimensions. It can be useful for maintenance and replacement work where the goal is to keep the original form, fit, and function.
  • One thing to check carefully: 70 amps alone isn't enough to confirm compatibility. Compare the part number, Type NB configuration, three-pole design, 240VAC rating, 10k AIC rating, bolt-on mounting, and physical dimensions with the existing equipment. A qualified electrical professional should confirm compatibility and installation requirements before putting the breaker into service.
