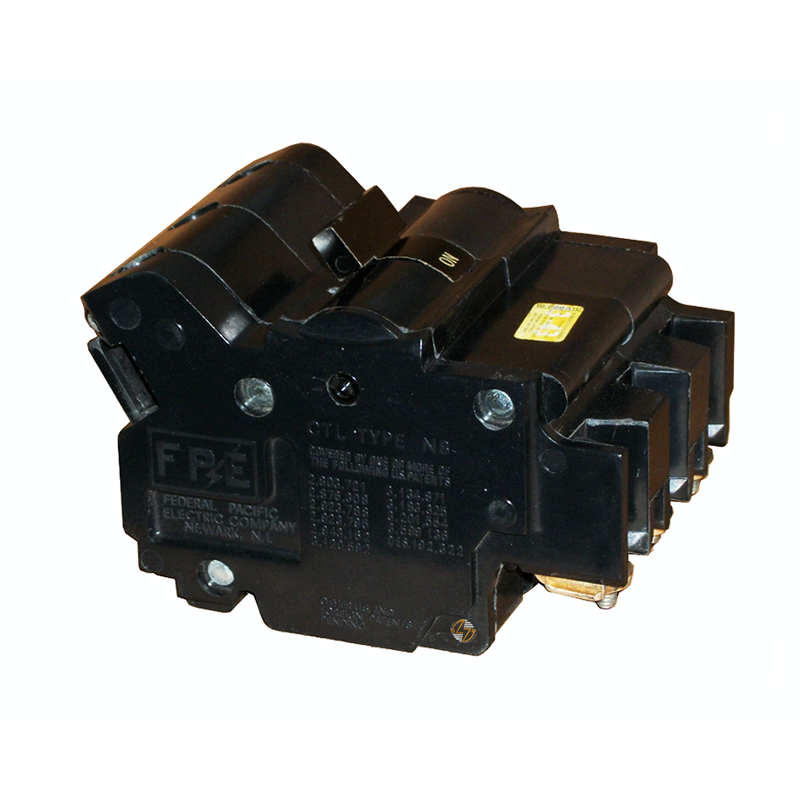

NB231100 - 100Amp Circuit Breaker

NB231100 - 100Amp Circuit Breaker

The NB231100 100 Amp circuit breaker is built for dependable protection in residential and light commercial electrical panels. With a 3-pole design and a 120/240VAC rating, it helps protect wiring and connected equipment from overloads and short circuits. The bolt-on mounting style creates a tight, secure connection to the panelboard, which is especially important in applications where vibration or long-term use can loosen clip-in breakers. Whether you’re replacing a worn unit or maintaining an existing system, the NB231100 offers the steady performance electricians expect from an NB frame breaker.

Key Features and Benefits

• 100 Amp Rating: Designed to handle circuits requiring 100A protection.
• 3-Pole Configuration: Suitable for multi-phase applications in residential and light commercial systems.
• Thermal Magnetic Trip: Provides time-delayed protection for overloads and fast response to short circuits.
• Bolt-On Design: Secures directly to the panel bus for improved stability and electrical contact.
• 10k AIC Rating: Capable of interrupting up to 10,000 amps at 120/240VAC.
• NB Frame Construction: Built for consistent, long-term use in compatible panelboards.

Technical Specifications

• Model Number: NB231100

• Amperage: 100A

• Poles: 3

• Voltage Rating: 120/240VAC

• Interrupting Capacity: 10,000 AIC @ 120/240VAC

• Trip Type: Thermal Magnetic

• Mounting: Bolt-On

• Frame Type: NB

• Dimensions:
  • Width: 3.00"
  • Length: 3.38"
  • Depth: 2.31"
• Weight: 2.75 lbs


Material Compliance and Certifications

• Industry Standards: The NB231100 is manufactured using quality-tested materials and is designed to meet established industry safety and performance standards. Each breaker is inspected and tested to help ensure proper operation within its rated specifications when installed in compatible equipment and according to applicable electrical codes.


Where It Works Best

• This 100 amp 3 pole bolt-on circuit breaker is commonly used in existing residential and light commercial electrical systems that require a compatible NB frame replacement. It’s a practical option for panel maintenance, system upgrades, and restoring protection in distribution equipment where reliability and proper fit are essential.
