FEDERAL PACIFIC

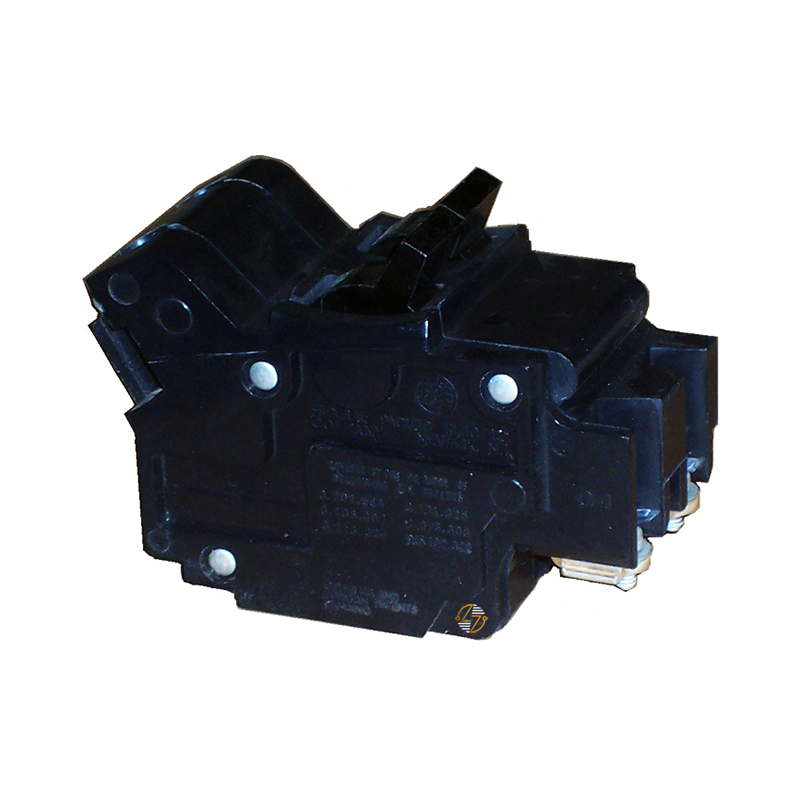

NB100 - 100Amp Circuit Breaker

NB100 - 100Amp Circuit Breaker

Regular price $399.00 USD
Regular price Sale price $399.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

NB100 - 100Amp Circuit Breaker

Need a replacement for an NB100 circuit breaker? This 100-amp, 2-pole breaker matches the form, fit, and function of the NB100 used in compatible electrical equipment. It has a bolt-on connection, thermal-magnetic operation, and a 10k AIC rating at 120/240VAC. Measuring 4.25 inches high, 2 inches wide, and 2.31 inches deep, it fits the existing NB100 location without changing the intended breaker configuration. For electricians and maintenance teams working on older electrical systems, that makes finding the right replacement much more straightforward. Before installation, check the part number, dimensions, mounting style, amperage, voltage, and interrupting rating against your existing breaker. When properly matched to the application and used within its stated ratings, the NB100 is built to last and perform as required.

Key Features and Benefits

  • 100-amp, 2-pole breaker for compatible NB100 applications
  • Bolt-on design for the required mounting configuration
  • Thermal-magnetic operation
  • Rated 120/240VAC
  • 10k AIC at 120/240VAC
  • Made as a form, fit, and functional replacement for the NB100
  • Dimensions are 4.25" H x 2.0" W x 2.31" D
  • Built for continued use when properly matched and installed

Technical Specifications

  • Part Number: NB100
  • Type: NB
  • Amperage: 100A
  • Poles: 2
  • Voltage: 120/240VAC
  • AIC Rating: 10k @ 120/240VAC
  • Mounting: Bolt-On
  • Operation: Thermal-Magnetic
  • Ship Weight: 2.25 lbs.
  • Dimensions:
    • Height: 4.25 in.
    • Width: 2.0 in.
    • Depth: 2.31 in.

Material Compliance and Certifications

  • Specific certification and material compliance information was not included in the product details provided. Rather than assume a listing or certification, check the labeling and documentation supplied with the breaker when a particular approval is required.
  • Always verify the part number, electrical ratings, physical dimensions, and mounting configuration before installation.

Where It Works Best

  • The NB100 breaker is intended for existing electrical equipment that requires the NB100 form factor and specifications. It's well suited to replacement and maintenance work where the existing application calls for a 100 amp, 2-pole, bolt-on thermal magnetic circuit breaker rated 120/240VAC with a 10k AIC rating.
  • The key is matching the breaker to the equipment—not changing the application to accommodate a different breaker. Carefully check the existing breaker and equipment requirements to ensure the NB100's ratings, dimensions, and bolt-on configuration match.
