FEDERAL PACIFIC

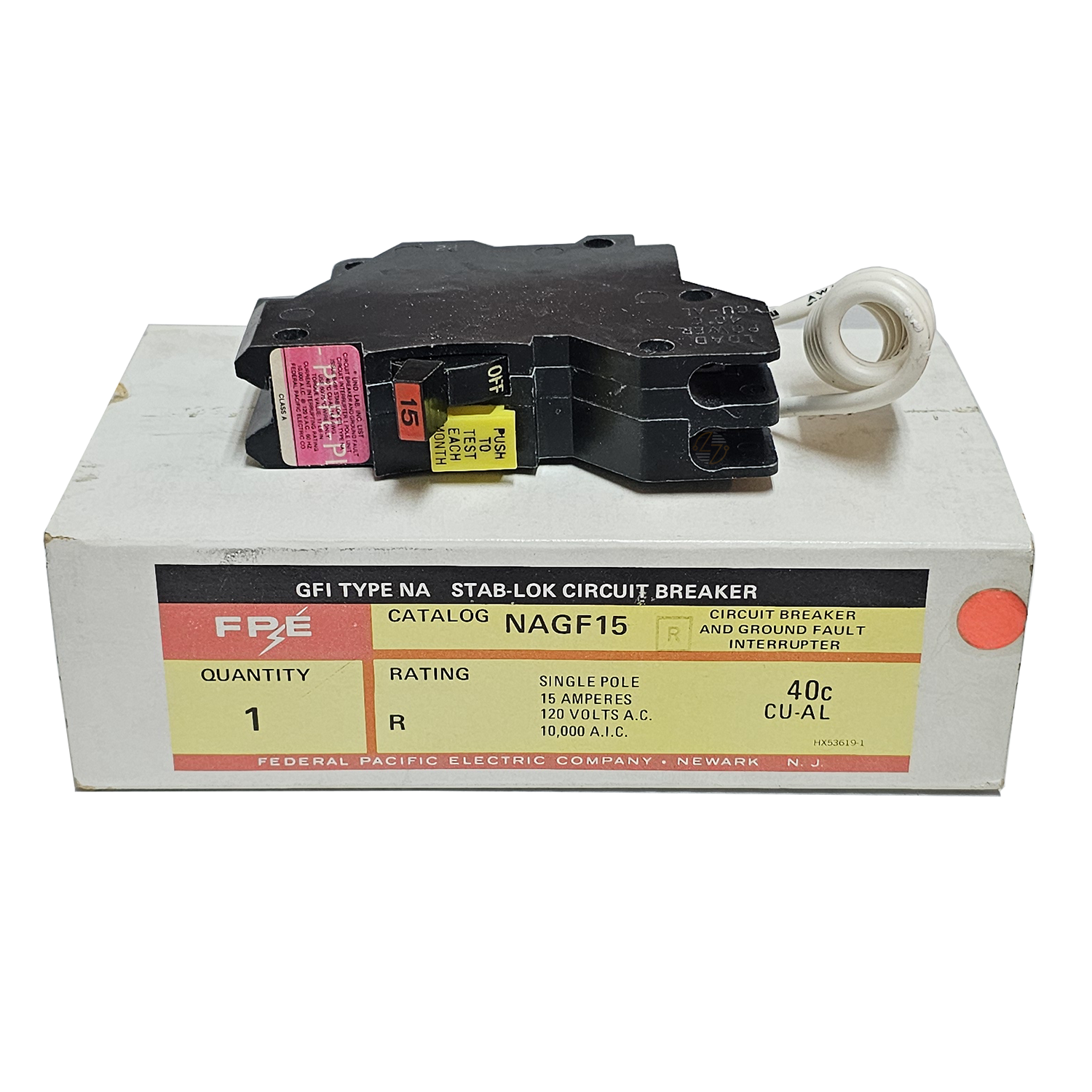

NAGF15 - 15Amp Circuit Breaker

NAGF15 - 15Amp Circuit Breaker

Regular price $249.99 USD
Regular price Sale price $249.99 USD
Sale Sold out
Shipping calculated at checkout.
Condition

NAGF15 - 15Amp Circuit Breaker

When you're replacing a breaker in an existing electrical system, the small details matter. The NAGF15 is a 15-amp, single-pole thermal-magnetic circuit breaker with a stab-on connection. It's rated for 120VAC and 10k AIC, making it suitable for compatible equipment that requires these ratings and the NAGF configuration. The breaker measures 3.5 inches high, 1 inch wide, and 2.31 inches deep. That gives electricians and maintenance teams another important set of details to check when matching an existing breaker. After all, finding the right replacement isn't simply about matching the amperage. The pole configuration, voltage, interrupting rating, connection style, dimensions, and breaker type all play a part. As a thermal-magnetic breaker, the NAGF15 is designed to respond to overcurrent conditions within its specified ratings. Its stab-on design also makes it a straightforward fit for compatible equipment built around the NAGF configuration. For facilities where keeping an existing electrical system in service is the priority, this practical, built-to-last component lets you maintain the required form, fit, and function.

Key Features and Benefits

  • 15 amp, single-pole configuration for compatible 120VAC applications
  • Thermal-magnetic operation for overcurrent protection
  • 10 kAIC at 120VAC
  • Stab-on design for equipment that accepts the NAGF connection style
  • Compact dimensions of 3.5" H × 1" W × 2.31" D
  • Well suited to compatible legacy electrical equipment
  • Clearly defined specifications make it easier to compare against an existing breaker

Technical Specifications

  • Part Number: NAGF15
  • Type: NAGF
  • Breaker Type: Thermal Magnetic
  • Connection: Stab-On
  • Poles: 1
  • Amperage: 15A
  • Voltage: 120VAC
  • AIC Rating: 10k at 120VAC
  • Ship Weight: 2.0 lbs.
  • Dimensions:
    • Height: 3.5 in.
    • Width: 1.0 in.
    • Depth: 2.31 in.

Material Compliance and Certifications

Specific certification numbers and material-compliance information were not provided with the available NAGF15 specifications. For that reason, do not make claims about UL, CSA, RoHS, or specific material composition without supporting documentation or markings on the breaker.

Where It Works Best

The NAGF15 circuit breaker is a good match for compatible legacy equipment that specifically requires a 15A, 1-pole NAGF stab-on breaker rated for 120VAC and 10k AIC.

Before replacing an existing breaker, check the full set of specifications, not just amperage. Confirm the part number, breaker type, poles, voltage, AIC rating, connection style, and physical dimensions with the equipment requirements. Qualified electrical personnel should perform the installation and follow applicable electrical codes.
