FEDERAL PACIFIC

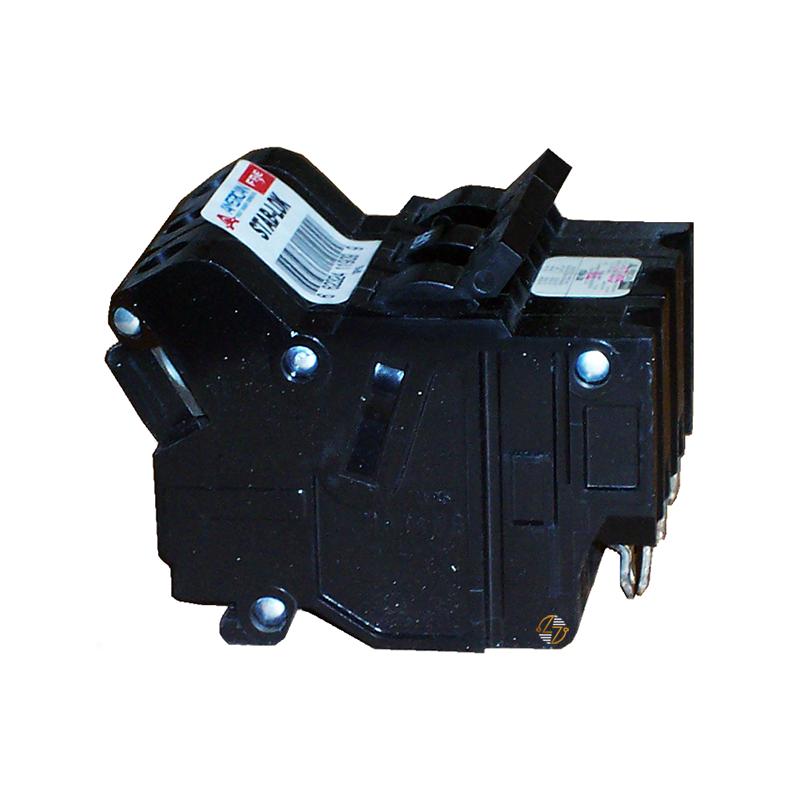

NA3P70 - 70Amp Circuit Breaker

NA3P70 - 70Amp Circuit Breaker

Regular price $857.00 USD
Regular price Sale price $857.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

NA3P70 - 70Amp Circuit Breaker

Need an NA3P70 circuit breaker for an existing installation? This Type NA breaker is rated at 70 amps and has a 3-pole, stab-on configuration with thermal-magnetic operation. Its interrupting rating is 10 kA.I.C. at 240VAC. For replacement work, getting the details right matters. The NA3P70 measures 3.38 inches high, 3.0 inches wide, and 2.31 inches deep, so that you can compare its size and mounting style with the breaker currently in your equipment. It's a straightforward option for maintaining legacy electrical systems that were designed around this particular breaker configuration.

These breakers are built to last, but part number alone shouldn't determine compatibility. Before installation, check the amperage, number of poles, voltage, A.I.C. rating, stab-on connection, and physical dimensions.

Key Features and Benefits

  • 70 amp, 3-pole configuration for equipment requiring these specific electrical characteristics
  • 10 kA.I.C. at 240VAC for clearly defined application requirements
  • Thermal magnetic operation provides overcurrent protection
  • Stab-on design for compatible equipment and panel configurations
  • Known physical dimensions make it easier to check form and fit before installation
  • Well suited to maintenance and replacement applications where the existing system calls for an NA3P70

Technical Specifications

  • Part Number: NA3P70
  • Type: NA
  • Amperage: 70A
  • Poles: 3
  • Voltage: 240VAC
  • A.I.C. Rating: 10k
  • Trip Type: Thermal Magnetic
  • Connection: Stab-On
  • Dimensions:
    • Height: 3.38 in.
    • Width: 3.0 in.
    • Depth: 2.31 in.

Material Compliance and Certifications

  • Certification and material-compliance details were not provided with the available NA3P70 specifications, so they shouldn't be assumed. If your installation requires a particular listing, certification, or material standard, check the markings on the breaker and the documentation for the equipment where it will be installed.

Where It Works Best

  • The NA3P70 is best suited to existing electrical equipment that calls for a 70-amp, 3-pole Type NA stab-on circuit breaker with a 10 kA.I.C. rating at 240VAC. That makes it particularly relevant for maintenance and form-fit-function replacement work in legacy systems.
  • Before replacing an existing breaker, compare more than the amp rating. Check the part number, pole count, voltage, A.I.C. rating, dimensions, and stab-on configuration against the original breaker and equipment requirements. Qualified personnel should complete the electrical installation in accordance with applicable codes.
