FEDERAL PACIFIC

NA3P40 - 40Amp Circuit Breaker

NA3P40 - 40Amp Circuit Breaker

Regular price $428.00 USD
Regular price Sale price $428.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

NA3P40 - 40Amp Circuit Breaker

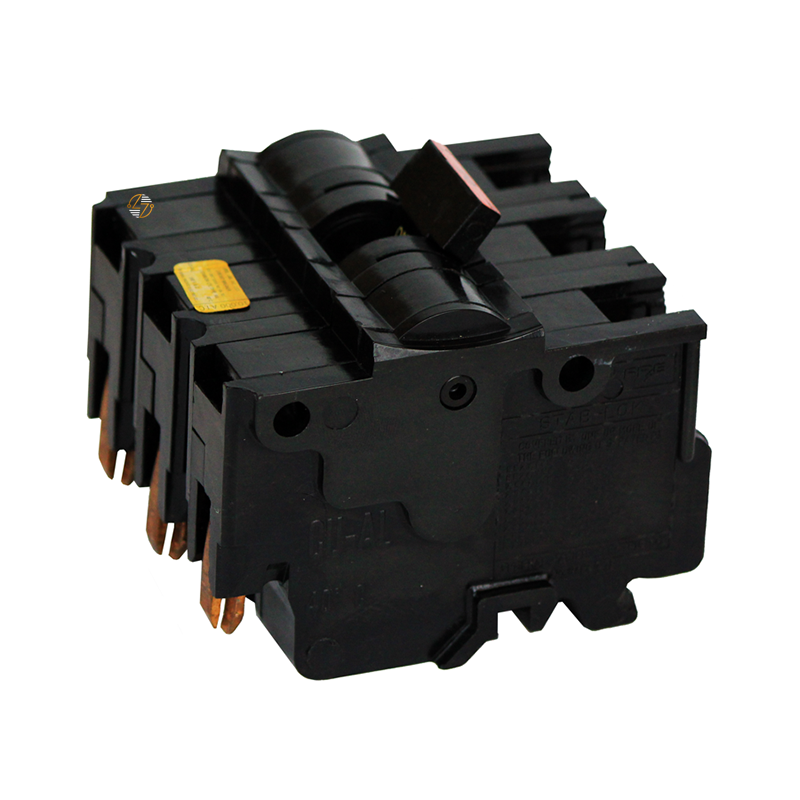

The NA3P40 is a 40-amp, 3-pole Type NA circuit breaker with a stab-on connection and thermal-magnetic operation. It is rated 10 kA.I.C. at 240VAC and measures 3.38" high, 3.0" wide, and 2.31" deep.

If you're replacing a breaker in existing equipment, those details are important. A breaker may have the right amperage but still not fit because of its pole configuration, connection style, dimensions, or other electrical ratings. The NA3P40 is intended for equipment designed around this particular Type NA, 3-pole stab-on configuration.

Key Features and Benefits

  • 40 amp, 3-pole configuration for applications requiring these specific ratings
  • Type NA design for compatible electrical equipment
  • Stab-on connection for equipment that accepts this mounting style
  • Thermal magnetic operation for circuit protection within its rated application
  • 10k A.I.C. at 240VAC
  • Compact size of 3.38" H × 3.0" W × 2.31" D
  • Well suited for replacement and maintenance of compatible legacy electrical systems
  • Built to last when properly installed and used within its specified ratings

Technical Specifications

  • Part Number: NA3P40
  • Type: NA
  • Amperage: 40 Amps
  • Poles: 3
  • A.I.C. Rating: 10k
  • Voltage: 240VAC
  • Trip Type: Thermal Magnetic
  • Connection: Stab-On
  • Height: 3.38 in.
  • Width: 3.0 in.
  • Depth: 2.31 in.
  • Ship Weight: 3.50 lbs.

Material Compliance and Certifications

Material compliance details and specific agency certifications were not provided with the available NA3P40 specifications. Because certification requirements can vary by application, confirm any required listings or approvals using the markings on the breaker and its supporting documentation.

Where It Works Best

The NA3P40 40 amp circuit breaker is best suited for existing electrical equipment that requires a 3-pole, Type NA, stab-on breaker with matching ratings and dimensions. This makes it particularly relevant for maintenance and replacement work involving legacy electrical systems.
