FEDERAL PACIFIC
NA3P30 - 30Amp Circuit Breaker
NA3P30 - 30Amp Circuit Breaker
Couldn't load pickup availability

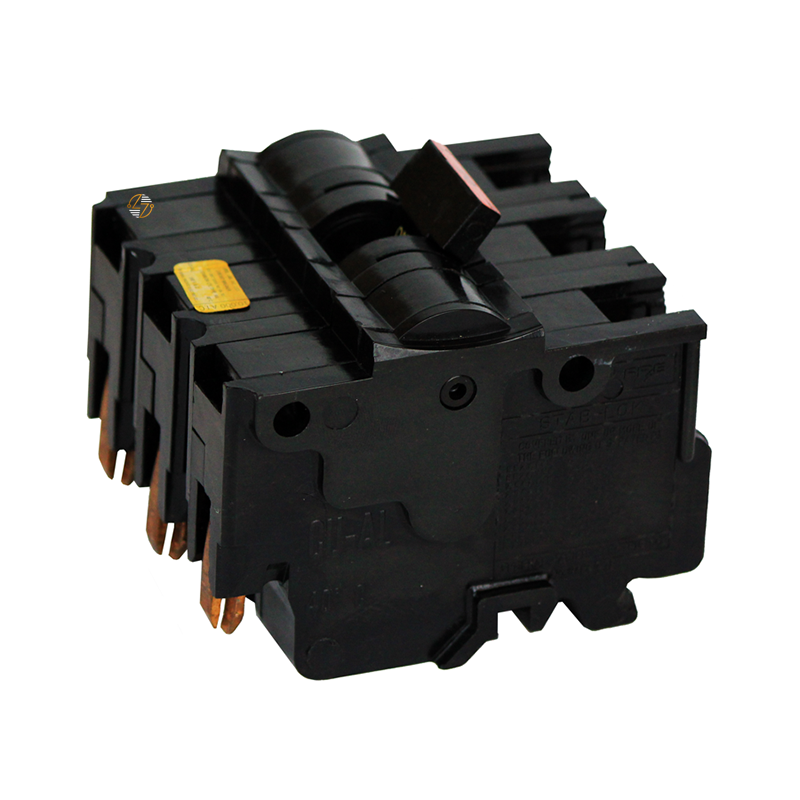

NA3P30 - 30Amp Circuit Breaker
The NA3P30 is a 30-amp, 3-pole thermal magnetic circuit breaker with an NA-style stab-on connection. It carries a 10 kA Icu rating at 240VAC and measures 3.38" high x 3.0" wide x 2.31" deep.
When you're replacing a breaker in older electrical equipment, getting the details right matters; the amperage, number of poles, voltage, interrupting rating, connection style, and physical size must match the equipment's requirements. The NA3P30 is intended for applications that specifically call for this type of 30A, three-pole stab-on breaker.
It's a straightforward replacement component built to last when correctly matched to the application and used within its specified ratings.
Key Features and Benefits
- 30 amp rating for equipment designed around a 30A breaker
- 3-pole configuration for compatible three-pole applications
- Thermal magnetic operation for overcurrent protection
- 10k A.I.C. at 240VAC
- NA-type stab-on connection
- Compact 3.38" x 3.0" x 2.31" dimensions
- Well suited to replacement and maintenance work in compatible legacy equipment
Technical Specifications
-
Part Number: NA3P30
-
Type: NA
-
Breaker Type: Thermal Magnetic
-
Connection: Stab-On
-
Amperage: 30 A
-
Poles: 3
-
Voltage: 240VAC
-
A.I.C. Rating: 10k
-
Dimensions:
- Height: 3.38 in.
- Width: 3.0 in.
- Depth: 2.31 in.
Material Compliance and Certifications
- The available NA3P30 specifications did not include specific certification, listing, or material compliance information. If a particular certification or compliance requirement applies to your installation, check the markings and documentation for the individual breaker before use.
Where It Works Best
- The NA3P30 is intended for compatible legacy electrical equipment that uses an NA-type stab-on breaker. It's especially useful when maintenance or repair work requires a 30 amp, 3-pole thermal magnetic breaker with a 10k A.I.C. rating at 240VAC.
- Before replacing an existing breaker, check more than the part number. Compare the amperage, voltage, pole count, A.I.C. rating, dimensions, and connection style with the equipment requirements. Qualified personnel should handle electrical installation in accordance with applicable requirements.
