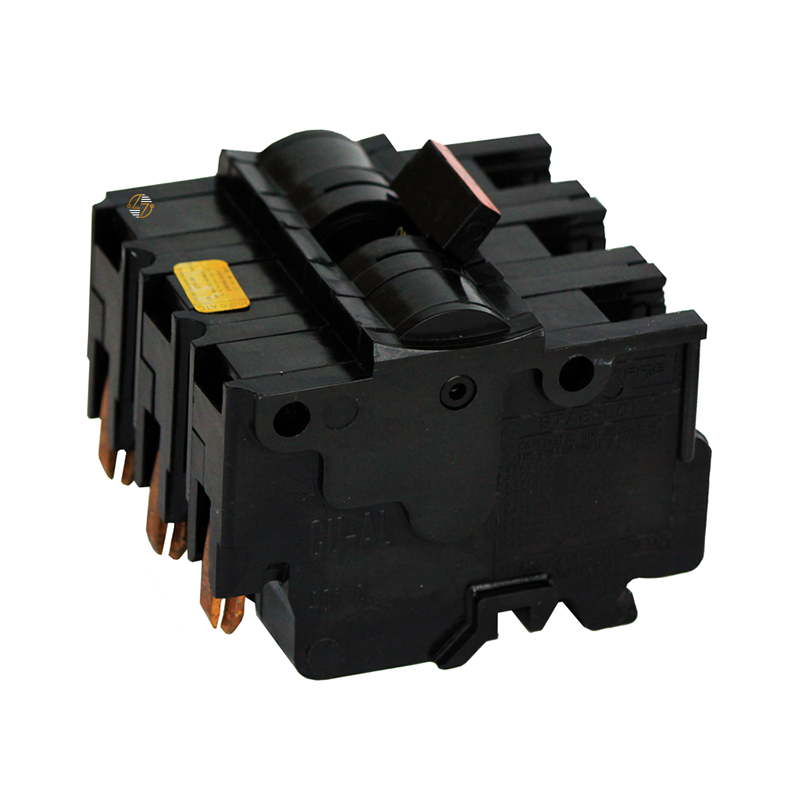

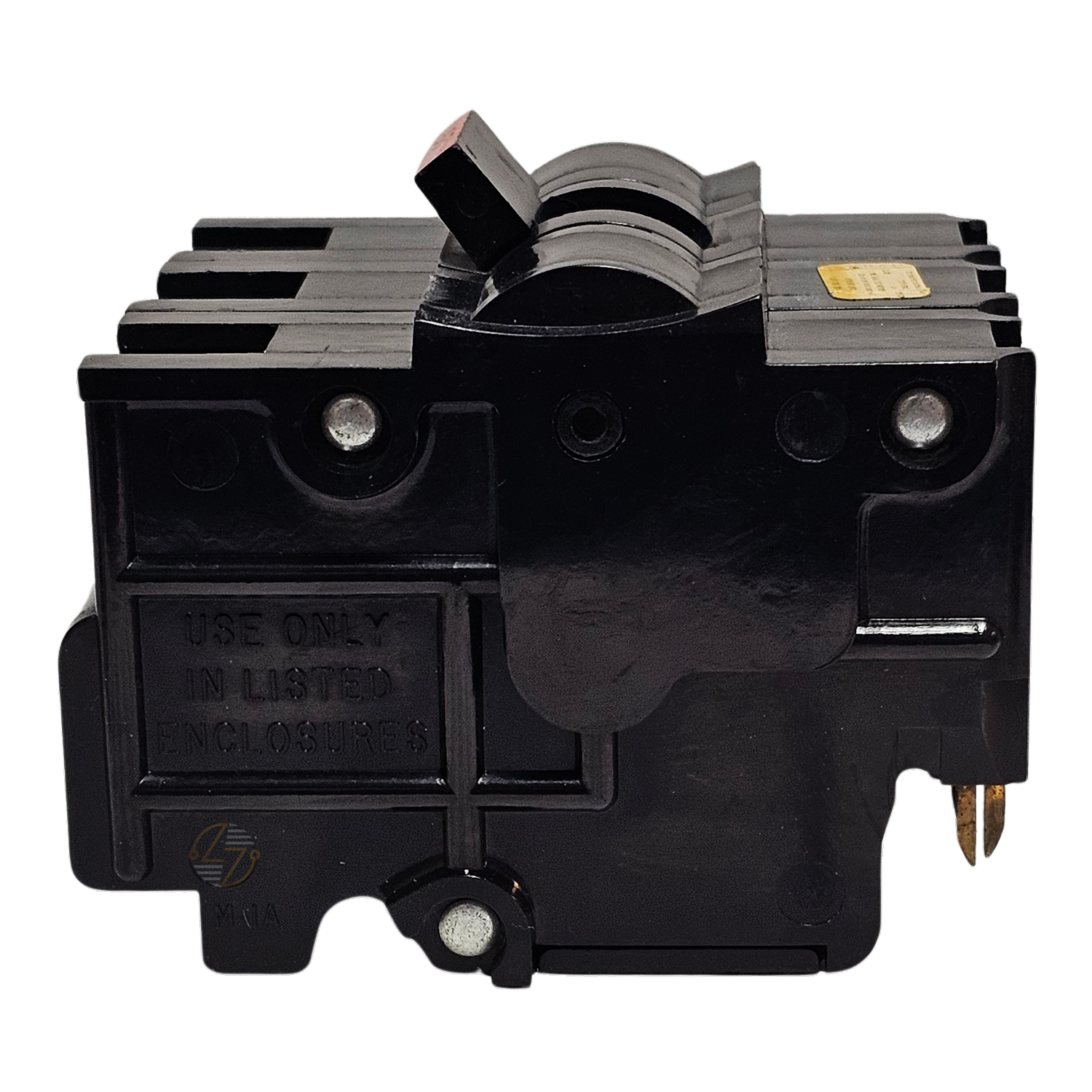

NA3P20 - 20Amp Circuit Breaker

NA3P20 - 20Amp Circuit Breaker

The NA3P20 Stab-Lok Circuit Breaker is an essential component designed for Federal Pioneer panels, offering unparalleled protection and reliability for residential and commercial electrical systems. This three-pole, 20Amp breaker operates at 240VAC and features a robust 10kA interrupting capacity, ensuring it can handle significant electrical loads and prevent potential circuit damage. Its plug-in mounting design allows for easy installation and maintenance, making it a preferred choice for electricians and contractors.

Key Features and Benefits:

• Reliable Performance: The NA3P20 is a thermal magnetic circuit breaker, combining both thermal and magnetic trip elements to provide comprehensive circuit protection against overloads and short circuits.
• User-Friendly Design: Equipped with color-coded handles, it offers clear and easy identification of ampere ratings, enhancing safety and usability.
• High Interrupting Capacity: With a 10kA breaking capacity, this circuit breaker can efficiently interrupt high fault currents, safeguarding your electrical systems.
• Ease of Installation: The plug-in mounting mode simplifies the installation process, saving time and effort for electrical professionals.

Technical Specifications:

• Range of Product: Stab-Lok
• Rated Current ([In]): 20Amp
• Operational Voltage ([Ue]): 240V AC
• Poles Description: 3P (Three Poles)
• Breaking Capacity: 10 kA
• Mounting Mode: Plug-in
• Electrical Connection: Screw connector
• AWG Gauge: Accepts AWG 14 to AWG 1/0 copper wire

Material Compliance and Certifications:

• Product Certifications: Meets CSA standards, ensuring compliance with safety and performance requirements.
• Environmental Compliance: The NA3P20 carries the Green Premium label, reflecting Schneider Electrics commitment to delivering eco-friendly products. It is mercury-free and compliant with the RoHS directive, reducing environmental impact and promoting sustainability.
• Regulatory Standards: Conforms to the EU RoHS Directive with exemptions and adheres to REACh regulations, providing transparency on material composition and environmental impact.

Suitability:

• Ideal for use in residential and commercial settings, the NA3P20 Stab-Lok Circuit Breaker is suitable for applications requiring reliable protection of electrical circuits. Its robust construction and compliance with stringent safety standards make it an excellent choice for new installations or upgrades in Federal Pioneer panel systems.
