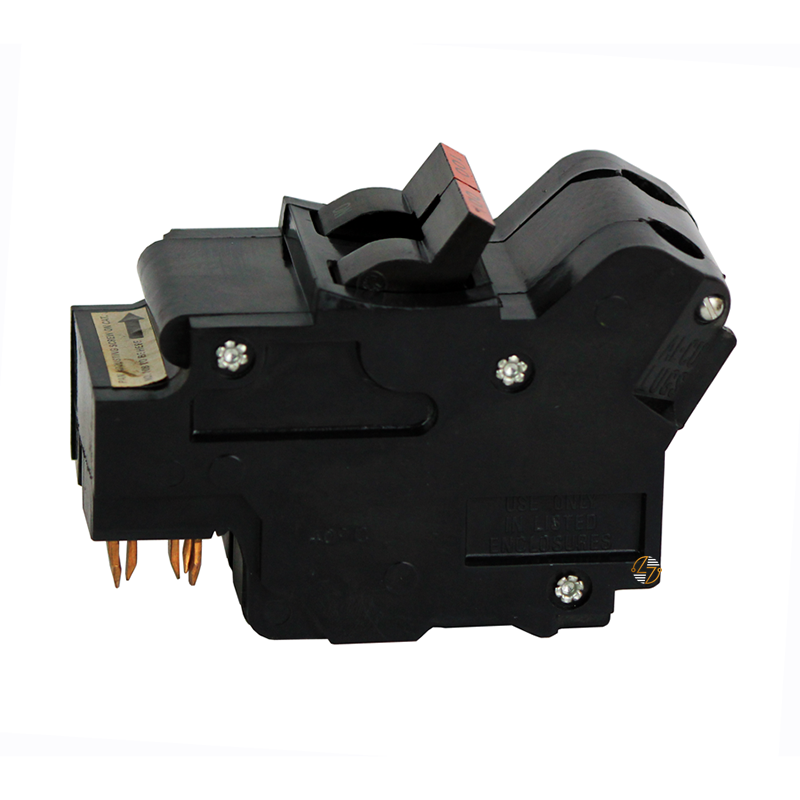

NA2P70 - 70Amp Circuit Breaker

NA2P70 - 70Amp Circuit Breaker

The NA2P70 70 amp double pole circuit breaker provides solid, everyday protection for 120/240V electrical systems. It’s designed to trip when a circuit becomes overloaded or experiences a short circuit, helping protect wiring and connected equipment from damage. With its two-pole design, this breaker controls both hot legs of a 120/240VAC circuit, making it a practical solution for larger loads such as HVAC units, water heaters, and subpanels. The 10k AIC rating allows it to safely interrupt higher fault currents commonly found in residential and light commercial applications. Its stab-on style connection fits securely into compatible panels and helps make installation more efficient.

Key Features and Benefits

• 70 Amp Rating: Provides 70A overcurrent protection for higher-demand circuits.
• Double Pole Design: Protects both legs of a 120/240VAC system.
• Thermal Magnetic Operation: Trips on sustained overloads and instant short circuits.
• 10,000 AIC Rating: Suitable for systems with moderate to high available fault current.
• Stab-On Mounting: Designed for a secure fit in compatible load centers and panelboards.

Technical Specifications

• Model: NA2P70
• Amperage: 70 Amps
• Poles: 2
• Voltage: 120/240VAC
• Interrupting Capacity: 10k AIC
• Frame Type: NA
• Dimensions: 2.00" W x 3.38" L x 2.31" D
• Weight: 2.50 lbs

Material Compliance and Certifications

• Manufactured with durable components intended for long service life, the NA2P70 meets established electrical safety and performance standards for circuit protection devices.

Where It Works Best

• This 70 amp breaker is commonly used in residential breaker panels, commercial panelboards, and light industrial setups where 120/240V service is required. It’s a good fit for protecting subpanels, large appliances, shop equipment, and other circuits that draw up to 70 amps and require dependable two-pole protection.
