FEDERAL PACIFIC
NA2P100 - 100Amp Circuit Breaker
NA2P100 - 100Amp Circuit Breaker
Couldn't load pickup availability

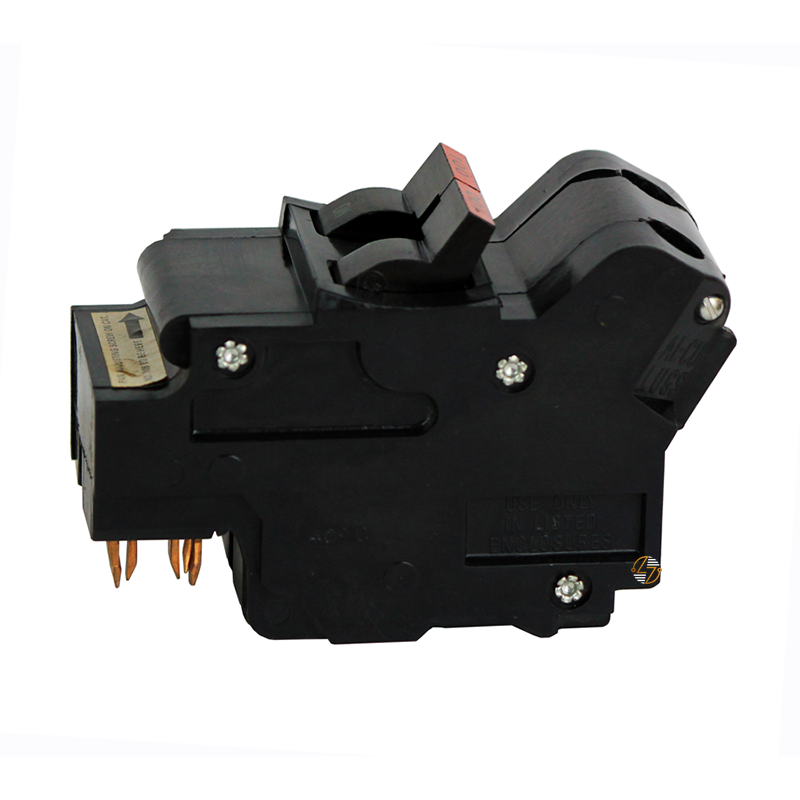

NA2P100 - 100Amp Circuit Breaker
Need an NA2P100 circuit breaker for an existing installation? This new aftermarket replacement fits applications using the NA2P100 configuration. This 2-pole, 100 Amp thermal magnetic breaker has a Stab-On connection and is rated for 120/240VAC with a 10 kA AIC rating.
Getting the right replacement breaker isn't just about matching the amperage. The connection, physical size, number of poles, voltage, and interrupting rating all matter. The NA2P100 measures about 4.25 inches high, 2 inches wide, and 2.31 inches deep, so that you can compare it with your existing breaker and equipment before installation. It's a straightforward replacement option built to last in applications that call for these specifications.
Key Features and Benefits
- 100 Amp, 2-pole breaker for applications requiring the NA2P100 configuration
- Stab-On design for the appropriate existing connection
- Rated 120/240VAC
- 10 kAIC at 120/240VAC
- Thermal magnetic circuit breaker design
- New aftermarket replacement made to fit the existing NA2P100 location
- Measures approximately 4.25" H × 2.0" W × 2.31" D
Technical Specifications
-
Part Number: NA2P100
-
Type: NA
-
Amperage: 100 Amps
-
Poles: 2
-
Voltage: 120/240VAC
-
A.I.C. Rating: 10k @ 120/240VAC
-
Connection: Stab-On
-
Breaker Type: Thermal Magnetic
-
Height: 4.25 in.
-
Width: 2.0 in.
-
Depth: 2.31 in.
- Ship Weight: 2.5 lbs.
-
Offering: New aftermarket replacement
Material Compliance and Certifications
The supplied specifications did not include specific material compliance information or certification details for this breaker. Check the markings on the supplied product and confirm that its ratings and approvals meet the requirements of your equipment, installation, and applicable electrical codes.
Where It Works Best
The NA2P100 is intended for existing electrical equipment that requires this particular breaker configuration. It's a practical choice when replacing an existing NA2P100, and you need to match its 100 Amp rating, two-pole arrangement, Stab-On connection, physical dimensions, and 120/240VAC rating.
Before installing, compare the replacement breaker with the existing unit and equipment requirements. Check the part number, connection style, dimensions, poles, amperage, voltage, and AIC rating—not just one or two specifications. If there's any uncertainty about compatibility or installation, have a qualified electrical professional verify the application.
