FEDERAL PACIFIC
NA230 - 30Amp Circuit Breaker
NA230 - 30Amp Circuit Breaker
Couldn't load pickup availability
NA230 - 30Amp Circuit Breaker

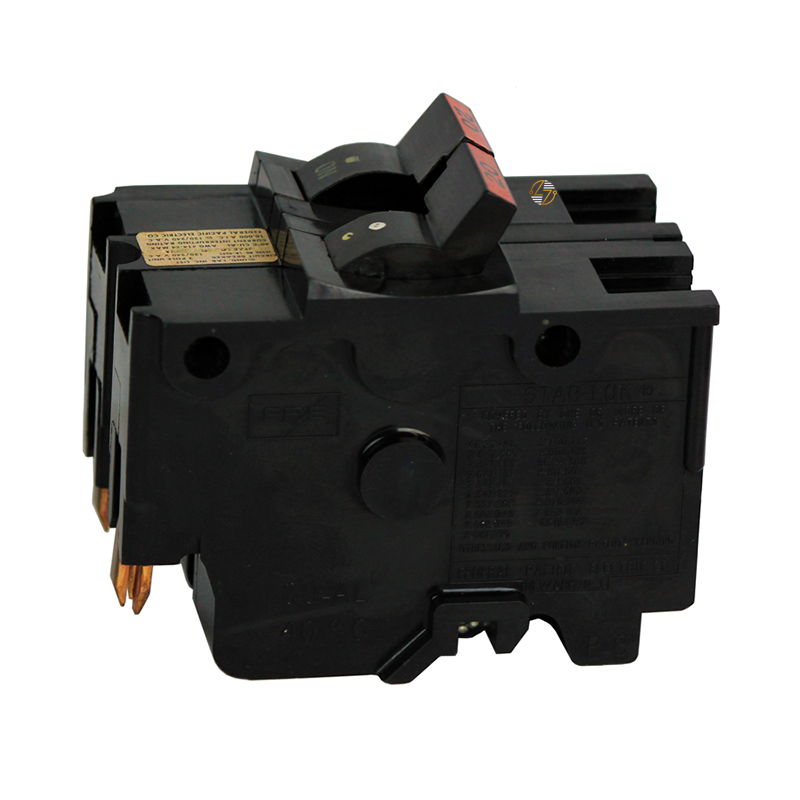

The NA230 is a 30-amp, 2-pole thermal-magnetic circuit breaker with a Stab-On connection. It is rated 10 kA AIC at 120/240VAC and measures approximately 3.38" high x 2.0" wide x 2.31" deep.
If you're replacing an existing NA230, the New option is an aftermarket breaker made specifically to fit the same location. It is designed around the original NA230 form, fit, and function, making it useful for repairs and maintenance of compatible legacy electrical equipment.
This breaker gives you the specifications needed for an NA230 application without changing the existing breaker setup. Built to last, it's made for applications where the correct size, connection style, amperage, and pole configuration matter.
Key Features and Benefits
- 30 amp, 2-pole configuration
- Stab-On connection
- Thermal magnetic trip
- Rated 10 kA at 120/240VAC
- Type NA
- Fits the NA230 breaker location
- New aftermarket replacement
- Built to last for compatible applications
Technical Specifications
-
Part Number: NA230
-
Type: NA
-
Amperage: 30 Amps
-
Poles: 2
-
Voltage: 120/240VAC
-
AIC Rating: 10kA
-
Trip Type: Thermal Magnetic
-
Connection: Stab-On
-
Height: 3.38 in.
-
Width: 2.0 in.
-
Depth: 2.31 in.
- Ship Weight: 2.5 lbs.
Material Compliance and Certifications
The available product specifications did not include certification and material compliance information. Check the product labeling and documentation for any certification or compliance requirements that apply to your installation.
Where It Works Best
The NA230 is intended for compatible electrical equipment that requires a 30 amp, 2-pole Stab-On breaker with the same NA230 configuration. It's a good fit for maintenance and replacement work where the existing equipment needs to stay in service with the correct breaker type.
Always confirm the part number, amperage, voltage, number of poles, AIC rating, connection style, and dimensions before installation. A qualified electrician should verify final compatibility with the equipment and applicable electrical codes.
