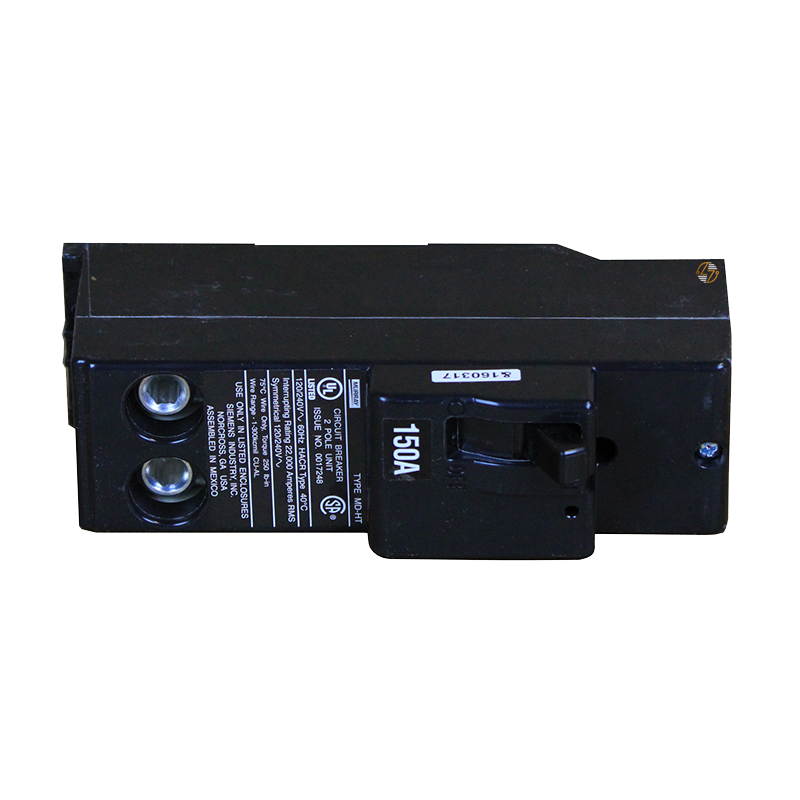

MPD2150KH - 150 Amp Circuit Breaker

MPD2150KH - 150 Amp Circuit Breaker

Choosing the right breaker for your existing equipment means looking beyond amperage alone. The MPD2150KH is a 150-amp, 2-pole Type MD-HT circuit breaker rated for 120/240V and configured as a non-reversible branch main breaker for compatible load center main and feeder applications. Manufacturer data identifies the MPD2150KH as part of its low-voltage residential circuit breaker offering. For legacy equipment, details such as the MD-HT type, 150A rating, two-pole configuration, 120/240V rating, physical fit, and interrupting capacity all matter when determining form, fit, and functional replacement. These breakers are built to last, but compatibility comes first—match the complete specification to the equipment rather than relying on amperage or catalog-number similarity alone.

Key Features and Benefits

• 150A current rating: Provides the specified amperage for existing equipment requiring a 150-amp circuit breaker.
• 2-pole configuration: Matches electrical equipment designed around this two-pole breaker arrangement.
• 120/240V rating: Gives technicians a clear voltage specification to verify against the electrical system.
• Type MD-HT: The exact type designation is an important consideration when identifying a form, fit, and functional replacement.
• Non-reversible branch main configuration: Manufacturer information identifies the MPD2150KH for compatible load center main and feeder circuit-protection applications.

Technical Specifications

• Catalog Number / MFN: MPD2150KH

• Article Number: US2:MPD2150KH

• Product Type: Circuit Breaker

• Breaker Type: MD-HT

• Configuration: Branch Main Breaker, Non-Reversible

• Amperage Rating: 150 A

• Number of Poles: 2

• Voltage Rating: 120/240V

• Interrupting Rating: Manufacturer product title states 22K; detailed technical overview states 10 K

• Net Weight: 2.315 lb

• UPC: 040892006438

• Commodity Code: 8536200020

• Country of Origin: Mexico

• Dangerous Goods Classification: No


Material Compliance and Certifications

The supplied manufacturer data lists RoHS substance-restriction compliance information and the SCIP number as not available. REACH Article 33 information is referenced, but the provided specifications include no specific REACH compliance determination. WEEE take-back obligations are listed as No.

Where It Works Best

For existing or legacy electrical equipment requiring a 150A, 2-pole, 120/240V Type MD-HT non-reversible branch main circuit breaker, the MPD2150KH provides specific characteristics to compare with the breaker being replaced. Manufacturer information associates this configuration with compatible load center main and feeder applications.
