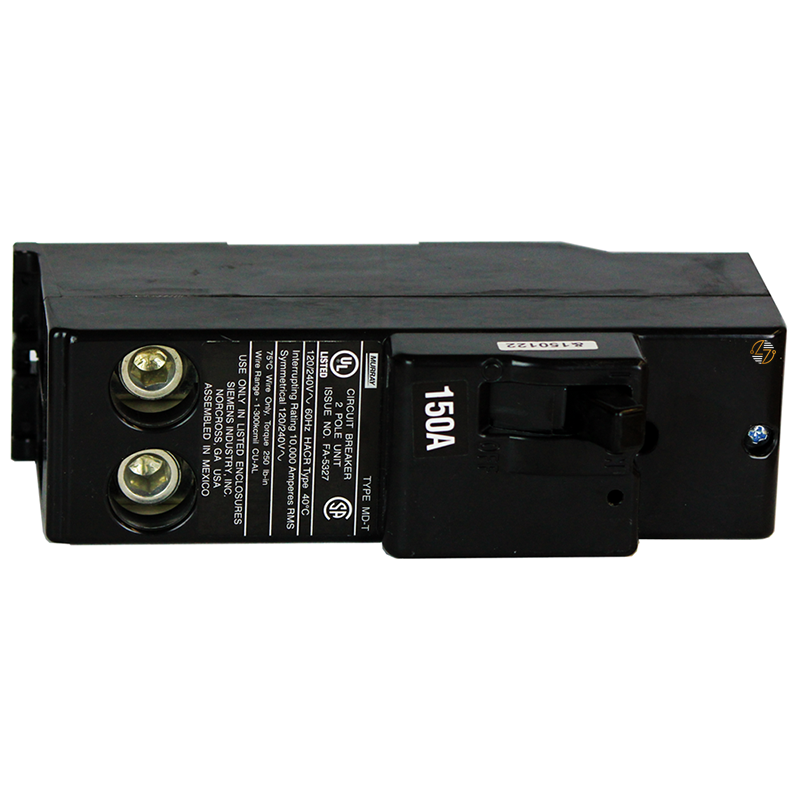

MPD2150 - 150 Amp Circuit Breaker

MPD2150 - 150 Amp Circuit Breaker

When you’re replacing a main breaker in existing electrical equipment, the small details can make the difference between the correct match and a breaker that won’t work for the application. The MPD2150 is a 150-amp, 2-pole Type MD-T circuit breaker rated for 120/240V with a 10 kA interrupting rating. Manufacturer information identifies it as a non-reversible branch main breaker for load center mains, feeders, and related circuit-protection equipment.

Key Features and Benefits

• 150A current rating: Matches existing equipment and circuits specifically requiring a 150-amp breaker.
• 2-pole configuration: Provides the specified two-pole arrangement for compatible electrical equipment.
• 120/240V rating: Clearly identifies the voltage requirement to check against the electrical system.
• Type MD-T: The exact breaker type is an important compatibility point when identifying a form, fit, and functional replacement.
• Non-reversible configuration: Manufacturer data identifies the MPD2150 as a non-reversible branch main breaker.
• Main and feeder applications: Designed for compatible load center main and feeder circuit-protection applications.

Technical Specifications

• Catalog Number / MFN: MPD2150

• Article Number: US2:MPD2150

• Product Type: Circuit Breaker

• Breaker Type: MD-T

• Configuration: Branch Main Breaker, Non-Reversible

• Amperage Rating: 150 A

• Number of Poles: 2

• Voltage Rating: 120/240V

• Interrupting Rating: 10 kA

• Net Weight: 1.411 lb

• UPC: 040892006421

• Commodity Code: 8536200020

• Country of Origin: Mexico

• Dangerous Goods Classification: No


Material Compliance and Certifications

The supplied manufacturer information states that RoHS substance-restriction compliance information is not available for the MPD2150. The SCIP number is also listed as not available. The manufacturer data references REACH Article 33 information, but it includes no specific compliance determination.

Where It Works Best

The MPD2150 is intended for evaluation in existing and legacy electrical equipment that specifically requires a 150A, 2-pole, 120/240V Type MD-T non-reversible branch main circuit breaker with a 10 kA interrupting rating. Manufacturer information associates this breaker configuration with load center mains and feeders, making those specifications particularly important when identifying the correct functional replacement.
