MGL36800 - 800 Amp Circuit Breaker

MGL36800 - 800 Amp Circuit Breaker

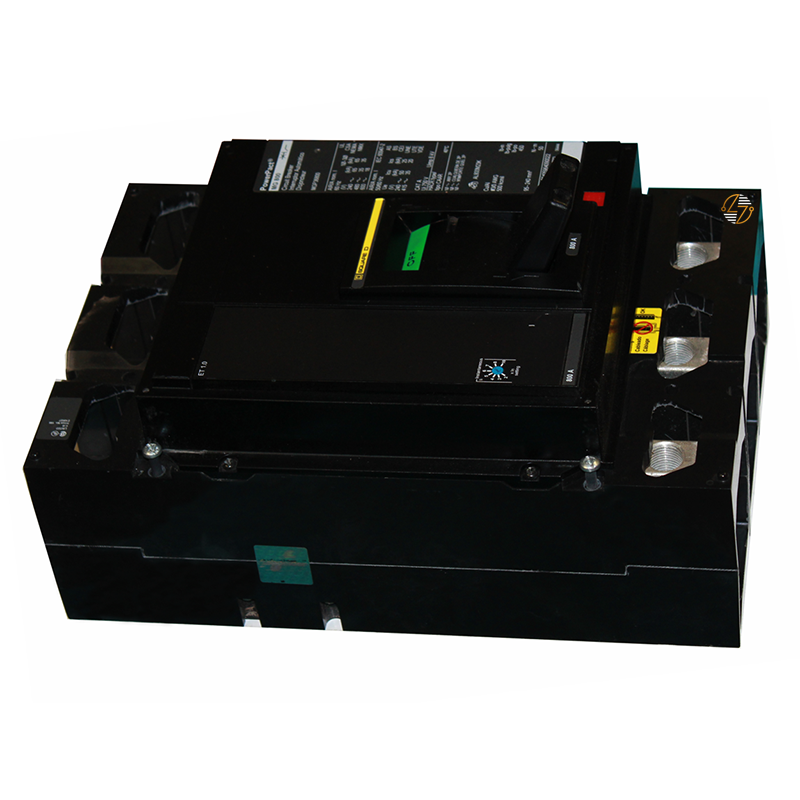

The MGL36800 is an 800 amp, 3-pole circuit breaker built to meet specific electrical and physical requirements when matching equipment to your existing distribution system. For replacement work, those details matter as much as the catalog number: pole count, voltage, interrupting capacity, trip configuration, terminals, conductor requirements, and physical size must match the application.

Key Features and Benefits

• 800 Amp, 3-Pole Configuration: Rated at 800A with three poles for compatible electrical distribution applications.
• ET 1.0 Electronic Trip Unit: Electronic basic trip technology provides a clearly specified trip configuration for accurate replacement matching.
• Long-Time Pickup Range: The long-time pickup adjustment range is 300–800A.
• Specified Magnetic Tripping Current: Manufacturer data lists a 1,600–8,000A magnetic tripping current.
• Line and Load Lugs Included: Lug connections are provided on both sides, removing ambiguity about the supplied terminal configuration.
• AL800M23K Terminals: Accepts the specified 3 x 3/0 AWG through 3 x 500 kcmil aluminum or copper conductors.
• 80% Continuous Current Rating: Clearly identified in the manufacturer's specifications.
• Integral Push-to-Trip Function: The breaker cover includes a push-to-trip button for manual tripping.

Technical Specifications

• Catalog Number: MGL36800

• Product Type: Circuit Breaker

• Product Family: PowerPact M

• Device Application: Distribution

• Line Rated Current: 800A

• Number of Poles: 3

• Rated Operational Voltage: 600VAC, 50/60Hz, UL 489

• Network Frequency: 50/60Hz

• Breaking Capacity Code: G

• UL 489 AIR: 65kA at 240VAC, 50/60Hz

• UL 489 AIR: 35kA at 480VAC, 50/60Hz

• UL 489 AIR: 18kA at 600VAC, 50/60Hz

• IEC 60947-2 Icu: 50kA at 240VAC, 50/60Hz

• IEC 60947-2 Icu: 35kA at 380/415VAC, 50/60Hz

• IEC 60947-2 Ics: 25kA at 240VAC, 50/60Hz

• IEC 60947-2 Ics: 20kA at 380/415VAC, 50/60Hz

• Trip Unit Technology: Electronic, basic, ET 1.0

• Trip Unit Name: ET 1.0

• Long-Time Pickup Adjustment Range: 300–800A

• Magnetic Tripping Current: 1,600–8,000A

• Continuous Current Rating: 80%

• Rated Insulation Voltage: 750V, IEC 60947-2

• Line-Side Electrical Connection: Lugs

• Load-Side Electrical Connection: Lugs

• Height: 12.86 in. (326.64 mm)

• Width: 8.27 in. (210.06 mm)

• Depth: 8.05 in. (204.47 mm)

• Net Weight: 29 lb. (13.2 kg)

• Circuit Breaker Application: HACR-rated


Material Compliance and Certifications

The MGL36800 has documented standards and certifications that you can check against project, equipment, and installation requirements, rather than relying on assumptions.

• Product Certifications: UL, CSA, NOM
• Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Quality Label: CE
• HACR Rated: Yes
• IP Degree of Protection: IP40

Where It Works Best

The MGL36800 800A circuit breaker suits compatible electrical distribution equipment that calls for an 800-amp, 3-pole, 600VAC breaker with an ET 1.0 electronic trip unit and an 80% continuous current rating. It can be particularly useful when replacing an existing breaker where maintaining the correct electrical ratings, trip characteristics, lug arrangement, conductor capacity, and physical footprint is essential.
