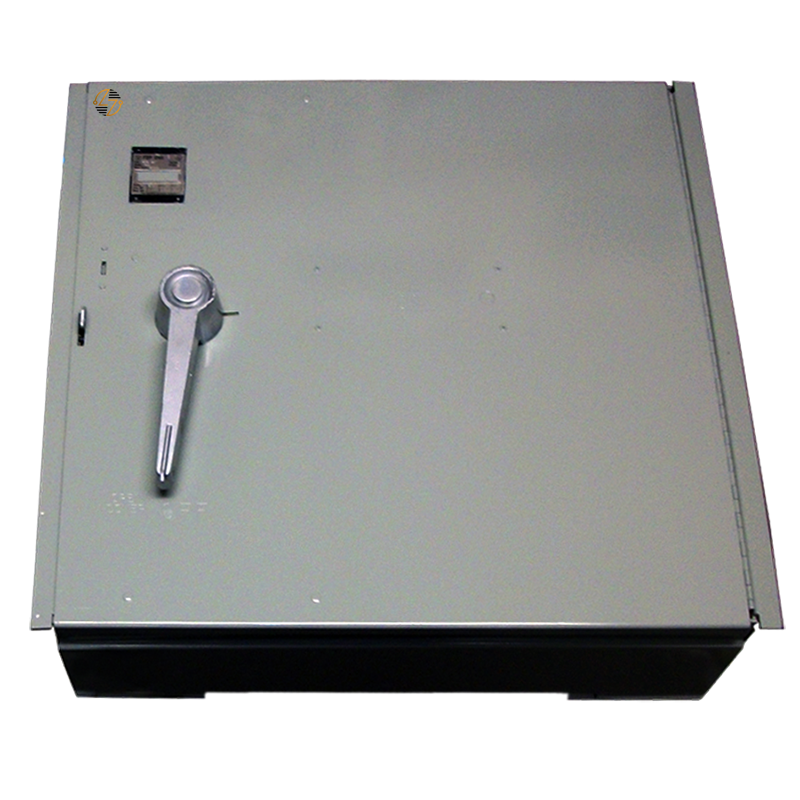

M50ASR368 - 1200 Amp Panel Switch

M50ASR368 - 1200 Amp Panel Switch

The M50ASR368 is a 3-pole, 1200-amp fusible panel switch designed for you to use in compatible Type M50A panel systems. Rated for 600 volts AC, this bolt-in switch provides a means of disconnect for high-current electrical distribution applications and is built to accept Class L fuses for overcurrent protection. Its single-unit construction makes it a practical form, fit, and functional replacement when maintaining existing commercial or industrial electrical equipment. Built to last, the M50ASR368 is intended for applications where matching the original equipment ratings and configuration is important. Whether you use it during scheduled maintenance or equipment replacement, selecting a panel switch with the proper voltage, amperage, pole configuration, and mounting style helps you maintain compatibility with the existing electrical system. Before installation, always verify that the ratings and dimensions match the equipment manufacturer's requirements.

Key Features and Benefits

• Type M50A bolt-in panel switch.
• 3-pole design for three-phase electrical systems.
• Rated for 1200 amps.
• Rated for 600 VAC.
• Fusible, single-unit construction.
• Accepts Class L fuses.
• Designed as a form, fit, and functional replacement for compatible equipment.
• Built to last for demanding commercial and industrial applications.


Technical Specifications

• Part Number: M50ASR368

• Product Type: Panel Switch

• Type: M50A

• Poles: 3

• Current Rating: 1200 Amps

• Voltage Rating: 600 VAC

• Configuration: Fusible Single Unit

• Fuse Type: Class L

• Mounting: Bolt-In

• Dimensions:
  • Height: 23.5 in.
  • Width: 23.5 in.
  • Depth: 7.0 in.

Material Compliance and Certifications

• Rated for 600 VAC applications. Designed for use with Class L fuses.
• Install in accordance with the National Electrical Code (NEC) and applicable local electrical codes. Certification markings and compliance information should be confirmed from the product nameplate when required for a specific installation.


Where It Works Best

• The M50ASR368 is commonly used in commercial and industrial electrical distribution systems that require a 1200-amp, 3-pole fusible panel switch. Typical applications include switchboards, power distribution equipment, manufacturing facilities, processing plants, institutional buildings, and other installations where maintaining compatibility with existing equipment is the primary consideration.
