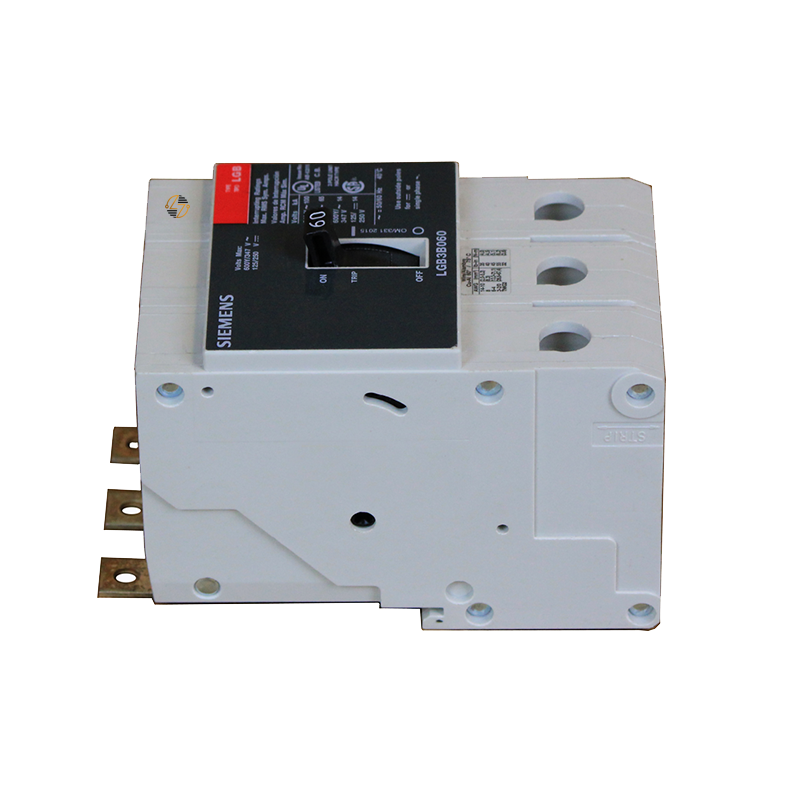

LGB3B060B - 60Amp Circuit Breaker

LGB3B060B - 60Amp Circuit Breaker

Working on an existing panelboard often means finding a breaker that matches a very specific set of requirements. The LGB3B060B is a 60A, 3-pole LGB G-frame circuit breaker designed for compatible low-voltage panelboard applications. It uses a thermal-magnetic trip unit and is rated 65 kA at 480Y/277V and 14 kA at 600Y/347V. When you're identifying a functional replacement, the 60A rating is only one part of the equation. Pole count, frame, interrupting ratings, lug configuration, conductor range, and physical dimensions should all correspond with the equipment. Checking those details together helps determine whether the LGB3B060B is the right form, fit, and functional match for the panelboard you're servicing.

Key Features and Benefits

• 60A, 3-pole configuration for compatible low-voltage panelboard applications
• LGB G-frame design provides a specific frame reference for matching existing electrical equipment
• Thermal-magnetic trip unit provides the specified overload and short-circuit protection
• UL Listed LGB frame
• Equipped with TC1GG20 load-side lugs only
• Accepts 8–1/0 AWG copper or aluminum (Cu/Al) conductors
• Suitable for maintenance and functional replacement when the existing equipment requires the LGB3B060B configuration

Technical Specifications

• Catalog Number: LGB3B060B

• Article Number: US2\:LGB3B060B

• Product Type: Low-Voltage Panelboard-Mount Circuit Breaker

• Frame: LGB / G Frame

• Ampere Rating: 60A

• Number of Poles: 3

• Trip Type: Thermal-Magnetic

• Interrupting Rating at 480Y/277V: 65 kA

• Interrupting Rating at 600Y/347V: 14 kA

• Terminal Arrangement: Load-Side Lugs Only

• Load Lug Type: TC1GG20

• Wire Range: 8–1/0 AWG

• Conductor Compatibility: Copper / Aluminum (Cu/Al)

• Dimensions: 3"W x 5.4"H x 2.8"D

• Net Weight: 2.515 lb

• Country of Origin: Mexico

• UPC: 887621220297

• Commodity Code: 8536200020

• Export Classification: ECCN EAR99 / AL N

• Dangerous Goods: No


Material Compliance and Certifications

Manufacturer specifications identify the LGB frame as UL Listed. The environmental information supplied for the LGB3B060B also references WEEE (2012/19/EU) take-back obligations and includes information associated with REACH Article 33.

Where It Works Best

The LGB3B060B 60A 3-pole circuit breaker is particularly useful for maintaining existing and legacy low-voltage panelboards that call for this specific LGB G-frame configuration. In these applications, compatibility comes from matching the complete breaker specification—not simply locating another 60A, three-pole device.
