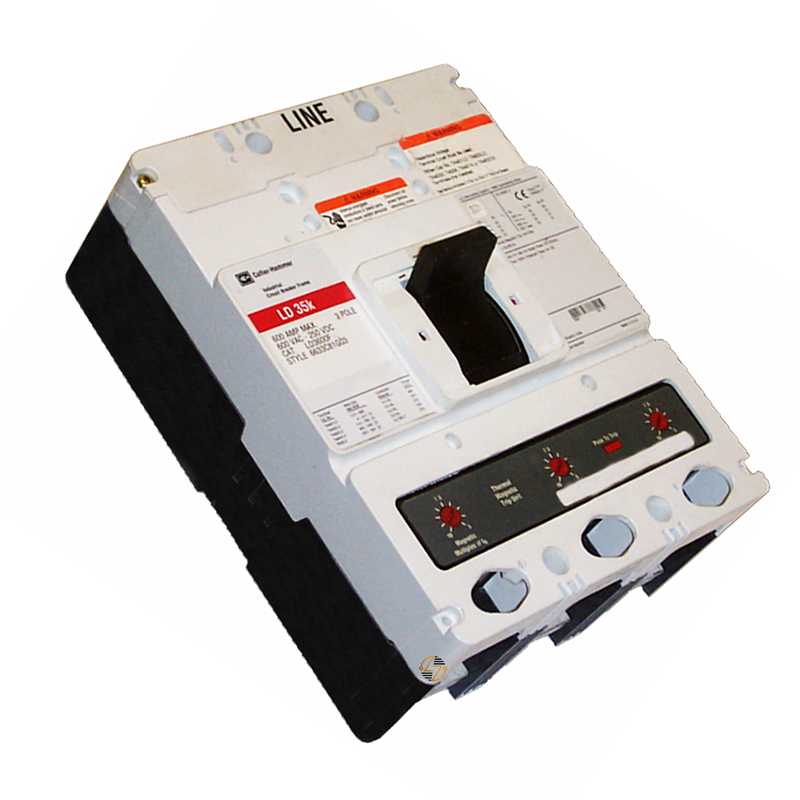

LDB3500W - 500Amp Circuit Breaker

LDB3500W - 500Amp Circuit Breaker

One thing you’ll want to notice right away about the LDB3500W is that it’s supplied without terminals. That may sound like a small detail, but when you’re matching a circuit breaker to existing equipment, the connection arrangement belongs on the checklist along with amperage, poles, frame, and trip type. Those clearly defined specifications make it easier to compare the LDB3500W with the breaker and equipment already in service. Rather than relying on the catalog number alone, verify the complete set of electrical, physical, and connection requirements. When correctly matched, installed, and maintained within its specified application, the LDB3500W is built to last.

Key Features and Benefits

• 500A amperage rating: Gives you a clear current rating to compare against the requirements of the existing equipment.
• Three-pole configuration: An essential identification point for compatible three-pole applications.
• Series C LDB design: The series and breaker type provide useful information when matching an existing or legacy breaker installation.
• L frame: Frame designation matters for both physical and functional compatibility, so it should be checked rather than assumed.
• T186 trip type: Another specific part of the LDB3500W configuration to compare with the breaker being replaced.
• Supplied without terminals: An important distinction to know before installation, especially when checking the connection requirements of existing equipment.

Technical Specifications

• Catalog Number: LDB3500W

• UPC: 786679148273

• Manufacturer: Eaton

• Product Name: Series C Complete Molded Case Circuit Breaker

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: LDB

• Circuit Breaker Frame Type: Complete Breaker

• Frame: L

• Amperage Rating: 500 A

• Number of Poles: 3

• Trip Type: T186

• Frequency Rating: 50–60 Hz

• Interrupt Rating at 240VAC: 65 kAIC

• Interrupt Rating at 480VAC: 35 kAIC

• Terminals: Without Terminals

• Product Height: 8.25 in.

• Product Width: 8.25 in.

• Product Length/Depth: 8.25 in.

• Product Weight: 20 lb

• Certification: UL 489


Material Compliance and Certifications

The supplied specifications for the LDB3500W identify UL 489 certification.

Where It Works Best

The LDB3500W 500A 3-pole circuit breaker is best suited to compatible existing and legacy electrical equipment that calls for a Series C LDB molded case circuit breaker with an L frame and T186 trip type.
