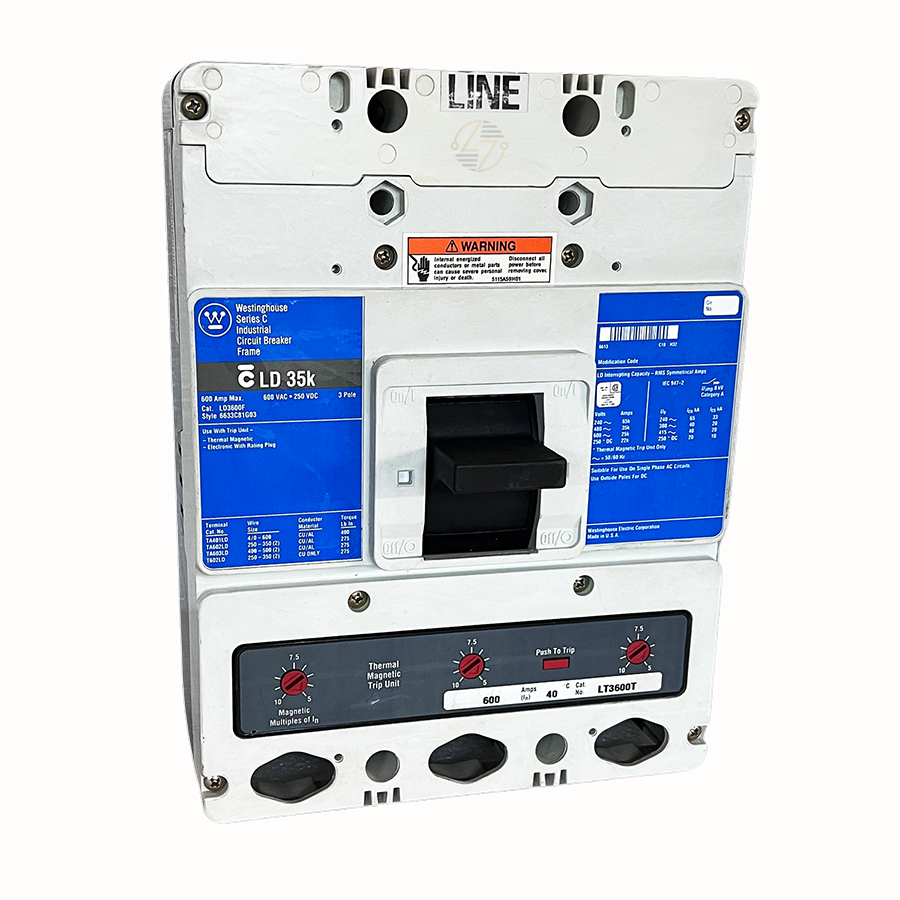

LD3600 - 600Amp *Older Style Blue Label*

LD3600 - 600Amp *Older Style Blue Label*

The Westinghouse LD3600 Molded Case Circuit Breaker is a high-performance, thermal-magnetic protection device designed for industrial and commercial applications requiring robust circuit protection. Manufactured by Westinghouse, later acquired by Eaton, this breaker is part of the Series C L-frame family, known for its durability and reliability in demanding environments. The "Blue Label" designation indicates an earlier production model, still widely respected for its quality and performance.

Key Features and Benefits

• High Interrupting Capacity (AIC): Offers 65 kAIC at 240 VAC, 35 kAIC at 480 VAC, and 25 kAIC at 600 VAC, ensuring superior protection against short circuits and overloads.
• Thermal-Magnetic Protection: Equipped with fixed thermal and magnetic trip units, providing reliable long-time and instantaneous protection.
• Interchangeable Trip Units: Allows for customization to meet specific application needs, enhancing flexibility.
• Feed-Thru Configuration: Facilitates easy installation and maintenance, suitable for various panel types.
• UL 489 Listed & CSA Certified: Complies with stringent safety standards, ensuring reliability and safety in operation.

Technical Specifications

• Amperage: 600 Amps

• Voltage Rating: 600 VAC, 250 VDC

• Poles: 3

• Frame Type: L-Frame

• Trip Type: Fixed Thermal, Fixed Magnetic
• Mounting Type: Bolt-On
• Dimensions: 8.25" (W) x 10.75" (H) x 4.06" (D)
• Weight: Approximately 20 lbs
• Terminal Material: Aluminum
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40°C

Material Compliance and Certifications

• UL 489 Listed: Meets the Underwriters Laboratories standard for molded case circuit breakers, ensuring safety and performance.
• CSA Certified: Complies with Canadian Standards Association requirements, suitable for use in Canada.
• IEC Rated: Adheres to International Electrotechnical Commission standards, facilitating global compatibility.
• RoHS Compliant: Free from hazardous substances, aligning with environmental safety regulations.

Suitability

• Industrial Applications: Protecting machinery and equipment in manufacturing plants.
• Commercial Installations: Ensuring safety in commercial buildings and facilities.
• Motor Control Centers: Providing reliable protection in motor control systems.
• Panelboards and Switchboards: Serving as a dependable circuit protection solution.

Choose the Westinghouse LD3600 Molded Case Circuit Breaker for unmatched reliability and protection in demanding electrical systems.
