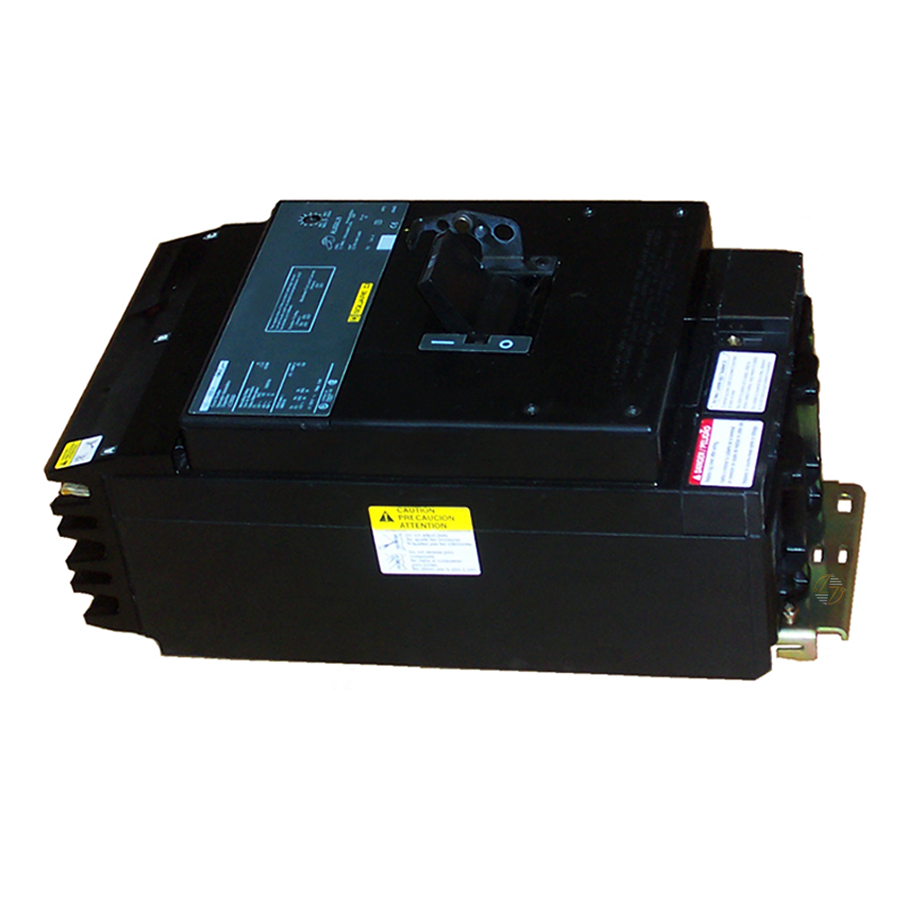

LC36500 - 500 Amp Circuit Breaker

LC36500 - 500 Amp Circuit Breaker

The LC36500 is a 500-amp, 600V molded case circuit breaker for electrical equipment that calls for this specific catalog number and rating. If you're replacing a breaker that's already in service, start with the basics: LC36500, 500A, and 600V.

Key Features and Benefits

• 500A rated current
• 600V rated voltage
• Molded case circuit breaker construction
• Catalog number LC36500 for accurate identification and replacement matching
• A practical choice for compatible existing and legacy electrical equipment


Technical Specifications

• Catalog Number: LC36500

• Product Type: Molded Case Circuit Breaker

• Amperage: 500A

• Voltage: 600V

• Country of Origin: Mexico


Material Compliance and Certifications

No specific UL, CSA, IEC, RoHS, REACH, or other certification or material-compliance information was provided for the LCD. Don't assume these details simply because the breaker carries a particular catalog number or electrical rating.

Where It Works Best

The LC36500 is a sensible fit for existing or legacy equipment that specifically requires a 500A, 600V molded case circuit breaker with the appropriate LC36500 configuration.

Before treating it as a replacement, compare it with the breaker currently installed. The 500A and 600V ratings need to match the application, but there's more to check. Confirm the number of poles, required AIC at the system voltage, trip characteristics, physical dimensions, mounting arrangement, and terminal configuration.
