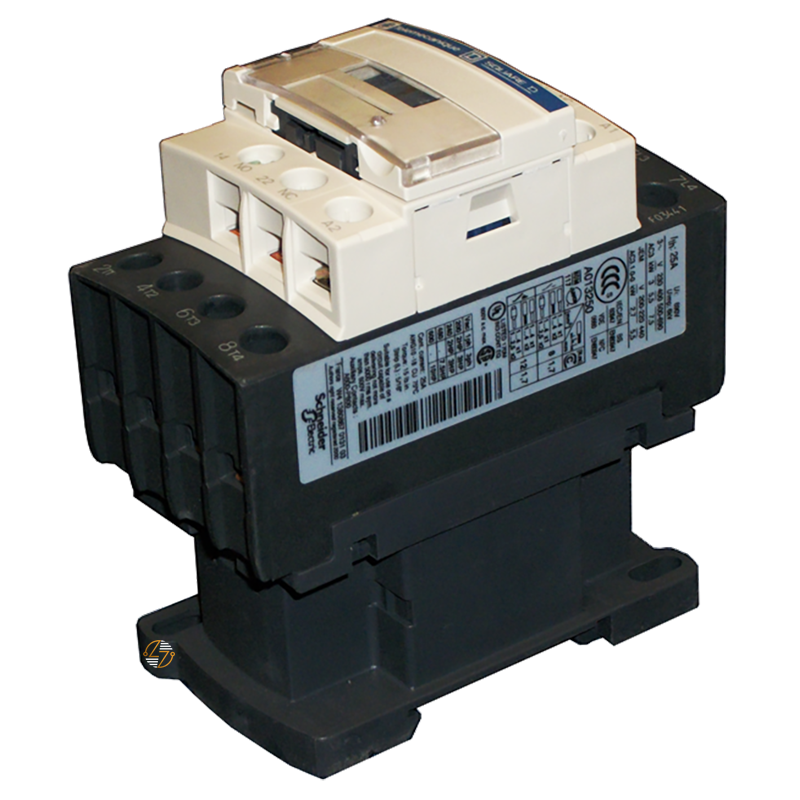

The LC1DT25F7 is a TeSys Deca contactor built for resistive and non-inductive loads, with four normally open power contacts and a 25A AC-1 rating at up to 440VAC at temperatures below 60°C. It uses a 110VAC 50/60Hz coil and already includes 1NO + 1NC auxiliary contacts. That's useful when you're trying to match a contact already in a panel—you can compare the coil, contacts, terminals, and footprint without relying on the catalog number alone. Connections are made through screw-clamp terminals, and the contactor can be mounted on a rail or plate.

Key Features and Benefits

• 25A at ≤440VAC AC-1 rating for resistive/non-inductive loads at temperatures below 60°C
• Four poles with 4NO power contacts
• 110VAC 50/60Hz coil
• Built-in 1NO + 1NC auxiliary contacts
• NC auxiliary contact is a mirror contact conforming to IEC 60947-4-1
• Mechanically linked auxiliary contacts conform to IEC 60947-5-1
• Screw-clamp terminals for power and control circuits
• Mounts to a rail or plate
• Compact 45 mm width makes physical comparison with an existing contactor easier
• Rated for operating rates up to 3,600 cycles per hour at 60°C


Technical Specifications

• Catalog Number: LC1DT25F7

• Product Type: Contactor

• Range: TeSys Deca

• Device Short Name: LC1D

• Application: Resistive load

• Utilization Category: AC-1

• Poles: 4

• Power Contacts: 4NO

• Rated Operational Current: 25A at <60°C and ≤440VAC, AC-1

• Power Circuit Operational Voltage: ≤690VAC at 25–400Hz; ≤300VDC

• Control Voltage: 110VAC, 50/60Hz

• Auxiliary Contacts: 1NO + 1NC

• Conventional Free-Air Thermal Current: 25A power circuit; 10A signaling circuit at 60°C

• Rated Breaking Capacity: 250A at 440V per IEC 60947

• Impulse Withstand Voltage: 6kV per IEC 60947

• Overvoltage Category: III

• Pollution Degree: 3

• Maximum Operating Rate: 3,600 cycles/hour at 60°C

• Connections: Screw-clamp terminals

• Mounting: Rail or plate

• Front-Face Protection: IP20 per IEC 60529

• Ambient Temperature: -40°C to 60°C; 60°C to 70°C with derating

• Operating Altitude: 0–3,000 m

• Dimensions: 85 mm H × 45 mm W × 92 mm D

• Net Weight: 0.365 kg


Material Compliance and Certifications

Plenty of documented compliance information is available for the LC1DT25F7, so there's no need to make assumptions. The manufacturer identifies the product as Green Premium compliant, including RoHS and REACH compliance.

Where It Works Best

The LC1DT25F7 makes sense for equipment that calls for a 4-pole, 4NO AC-1 contactor handling resistive or other non-inductive loads within its stated ratings. The 110VAC coil is one of the first things worth confirming because a contactor with the right current rating but the wrong coil voltage isn't the right match.

After that, compare the contact arrangement and auxiliary contacts. This model has four normally open power contacts plus 1 NO and 1 NC auxiliary contacts. Check the screw-clamp connections as well.
