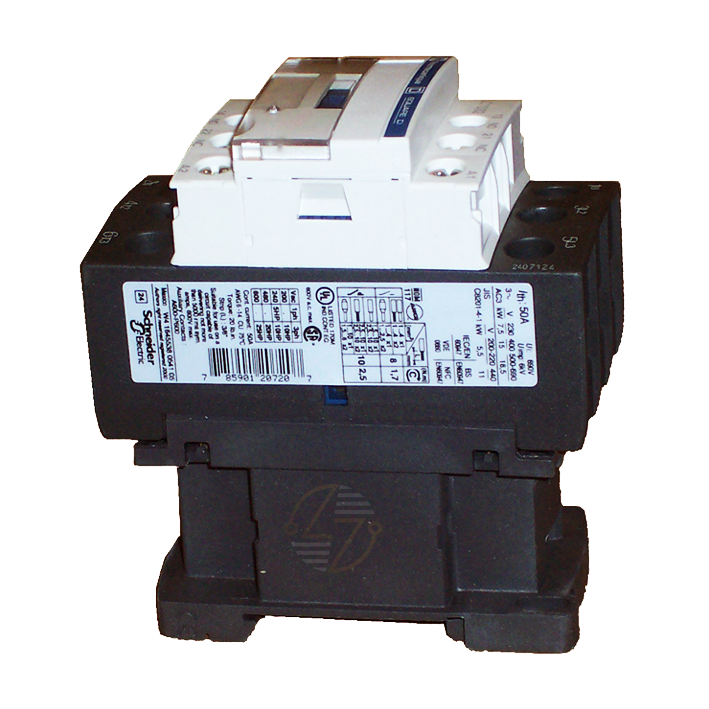

LC1D32G7 - Telemecanique Contactor

LC1D32G7  - Telemecanique Contactor

Maximize efficiency and reliability in industrial motor control with the Schneider Electric LC1D32G7 TeSys Deca 3‑pole contactor. Engineered for demanding applications—from heavy machinery and HVAC systems to production lines—this compact powerhouse delivers up to 32 A (AC‑3) at 690 V and handles motor loads up to 20 HP at 480 V (30 HP at 600 V). With a robust 100 kA SCCR rating when paired with proper fusing and a 120 V AC coil (50/60 Hz), you’re getting both performance and peace of mind in fault‑intensive environments.

Key Features and Benefits

• High‑performance switching: Rated for 32 A AC‑3 and 50 A AC‑1, perfect for inductive and resistive loads.
• Exceptional safety: Up to 100 kA SCCR with Class J/CC fuses protects systems and personnel.
• Built‑in auxiliary contacts: Includes 1 NO + 1 NC mirror‑certified, ideal for interlocking or status signaling.
• Long-lasting durability: Rated for 1.65 million electrical and 15 million mechanical operations—designed to endure.
• Space-saving footprint: At just 45 mm wide, it fits neatly into DIN‑rail or panel systems.
• Eco-aware design: Low lifecycle CO₂ footprint (147 kg equivalent) and fully recyclable packaging.

Technical Specifications

• Device Type: IEC Non‑Reversing Contactor
• Model: LC1D32G7
• Current Rating: 32 A AC‑3 / 50 A AC‑1 @ ≤ 440 V
• Voltage Rating: Up to 690 V AC (IEC); 300 V DC
• Control Coil: 120 V AC, 50/60 Hz
• Motor Capacity: 20 HP @ 480 V; 30 HP @ 600 V (3-phase)
• Auxiliary Contacts: 1 NO + 1 NC (mirror‑certified)
• Mounting: DIN rail or panel
• Dimensions: 3.3″ H × 1.8″ W × 3.6″ D
• Weight: 0.827 lb (0.375 kg)

Material Compliance and Certifications

• Global approvals: UL, CSA, IEC, CCC, EAC, UKCA, Marine, CB Scheme
• Ingress Protection: IP20 on the front face
• Environmental durability: Operational from –40 °F to +158 °F; compliant with IACS E10 and IEC 60947 Annex Q
• Flame resistance: UL 94 V‑1 rated; withstands 850 °C per IEC 60695‑2‑1

Where It Works Best

• This contactor excels in industrial automation, HVAC control, and OEM panel builds, making it a trusted choice for engineers and maintenance teams. Its compact size and high fault-rating mean it’s ideal for space-constrained switchboards or multi-contactor configurations. When uptime and safety are critical, the LC1D32G7 delivers confidence.
