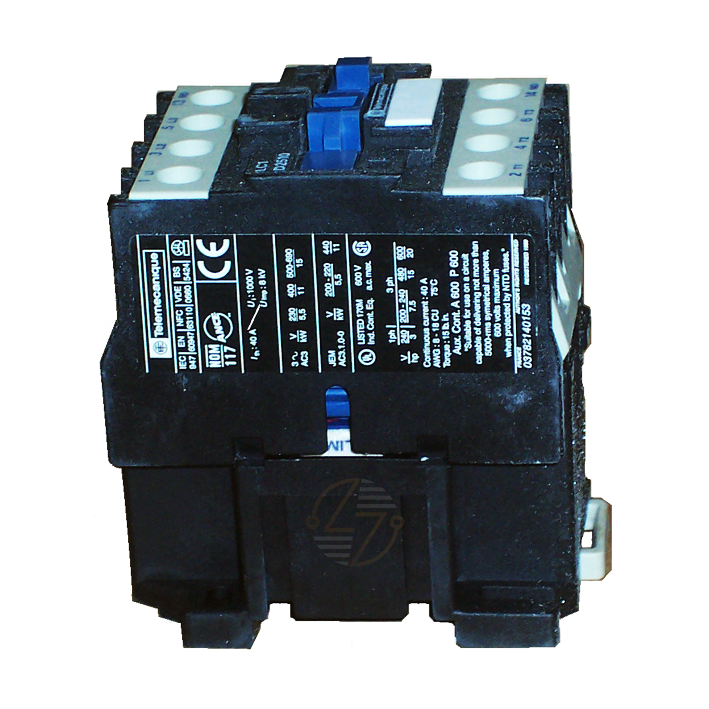

LC1D2510F7 - Telemecanique Contactor

LC1D2510F7  - Telemecanique Contactor

The Schneider Electric LC1D2510F7 TeSys D contactor delivers reliable motor control for industrial operations that demand frequent switching. Engineered to support motors up to 11 kW at 400 V AC with a robust 25 A AC‑3 rating, this 3‑pole IEC-certified device is equipped with a standard 110 V AC 50/60 Hz coil. A built-in normally-open (NO) auxiliary contact adds flexibility for integrating with start‑stop or interlock control systems. Housed in a compact, rugged casing with both DIN‑rail and panel mounting, it’s built for tight control cabinets and tough environments—perfect for conveyors, pumps, compressors, HVAC setups, and more.

Key Features and Benefits

• High‑Cycle Motor Control: Rated at 25 A AC‑3 and supporting motors up to 11 kW @ 400 V AC for reliable performance in industrial settings.
• Universal Coil Compatibility: 110 V AC coil works with 50/60 Hz, making retrofit and integration seamless.
• Built‑In Auxiliary Contact: One NO auxiliary contact simplifies control circuit design without external add-ons.
• Space‑Saving Compact Design: Slim profile ideal for crowded cabinets, yet flexibly mounts to both DIN rail and flat panels.
• Engineered Toughness: Constructed for durability in harsh working conditions, ensuring uptime and lower maintenance costs.

Technical Specifications

• Current Rating: 25 A (AC‑3)
• Motor Capacity: Up to 11 kW @ 400 V AC
• Voltage Rating: Up to 690 V AC
• Control Coil: 110 V AC, 50/60 Hz
• Number of Poles: 3
• Auxiliary Contacts: 1 × Normally Open (NO)
• Mounting Options: DIN‑Rail or Panel
• Terminal Connections: Screw‑type for secure wiring

Material Compliance and Certifications

• UL Listed: Verified for safety in North American industrial applications.
• CSA Certified: Meets Canada’s stringent electrical standards.
• CE Marked: Conforms to EU directives for global deployment.
• RoHS Compliant: Free from restricted hazardous substances, promoting environmentally responsible usage.

Suitability

• Perfect for industrial and OEM environments, the LC1D2510F7 shines in roles such as:
• Conveyor systems in manufacturing plants
• Pump and compressor control in water treatment or HVAC
• Switching operations in packaging machinery
• OEM panel builds requiring compact motor contactors
• When you want power, reliability, and flexibility—all in a compact package—the LC1D2510F7 is a top-tier choice. Its rugged design and versatile mounting simplify wiring and reduce cabinet clutter while its standard coil voltage ensures plug-and-play integration.
