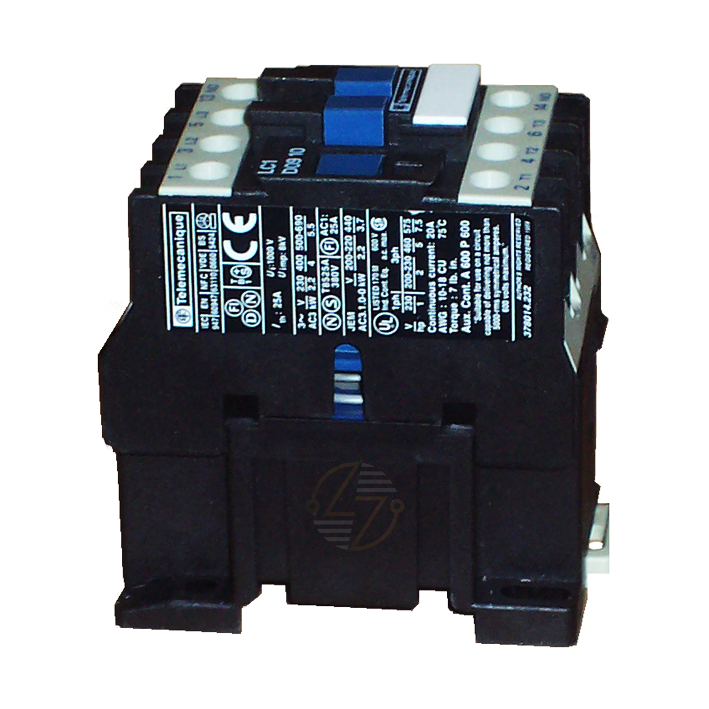

LC1D0910F7 - Telemecanique Contactor

LC1D0910F7  - Telemecanique Contactor

Engineered for industrial reliability and compact convenience, the Schneider Electric LC1D0910F7 TeSys D Contactor delivers crisp, dependable switching for your 3‑phase motor applications. Rated for 9 A in AC‑3 duty and capable of managing motors up to 4 kW at 400 V, this contactor thrives in tough environments—from conveyor lines and pump stations to HVAC systems and industrial automation. A standard 110 V AC coil ensures compatibility with common control circuits, while a built‑in 1‑NO auxiliary contact gives you extra flexibility for control or signaling tasks. Whether mounted on a DIN rail or within a compact panel, its screw‑terminal design makes installation a snap—saving you time without compromising reliability.

Key Features and Benefits

• Reliable Motor Switching: Handles up to 9 A in AC‑3 mode, ideal for motors up to 4 kW @ 400 V.
• Control System Friendly: Uses a 110 V AC coil (50/60 Hz), compatible with typical industrial controls.
• Built‑in Signaling: Includes 1 normally‑open auxiliary contact for additional logic and indication functions.
• Space‑Saving Footprint: Compact dimensions (77 × 45 × 86 mm) fit well in tight panel layouts.
• Heavy‑Duty Construction: Designed for high‑cycle durability in demanding industrial environments.
• Quick Installation: DIN‑rail or panel mounting with user‑friendly screw terminals.

Technical Specifications

• Rated Operational Current (AC‑3): 9 A
• Rated Voltage (Ue): Up to 690 V AC
• Coil Voltage: 110 V AC (50/60 Hz)
• Poles: 3
• Auxiliary Contact: 1 NO
• Mounting Options: DIN‑rail or panel
• Terminal Type: Screw
• Overall Dimensions: 77 × 45 × 86 mm
• Weight: ~0.32 kg

Material Compliance and Certifications

• UL Listed: Adheres to U.S. safety standards for electrical devices.
• CSA Certified: Meets Canadian regulatory requirements.
• CE Marked: Conforms to EU health, safety, and environmental protection standards.
• RoHS Compliant: Free from lead, mercury, and other hazardous substances.

Suitability

• Perfect for control panel builders, OEMs, and industrial electricians working on lower‑power 3‑phase motor systems. The LC1D0910F7 is an excellent fit for conveyor belts, compressors, pumps, and HVAC units where reliable motor control and compact form factor are essential.
