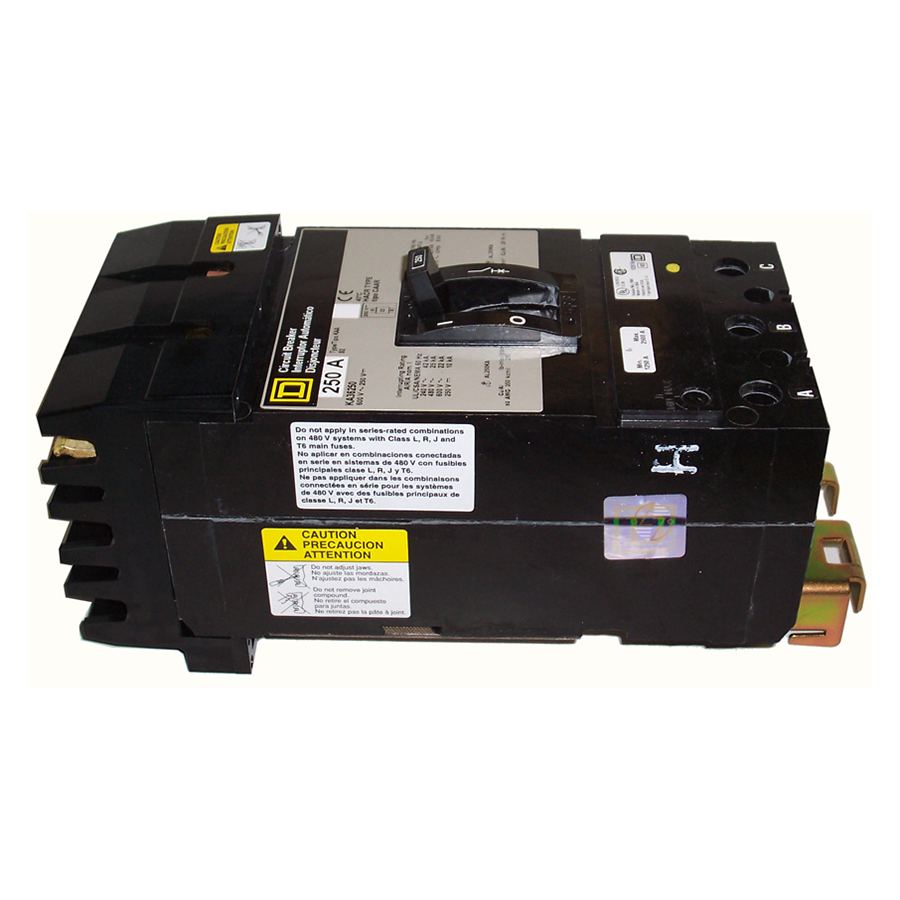

KH36225 - 225 Amp Circuit Breaker

KH36225 - 225 Amp Circuit Breaker

If you're looking for a KH36225, chances are the equipment you're working on already calls for a fairly specific breaker. This is a 225-amp, 3-pole Type KH molded-case circuit breaker for compatible I-Line panelboards, with a thermal-magnetic configuration rated for 60Hz and 40°C. If the breaker type, poles, dimensions, electrical ratings, and other equipment requirements line up, the KH36225 may provide the form, fit, and function needed for the job. Properly selected, installed, and kept within its specified ratings, it's built to last in the equipment it was designed to serve.

Key Features and Benefits

• 225A, 3-pole configuration for equipment requiring these specific electrical characteristics.
• Type KH molded case circuit breaker intended for compatible I-Line panelboards.
• Thermal-magnetic configuration as specified for the KH36225.
• Specified for 60Hz and 40°C operation.
• Useful for maintaining existing and legacy electrical equipment when the complete specifications match the application.


Technical Specifications

• Part Number: KH36225

• Breaker Type: Molded Case Circuit Breaker

• Type: KH

• Trip Configuration: Thermal Magnetic

• Amperage: 225A

• Number of Poles: 3

• Frequency: 60Hz

• Temperature Specification: 40°C

• AIC at 600VAC: 25k

• AIC at 480VAC: 35k

• AIC at 240VAC: 65k

• Intended Application: Compatible with I-Line panelboards

• Width: 4.50 in.

• Height/Length: 10.50 in.

• Depth: 4.38 in.

• Dimensions: 4.50"W x 10.50"L x 4.38"D

• Approximate Shipping Weight: 12.00 lbs.


Material Compliance and Certifications

Specific certification and material-compliance details weren't included in the information supplied for the KH36225, so listings or standards such as UL, RoHS, REACH, or others shouldn't be assumed.

Where It Works Best

The KH36225 makes the most sense in an existing or legacy I-Line panelboard that calls for this Type KH breaker configuration. For replacement work, start with the part number, but don't stop there.

Check the 225A rating, three poles, Type KH designation, 60Hz frequency, 40°C specification, dimensions, and interrupting capacity at your system voltage. The breaker measures 4.50"W x 10.50"L x 4.38"D, so physical size is another straightforward item to compare with what's already installed. Any mounting, connection, or accessory requirements that aren't covered by the supplied specifications should be verified separately.
