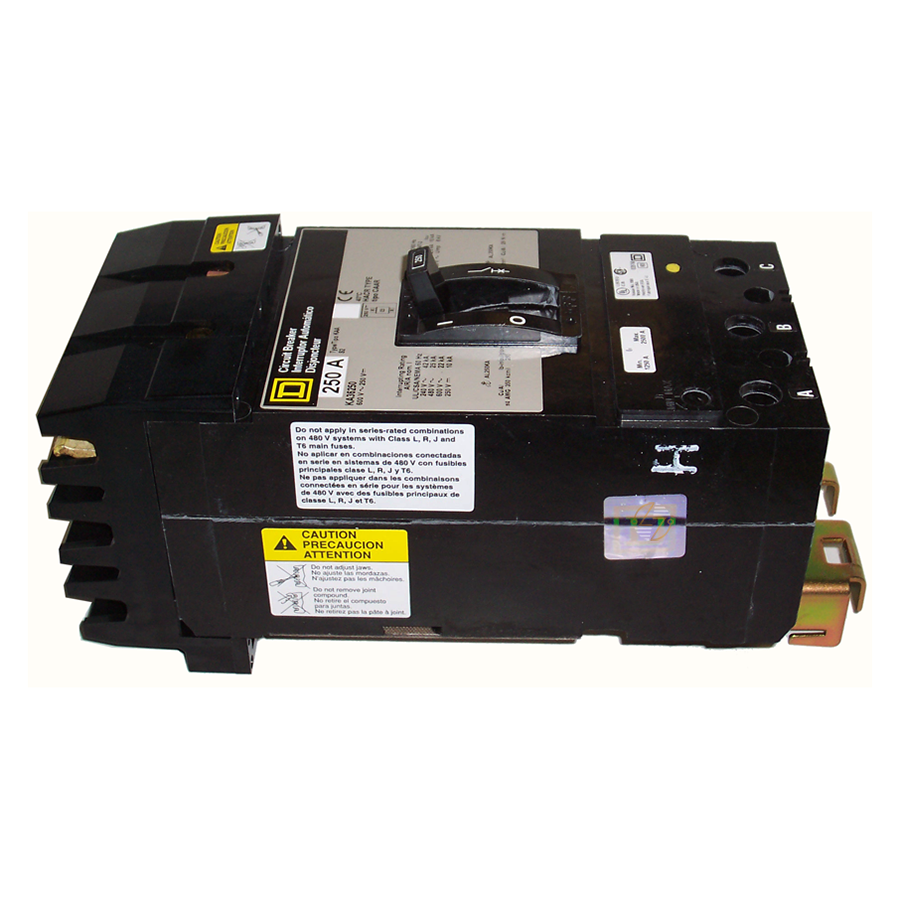

KH36200 - 200 Amp Circuit Breaker

KH36200 - 200 Amp Circuit Breaker

Before a breaker is installed in your existing I-Line panelboard, its ratings and physical footprint must match the equipment's requirements. The KH36200 is a 200-amp, 3-pole Type KH molded-case circuit breaker with a thermal-magnetic configuration, specified for 60Hz and 40°C. For replacement work, compare the KH36200 part number, Type KH designation, amperage, pole count, dimensions, frequency, temperature specification, and the AIC rating at the applicable voltage with the existing breaker and panelboard requirements.

Key Features and Benefits

• 200-amp rating for equipment specifically requiring a 200A breaker.
• 3-pole configuration for compatible three-pole applications.
• Type KH molded case circuit breaker intended for compatible I-Line panelboards.
• Thermal-magnetic configuration provides the breaker arrangement specified for this model.
• 60Hz frequency and 40°C specification provide additional reference points when confirming application requirements.


Technical Specifications

• Part Number: KH36200

• Product Type: Molded Case Circuit Breaker

• Type: KH

• Configuration: Thermal Magnetic

• Amperage: 200A

• Poles: 3

• Frequency: 60Hz

• Temperature Specification: 40°C

• A.I.C. Rating at 600VAC: 25k

• A.I.C. Rating at 480VAC: 35k

• A.I.C. Rating at 240VAC: 65k

• Intended Application: Compatible with I-Line panelboards

• Width: 4.50 in.

• Height/Length: 10.50 in.

• Depth: 4.38 in.

• Dimensions: 4.50"W x 10.50"L x 4.38"D

• Approximate Shipping Weight: 12.00 lbs.


Material Compliance and Certifications

Specific certification and material-compliance information was not included in the supplied specifications for the KH36200. Accordingly, listings or standards such as UL, RoHS, REACH, or other third-party certifications should not be assumed.

Where It Works Best

The KH36200 is intended for compatible I-Line panelboards that require its Type KH configuration and electrical ratings. It's particularly relevant when maintaining existing or legacy equipment where retaining the correct breaker footprint and specifications is necessary.

For a replacement application, start with the part number, but don't stop there. Confirm the 200A rating, three poles, Type KH configuration, 60Hz frequency, 40°C specification, and 4.50" W x 10.50"L x 4.38"D dimensions. The interrupting rating should also be checked at the actual system voltage: 25k AIC at 600VAC, 35k AIC at 480VAC, or 65k AIC at 240VAC.
