K3200 - 200Amp Circuit Breaker

K3200 - 200Amp Circuit Breaker

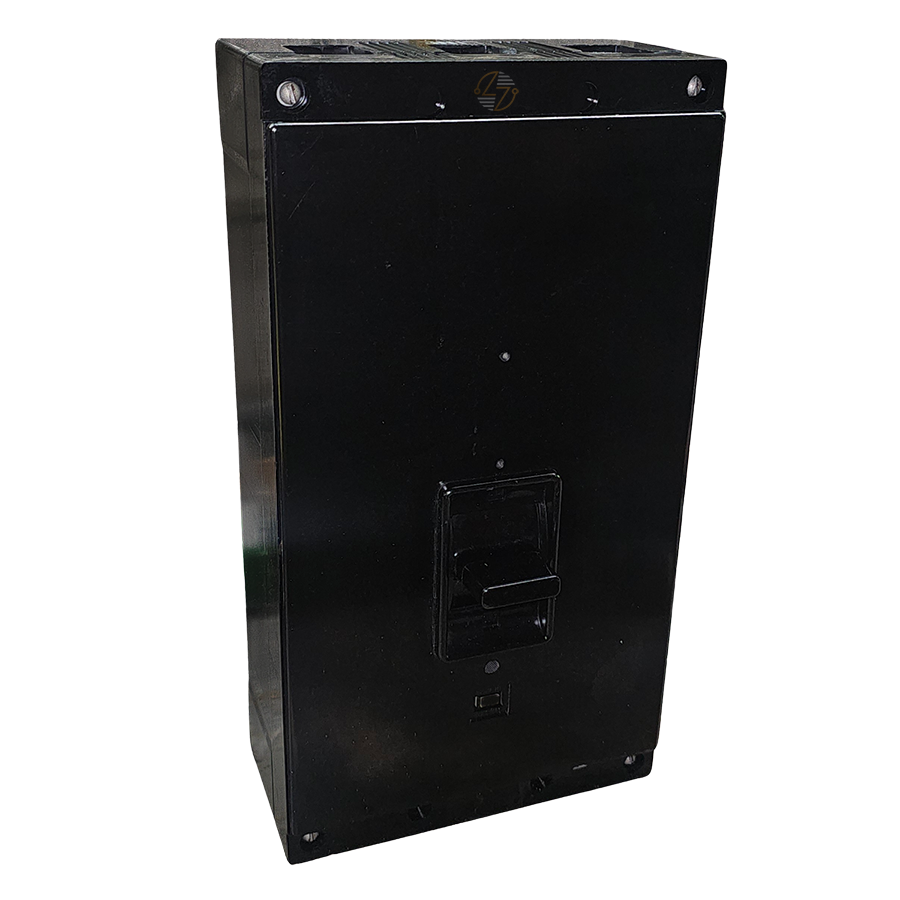

When you're looking for a K3200 circuit breaker, you're probably trying to answer a simple question: does it match the breaker and equipment already in place? The details here give you plenty to check. The K3200 is a 200A, three-pole molded-case circuit breaker with a Type K, K-Frame configuration and a thermal-magnetic trip design. The K3200 is built to last, with its value as a replacement centered on maintaining the original installation's form, fit, and function. Before installation, compare the frame, amperage, pole count, trip design, electrical rating, and dimensions to those of the breaker being replaced.

Key Features and Benefits

• 200A rating: Matches equipment designed around a 200-amp breaker configuration.
• Three-pole design: An essential detail to confirm when selecting the correct replacement for an existing installation.
• K-Frame construction: Maintains the frame configuration needed for equipment that specifically calls for a K-Frame breaker.
• Type K: Provides another clear identifier for comparison with the existing breaker.
• Thermal-magnetic trip: Uses the specified trip design found in the K3200 configuration.
• Molded case construction: Supplied as a molded case circuit breaker.


Technical Specifications

• Part Number: K3200

• Product Type: Molded Case Circuit Breaker

• Type: K

• Frame: K-Frame

• Amperage: 200A

• Poles: 3

• Trip Type: Thermal-Magnetic

• A.I.C. Rating & Volts: 600VAC

• Width: 8.25 in.

• Height / Length: 15.50 in.

• Depth: 4.00 in.

• Overall Dimensions: 8.25 in. W × 15.50 in. L × 4.00 in. D

• Approximate Ship Weight: 34.00 lb


Material Compliance and Certifications

Specific material compliance information and certifications were not provided in the available K3200 specifications. UL, CSA, IEC, RoHS, REACH, or other approvals should therefore not be assumed. If your installation requires a particular certification or compliance standard, confirm that requirement against the applicable product documentation before installation.

Where It Works Best

The K3200 200A 3-pole circuit breaker is suited to compatible existing and legacy electrical equipment that calls for a Type K, K-Frame molded case breaker with a thermal-magnetic trip design. This is particularly relevant in replacement situations where keeping the original electrical characteristics and physical fit is the priority—not changing the equipment configuration.
