JJA36250U33X - 250 Amp Circuit Breaker

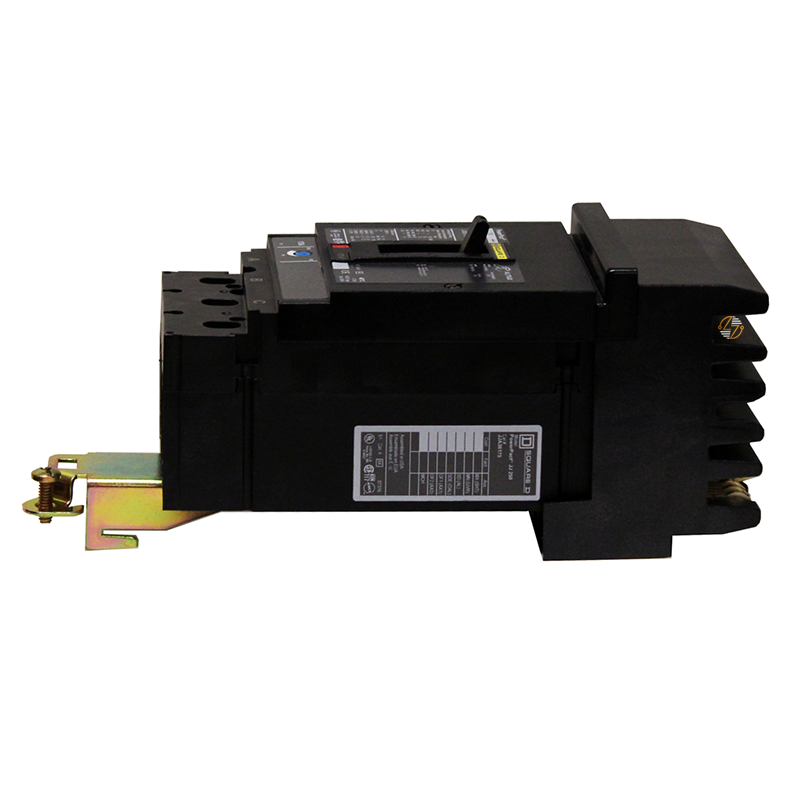

JJA36250U33X - 250 Amp Circuit Breaker

With the JJA36250U33X, the trip unit and connection setup tell much of the story. This 250A, three-pole PowerPacT J circuit breaker uses a MicroLogic 3.2 S electronic trip unit with LSI protection, rather than a thermal-magnetic trip configuration. The JJA36250U33X is built to last and is a practical choice for form, fit, and functional replacement when your electrical, trip-unit, mounting, and connection details match those of equipment already in service.

Key Features and Benefits

• 250A, three-pole design for compatible distribution equipment.
• MicroLogic 3.2 S electronic trip unit with LSI functionality for overload and short-circuit protection.
• I-Line line-side connection provides an important reference when confirming mounting and fit.
• 80% continuous current rating as specified by the manufacturer.
• Integral push-to-trip button allows manual tripping of the breaker.
• HACR rated where the application requires that designation.
• ABC phase connection is specified for this model.


Technical Specifications

• Catalog Number: JJA36250U33X

• Product Family: PowerPacT J

• Product Type: Circuit Breaker

• Application: Distribution

• Rated Current: 250A

• Poles: 3

• Control: Toggle

• Trip Unit: MicroLogic 3.2 S

• Trip Technology: Electronic

• Protection Function: LSI

• Protection: Overload and short circuit

• Continuous Current Rating: 80%

• UL 489 Interrupting Rating: 100 kA at 240VAC; 65 kA at 480VAC; 25 kA at 600VAC; 20 kA at 250VDC

• Line Connection: I-Line

• Load Connection: Mechanical lugs

• HACR Rated: Yes

• Dimensions: 7.5 in. H × 4.09 in. W × 3.4 in. D

• Net Weight: 5.3 lb.


Material Compliance and Certifications

Manufacturer data lists UL, CSA, and NOM product certifications, as well as a CE mark. Applicable standards include UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2.

Where It Works Best

The JJA36250U33X is suitable for situations where the existing distribution equipment specifically calls for a 250A, three-pole PowerPacT J breaker with I-Line construction and MicroLogic 3.2 S electronic protection. For replacement work, those details matter more than simply finding another breaker marked 250A.
