JJA36225 - 225 Amp Circuit Breaker

JJA36225 - 225 Amp Circuit Breaker

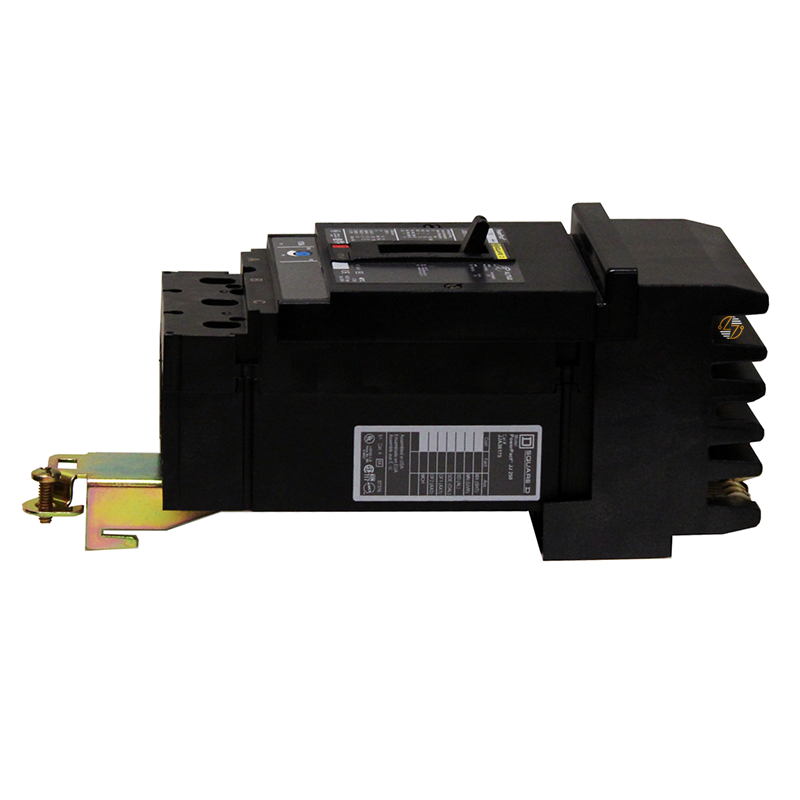

The JJA36225 has a few identifiers worth checking closely before you put it against an existing breaker. On the line side, it uses an I-Line connection. The load side is different, using an AL250JD mechanical lug that accepts 3/0 AWG through 350 kcmil aluminum or copper conductors. The JJA36225 is built to last and is compatible with existing and legacy distribution equipment when the electrical, connection, and physical specifications align with the original application.

Key Features and Benefits

• 225A, 3-pole configuration for compatible distribution equipment requiring these exact ratings.
• I-Line connection on the line side provides an important compatibility point when sourcing a replacement.
• AL250JD mechanical lug on the load side accepts 3/0 AWG through 350 kcmil aluminum or copper conductors.
• Thermal-magnetic trip technology provides overload and short-circuit protection.
• 80% continuous current rating with an ABC phase connection.
• Integral push-to-trip button allows the breaker to be manually tripped from the cover.


Technical Specifications

• Catalog Number: JJA36225

• Product Family: PowerPacT J

• Frame: J-Frame

• Product Type: Circuit Breaker

• Application: Distribution

• Rated Current: 225A

• Poles: 3

• Control: Toggle

• Trip Technology: Thermal-magnetic

• Protection: Overload and short circuit

• Continuous Current Rating: 80%

• Phase Connection: ABC

• Breaking Capacity, 240VAC: 100 kA, UL 489

• Breaking Capacity, 480VAC: 65 kA, UL 489

• Breaking Capacity, 600VAC: 25 kA, UL 489

• Breaking Capacity, 250VDC: 20 kA, UL 489

• Rated Operational Voltage (Ue): 600VAC, 50/60 Hz

• Line Connection: I-Line

• Load Connection: Mechanical lug

• Height: 7.5 in. (191 mm)

• Width: 4.09 in. (104 mm)

• Depth: 3.4 in. (86 mm)

• Net Weight: 5.3 lb. (2.4 kg)

• HACR Rated: Yes


Material Compliance and Certifications

The JJA36225 carries UL, CSA, and NOM product certifications, as well as a CE mark. Listed standards include UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2. The front cover has an IP40 rating, and the specified pollution degree is 3 under IEC 60947-1.
