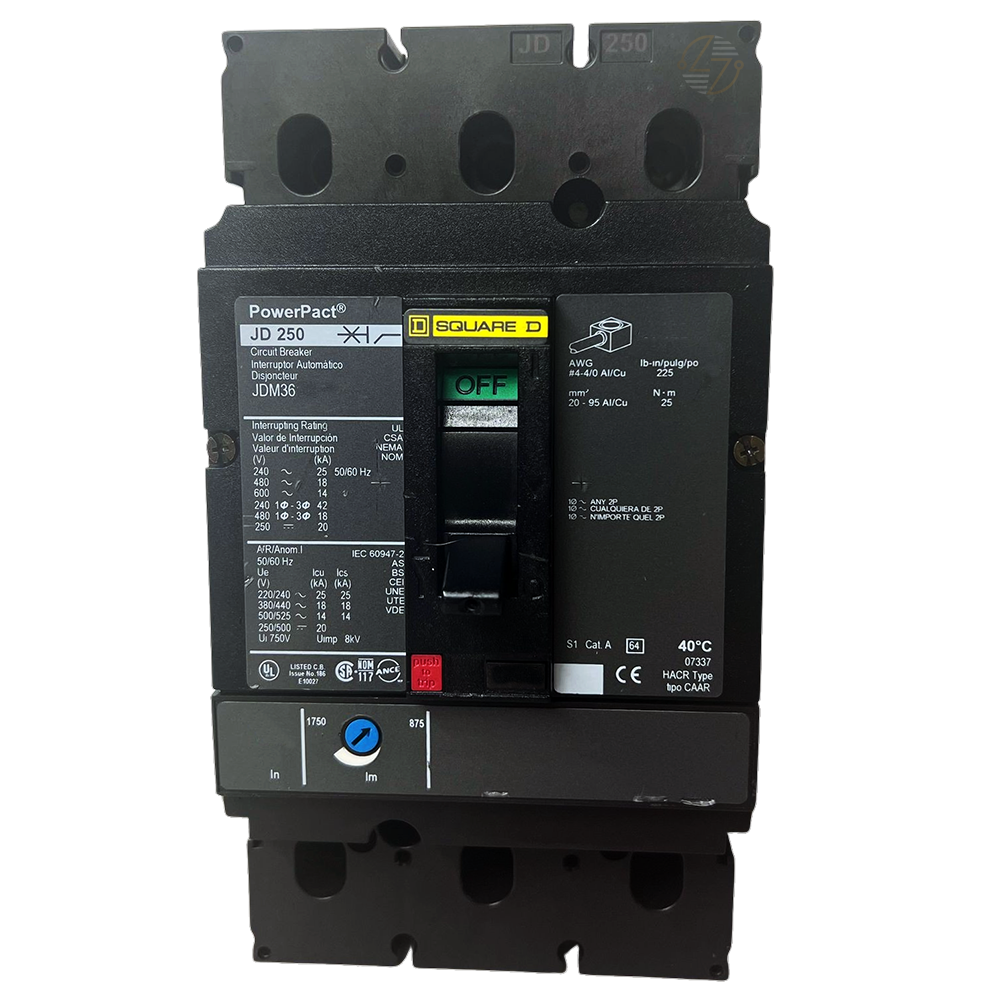

The Schneider Electric PowerPacT JDM36250 is a rugged and high-performing 3-pole circuit breaker designed to provide reliable overcurrent protection and power switching in commercial and industrial electrical systems. With a rated current of 250 amps and a breaking capacity of 14kA at 600VAC, this unit ensures safe interruption of fault conditions while maintaining system integrity. Built with a thermal magnetic trip unit, it offers both overload and short-circuit protection for balanced electrical safety.

Key Features and Benefits

• Thermal Magnetic Trip Unit: Provides fast-acting protection against overloads and short circuits.
• High Breaking Capacity: Rated 14kA at 600VAC to handle severe fault currents with safety.
• 250A Line Rated Current: Supports medium to high-capacity applications.
• 80% Continuous Current Rating: Meets typical application requirements for electrical systems.
• Flexible Mounting: Unit mount design with lugs and terminal nuts for easy installation.
• Push-to-Trip Button: Allows manual tripping for testing or safety operations.

Technical Specifications

• Frame Type: PowerPacT J
• Amperage Rating: 250A
• Poles: 3
• Voltage Rating: 600V AC
• Breaking Capacity: 14kA at 600VAC, 25kA at 240V AC, 20kA at 250V DC
• Trip Unit Type: Thermal Magnetic
• Rated Impulse Withstand Voltage: 8kV
• Magnetic Trip Settings: Hold: 1250A, Trip: 2500A
• Wire Size Range: AWG 3/0 to 350 kcmil (Cu/Al)
• Dimensions: H: 7.5 in, W: 4.09 in, D: 3.4 in
• Weight: 5.3 lb (2.4 kg)

Environmental and Compliance

• Ambient Operating Temperature: -25°C to 70°C
• Storage Temperature: -50°C to 85°C
• Operating Altitude: Up to 2000m without derating (5000m with derating)
• Certifications: UL, CSA, NOM, IEC 60947-2
• Quality Labels: CE, IP40 front cover rating
• Construction Materials: Recyclable packaging, carbon footprint of 1163 kg CO2 eq

Suitability

• The JDM36250 is a versatile and dependable circuit breaker ideal for commercial distribution panels, industrial systems, and OEM assemblies requiring robust protection and straightforward integration. Whether you're building out new infrastructure or upgrading existing equipment, this PowerPacT J-frame circuit breaker offers the durability and performance your system demands.


Choose the Schneider Electric PowerPacT JDM36250 for dependable, UL-listed circuit protection in demanding electrical environments.
