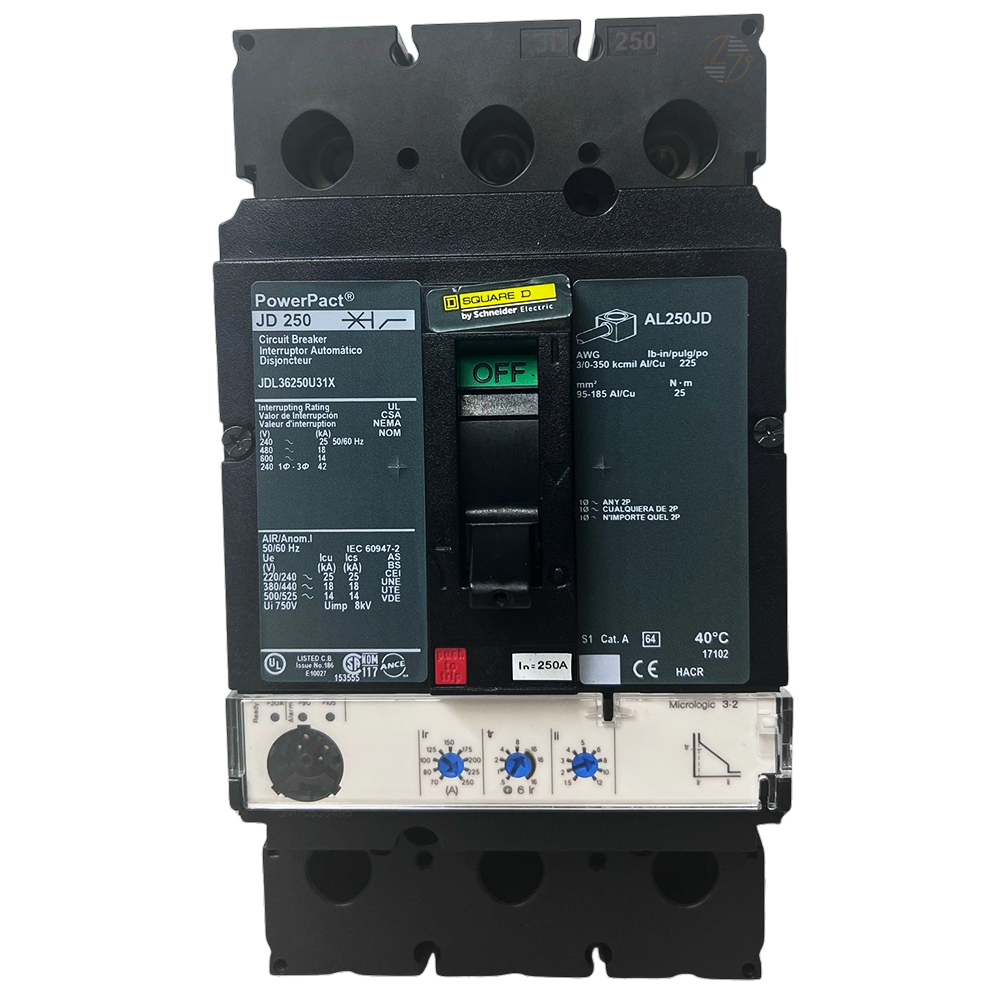

JDL36250U31X - 250Amp Circuit Breaker

JDL36250U31X - 250Amp Circuit Breaker

The PowerPacT J-Frame Circuit Breaker (Catalog Number: JDL36250U31X) is a high-performance solution for protecting electrical systems from overloads and short circuits. Engineered with precision, this 250A, 3-pole breaker offers robust protection with a breaking capacity of 14kA at 600VAC. Featuring the advanced Micrologic 3.2 trip unit, the breaker is designed for reliable operation in demanding environments. It provides overload and short-circuit protection, ensuring that your electrical circuits remain safe under stress.

Key Features and Benefits:

• Micrologic 3.2 Trip Unit: Includes electronic overload protection and trip indication for enhanced monitoring and control of electrical systems.

• High Breaking Capacity: Rated at 14kA at 600VAC, ensuring efficient interruption of fault currents for increased safety.

• Dual-Break Rotating Contacts: Reduces peak current during short-circuit faults, providing superior protection.

• Ease of Installation:åÊDesigned with lugs on both the line and load sides for easy connection.

• Visi-Trip LED Indicator: Available as an accessory for clear and immediate fault identification.


Technical Specifications:

• Continuous Current Rating: 250A

• Number of Poles: 3P

• Rated Operational Voltage: 600V AC

• Breaking Capacity: 14kA at 600VAC

• Ambient Temperature Range for Operation: -13‰Û?158 å¡F (-25‰Û?70 å¡C)

• Mounting Mode: Unit mount with lugs

• Dimensions: Height - 7.5 in (191 mm), Width - 4.09 in (104 mm), Depth - 3.4 in (86 mm)

• Weight: 5.3 lb (2.4 kg)


Material Compliance and Certifications:

• Complies with UL, CSA, NOM, and IEC standards.

• CE Marked for compliance with European safety and environmental standards.

• RoHS compliant and PVC-free construction.


Suitability:

• The JDL36250U31X is ideal for industrial and commercial power distribution applications, offering both safety and reliability in protecting critical electrical infrastructure. Whether you‰۪re building new systems or upgrading existing ones, this circuit breaker provides the protection and flexibility needed for modern electrical demands.
