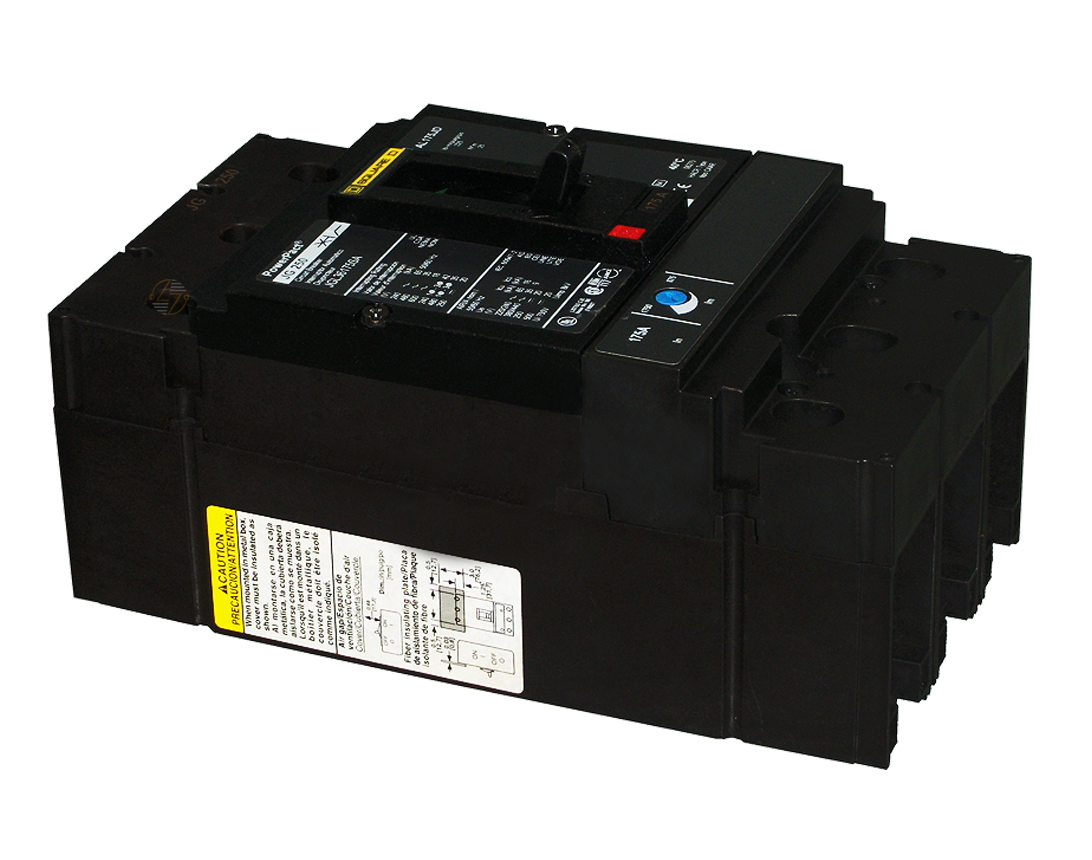

JDL36225SA - 225Amp Circuit Breaker

JDL36225SA - 225Amp Circuit Breaker

The JDL36225SA PowerPacT J-Frame Circuit Breaker delivers exceptional performance, reliability, and safety for your electrical distribution needs. Engineered to protect systems from overloads and short circuits, this 225A, 3-pole circuit breaker features a robust thermal-magnetic trip mechanism and a breaking capacity of 14kA at 600VAC, ensuring optimal protection for medium-scale electrical installations. Its advanced design includes dual-break rotating contacts to minimize peak current during faults, enhancing the durability of connected components.

Key Features and Benefits

• Efficient Protection:åÊThermal-magnetic trip unit ensures precise response to overloads and short circuits.

• Enhanced Safety: Dual-break rotating contacts minimize peak fault current, protecting downstream equipment.

• User-Friendly Design: Includes a factory-installed 120VAC shunt trip and ergonomic toggleåÊoperation for manual tripping.

• Convenient Fault Identification: Built-in LED Visi-Trip indicator simplifies troubleshooting andåÊmaintenance.

• Sustainability:åÊManufactured using eco-friendly practices, with packaging made from recycled cardboard.

Technical Specifications

• Rated Current: 225A

• Poles: 3

• Breaking Capacity: 14kA at 600VAC, 18kA at 480VAC

• Trip Unit Technology: Thermal-Magnetic

• Voltage Ratings: 600V AC operational, 750V insulation

• Mounting: Unit-mounted with lugs on both line and load sides

• Dimensions: 7.5 x 4.09 x 3.4 inches (H x W x D)

• Weight: 5.3 lbs (2.4 kg)


Material Compliance and Certifications

• Environmental Compliance: Carbon footprint optimized for lifecycle sustainability.

• Certifications: UL, CSA, NOM, IEC 60947-2 compliant, CE marked.

• Material Safety: PVC-free and RoHS-compliant with exemptions as applicable.


Suitability

• The JDL36225SA circuit breaker is ideal for industrial, commercial, and infrastructure applications requiring reliable power distribution and fault protection. Its scalable features and adherence to environmental standards make it a future-proof solution for modern electrical systems.

This product emphasizes both performance and sustainability, ensuring compliance with global safety and environmental standards while offering unparalleled operational reliability.
