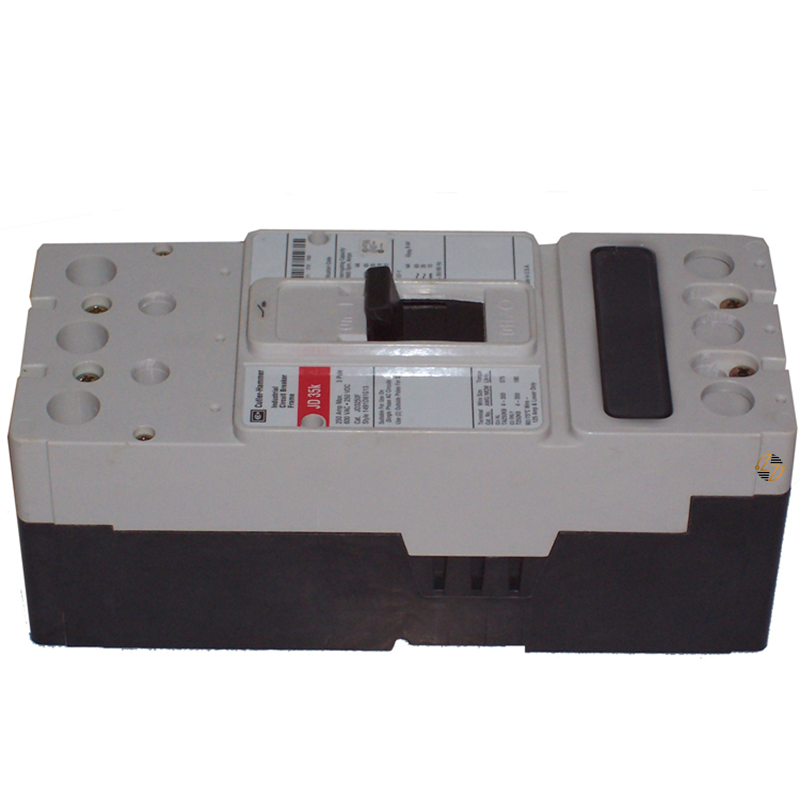

JDC3250F - 250Amp Max. *Frame Only*

JDC3250F - 250Amp Max. *Frame Only*

The Eaton JDC3250F Series C molded case circuit breaker is an exceptional solution for robust and reliable power protection in commercial and industrial applications. With a current rating of 250A and three-pole configuration, this circuit breaker ensures optimal performance and safety. The JDC3250F features a non-interchangeable thermal magnetic trip unit, providing precise protection against overloads and short circuits, which enhances the operational efficiency and safety of your electrical systems. Engineered to operate at 600 Vac and 250 Vdc, this circuit breaker is suitable for a wide range of applications, making it a versatile addition to your power management toolkit. This is a frame-only model and requires a compatible trip unit to function as a complete circuit breaker.

Key Features and Benefits:

• High Current Rating: With a 250A capacity, the JDC3250F is designed to handle substantial electrical loads, making it ideal for heavy-duty applications.
• Thermal Magnetic Trip: Ensures accurate protection against overloads and short circuits, enhancing safety and reliability.
• Versatile Voltage Compatibility: Rated for 600 Vac and 250 Vdc, suitable for various industrial and commercial settings.
• High Interrupting Capacity: Provides 100 kAIC at 480 Vac and 200 kAIC at 240 Vac, ensuring robust performance even in demanding conditions.

Technical Specifications:

• Amperage Rating: 250A
• Voltage Rating: 600 Vac, 250 Vdc
• Frequency Rating: 50 to 60 Hz
• Interrupt Rating: 100 kAIC at 480 Vac, 200 kAIC at 240 Vac
• Number of Poles: Three-pole
• Trip Type: Fixed thermal, fixed magnetic
• Dimensions: 4.06 in (L) x 4.13 in (H) x 4.13 in (W)
• Weight: 9.15 lb

Material Compliance and Certifications:

• Certifications: UL Listed, ensuring adherence to stringent safety and quality standards.
• Warranty: Backed by Eaton's comprehensive one-year warranty from the date of installation or eighteen months from the date of shipment, whichever occurs first.

Suitability:

• The JDC3250F is designed for commercial and industrial environments requiring high reliability and safety. Its high interrupting capacity and robust thermal magnetic trip unit make it suitable for protecting circuits in manufacturing plants, commercial buildings, and other heavy-duty applications. Whether you're upgrading your current electrical system or implementing a new one, the Eaton JDC3250F offers unmatched performance and durability.
