EATON

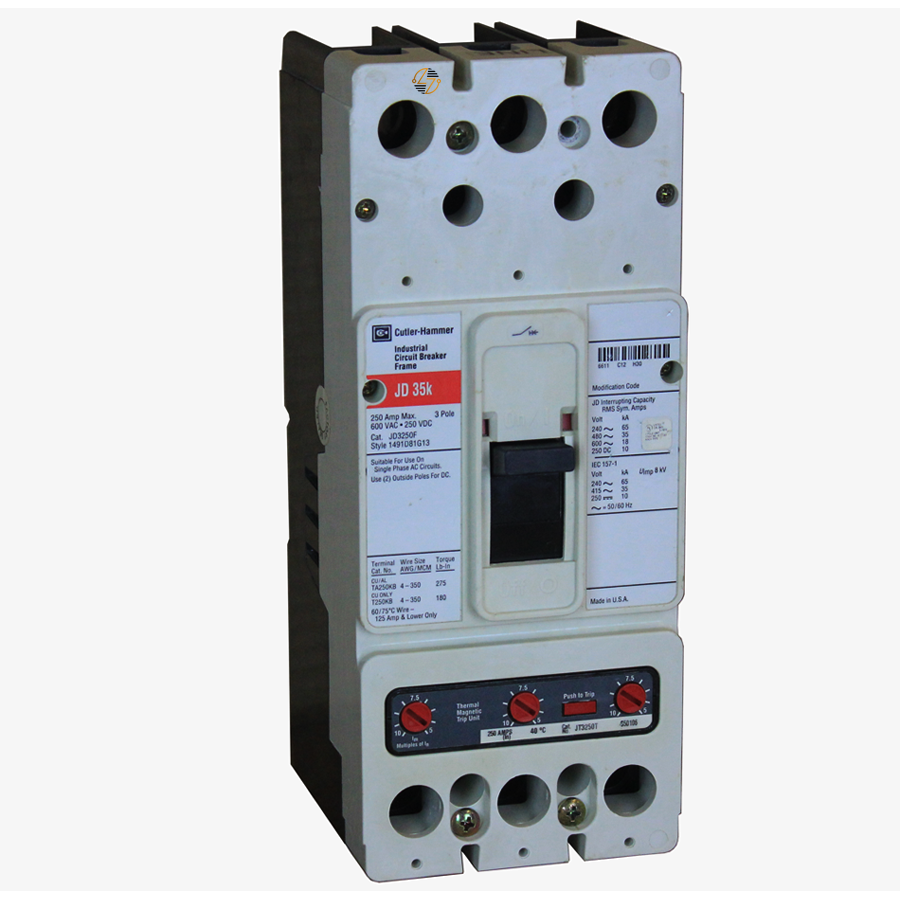

JDB3250W 250Amp Circuit Breaker

JDB3250W 250Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

JDB3250W 250Amp Circuit Breaker

The Eaton JDB3250W is a top-tier solution in the Series C molded case circuit breaker lineup, engineered for reliability and performance in demanding environments. This three-pole, 250A breaker operates with a non-interchangeable thermal magnetic trip unit, ensuring precise and efficient protection for electrical systems. Rated for up to 600 Vac and 250 Vdc, it is ideal for industrial applications requiring robust circuit protection. Its factory-sealed design guarantees durability and safety, while its 35 kAIC rating at 480 Vac and 65 kAIC at 240 Vac offers superior fault current interruption capability.

Key Features and Benefits:

  • High Current Capacity: With a 250A rating, the JDB3250W is perfect for high-demand electrical systems.
  • Versatile Voltage Ratings: Compatible with both 600 Vac and 250 Vdc systems, offering flexibility in various applications.
  • Thermal Magnetic Trip Unit: Provides reliable overcurrent protection through fixed thermal and magnetic trip mechanisms.
  • High Interrupting Capacity: Ensures safety with 35 kAIC at 480 Vac and 65 kAIC at 240 Vac, effectively handling high fault currents.

Technical Specifications:

  • Amperage Rating: 250A
  • Voltage Rating: 600 Vac, 250 Vdc
  • Trip Type: Fixed thermal, fixed magnetic
  • Interrupting Capacity: 35 kAIC at 480 Vac, 65 kAIC at 240 Vac
  • Poles: Three-pole
  • Frequency Rating: 50 to 60 Hz
  • Dimensions: Length 4.06 in, Width 4.13 in, Height 4.13 in
  • Weight: 11.25 lb

Material Compliance and Certifications:

  • Certifications: UL Listed, ensuring adherence to recognized safety standards.
  • Material Compliance: Designed with high-quality materials that comply with industry regulations for durability and safety.

Suitability:

  • The Eaton JDB3250W is an excellent choice for industrial and commercial applications where dependable circuit protection is crucial. Its robust construction and high interrupting capacity make it suitable for environments with high electrical demands, including manufacturing plants, data centers, and large commercial buildings. This breaker is designed to provide reliable performance in harsh conditions, ensuring the safety and efficiency of your electrical systems.
