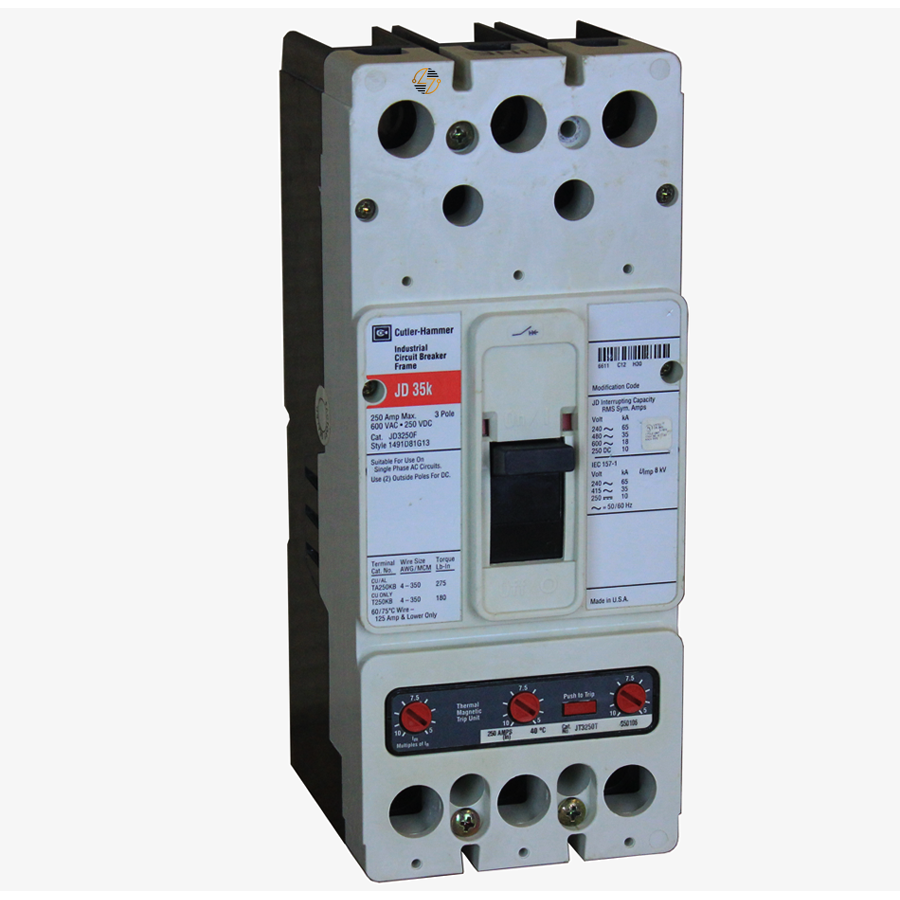

JDB3225 225Amp Circuit Breaker

JDB3225 225Amp Circuit Breaker

The Eaton JDB3225 Series C J-frame molded case circuit breaker is designed to provide superior protection and performance for industrial and commercial applications. This robust circuit breaker is factory-sealed to ensure reliable operation and is rated at 225A, making it ideal for a wide range of electrical systems. Featuring a three-pole, non-interchangeable thermal magnetic trip mechanism, the JDB3225 ensures precise protection against overloads and short circuits.

Key Features and Benefits:

• High Amperage Rating: Rated at 225A, the JDB3225 is perfect for heavy-duty electrical applications, ensuring stable and reliable performance.
• Thermal Magnetic Trip: The fixed thermal and magnetic trip units provide accurate protection against overloads and short circuits, enhancing safety and equipment protection.
• Factory Sealed: Ensures that the breaker remains tamper-proof and maintains optimal performance without the risk of unauthorized alterations.
• Compact Design: Despite its robust build, the compact size allows for easy integration into existing systems, saving space without compromising performance.
• Versatile Voltage Ratings: With a voltage rating of 600 Vac and 250 Vdc, the JDB3225 is versatile enough to handle a variety of electrical setups.
• High Interrupting Capacity: Boasting 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, this breaker can safely interrupt high fault currents, providing superior protection.

Technical Specifications:

• Amperage Rating: 225A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Poles: Three-pole
• Trip Type: Non-interchangeable thermal magnetic trip
• Frequency Rating: 50 to 60 Hz
• Dimensions: 4.06 in (L) x 4.13 in (H) x 4.13 in (W)
• Weight: 11.25 lbs

Material Compliance and Certifications:

• Compliance: The Eaton JDB3225 circuit breaker is UL listed, ensuring it meets rigorous safety and performance standards. Constructed with high-quality materials, including durable aluminum terminals, it is designed to withstand harsh conditions and provide long-lasting reliability.

Suitability:

• The JDB3225 is an ideal choice for industrial and commercial electrical systems that demand high reliability and performance. Its high interrupting capacity and versatile voltage ratings make it suitable for a wide range of applications, from manufacturing plants to commercial buildings. Whether you're upgrading an existing system or installing new equipment, the Eaton JDB3225 circuit breaker offers unparalleled protection and peace of mind.
