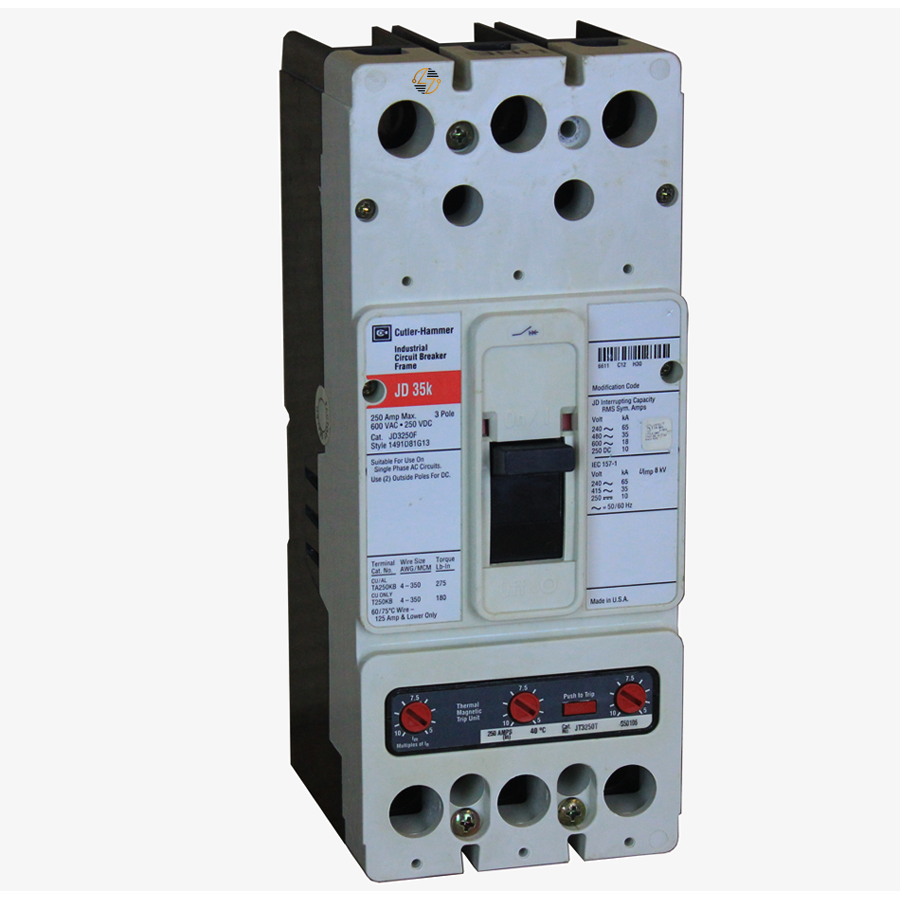

JDB3200W 200Amp Circuit Breaker

JDB3200W 200Amp Circuit Breaker

The Eaton JDB3200W is a high-performance Series C complete molded case circuit breaker, specifically designed for demanding industrial and commercial applications. This robust 200A, three-pole circuit breaker ensures reliable and safe power distribution with its advanced thermal magnetic trip technology. Ideal for environments requiring high interrupting capacities, the JDB3200W delivers exceptional performance with 35 kAIC at 480 Vac and 65 kAIC at 240 Vac. Built to Eaton's stringent standards, it combines durability with top-tier safety certifications, making it a trusted choice for professionals.

Key Features and Benefits:

• High Interrupting Capacity: With 35 kAIC at 480 Vac and 65 kAIC at 240 Vac, this breaker is capable of handling high fault currents, ensuring maximum protection for your electrical systems.
• Reliable Performance: Equipped with non-interchangeable thermal magnetic trip technology, the JDB3200W offers precise and consistent performance, enhancing system reliability.
• Versatility: Suitable for a wide range of applications due to its high voltage rating of 600 Vac and 250 Vdc, and frequency rating of 50 to 60 Hz.

Technical Specifications:

• Amperage Rating: 200A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Rating: 35 kAIC at 480 Vac, 65 kAIC at 240 Vac
• Number of Poles: 3
• Trip Type: Non-interchangeable thermal magnetic
• Frame Type: J-Frame
• Dimensions: 4.06 in (L) x 4.13 in (W) x 4.13 in (H)
• Weight: 11.25 lb

Material Compliance and Certifications:

• Compliance: The Eaton JDB3200W circuit breaker is UL Listed, adhering to stringent safety and performance standards. This ensures that the breaker not only meets but exceeds industry expectations for reliability and safety. The materials used in the construction of the JDB3200W are compliant with the latest environmental and safety regulations, ensuring it is suitable for use in various regulated environments.

Suitability:

• The JDB3200W is perfect for a variety of applications, including commercial buildings, industrial facilities, and critical infrastructure. Its high interrupting capacity makes it especially suited for environments where reliable power distribution and fault protection are paramount. Whether you're upgrading an existing system or designing a new installation, the Eaton JDB3200W provides the robust, dependable performance you need.
