JDA36175 - 175 Amp Circuit Breaker

JDA36175 - 175 Amp Circuit Breaker

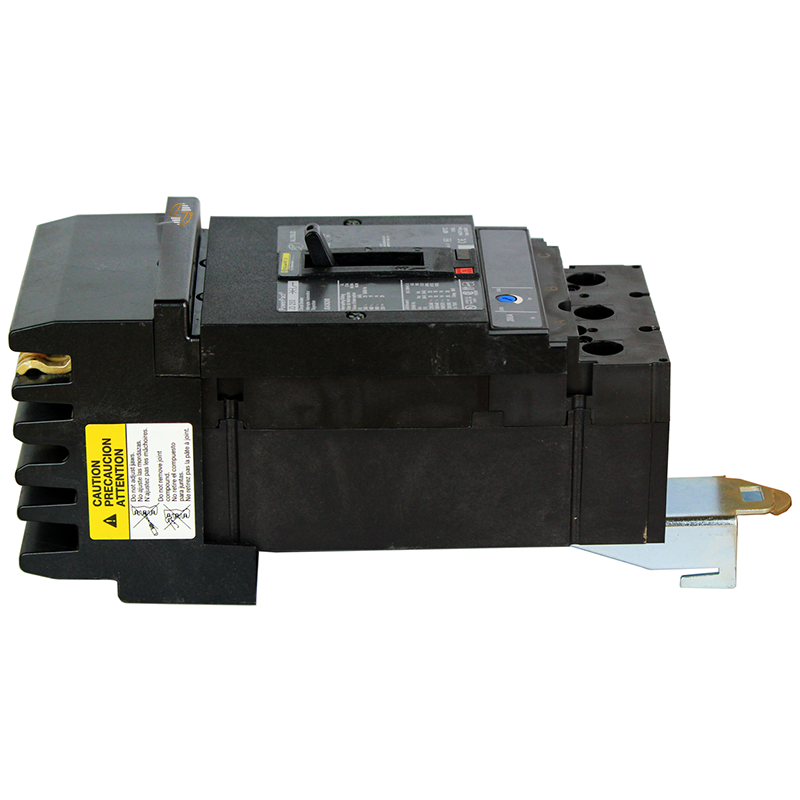

The JDA36175 is a 175A, three-pole PowerPacT J-frame circuit breaker with a thermal-magnetic trip unit and an I-Line connection on the line side. On the load side, it uses mechanical lugs with an AL175JD terminal, accepting 4 AWG through 4/0 AWG aluminum or copper conductors. That combination of amperage, mounting style, terminals, and physical size provides a useful set of checkpoints for matching a breaker to equipment already in service. It is built to last and provides the specific form, fit, and electrical characteristics needed to maintain compatibility with your existing and legacy I-Line equipment.

Key Features and Benefits

• 175A, three-pole rating: Matches equipment specifically requiring a 175-amp, 3-pole circuit breaker configuration.
• Thermal-magnetic trip technology: Provides overload and short-circuit protection using the manufacturer's specified trip design.
• I-Line construction: Features an I-Line line-side connection and bracket mounting arrangement, important details when checking compatibility with an existing installation.
• AL175JD load-side terminal: Mechanical load-side lug accepts both aluminum and copper conductors.
• 4 AWG–4/0 AWG conductor range: Gives installers a clearly defined conductor range for verifying connection compatibility.
• Push-to-trip feature: Integral push-to-trip functionality allows the breaker to be manually tripped.


Technical Specifications

• Catalog Number: JDA36175

• Product Family: PowerPacT J-Frame

• Product Type: Circuit breaker

• Rated Current: 175A

• Number of Poles: 3

• Trip Unit Technology: Thermal-magnetic

• Protection Type: Overload and short-circuit protection

• Control Type: Toggle

• Breaking Capacity Code: D

• Breaking Capacity at 240VAC: 25 kA, 50/60 Hz

• Breaking Capacity at 480VAC: 18 kA, 50/60 Hz

• Breaking Capacity at 600VAC: 14 kA, 50/60 Hz

• Breaking Capacity at 250VDC: 20 kA

• Rated Operational Voltage: 600VAC, 50/60 Hz

• Line-Side Connection: I-Line

• Load-Side Connection: Mechanical lugs

• HACR Rated: Yes

• Front Cover Protection: IP40

• Height: 7.5 in. (191 mm)

• Width: 4.09 in. (104 mm)

• Depth: 3.4 in. (86 mm)

• Net Weight: 5.3 lb (2.4 kg)


Material Compliance and Certifications

Manufacturer documentation for the JDA36175 lists UL, CSA, and NOM product certifications, along with CE marking. Applicable standards identified in the supplied specifications include UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2.

Where It Works Best

The JDA36175 is suited to compatible existing and legacy I-Line equipment requiring a 175A, three-pole PowerPacT J-frame circuit breaker with thermal-magnetic overload and short-circuit protection. Its I-Line line-side connection, bracket-mounting arrangement, and AL175JD mechanical load-side terminal are particularly important when identifying a form, fit, and function replacement. The manufacturer also identifies this model as HACR-rated.
