JD3250F - 250Amp Max. *Frame Only*

JD3250F - 250Amp Max. *Frame Only*

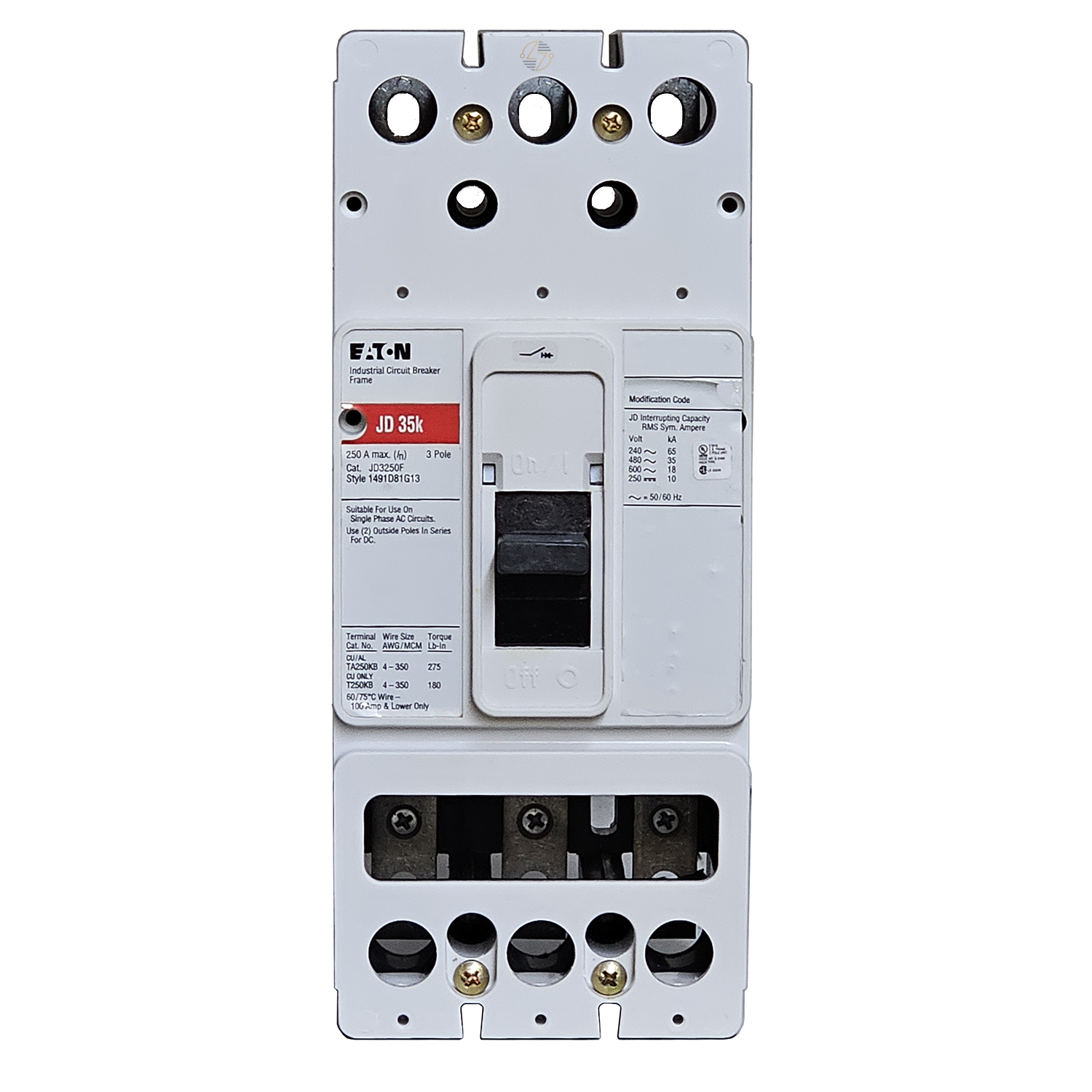

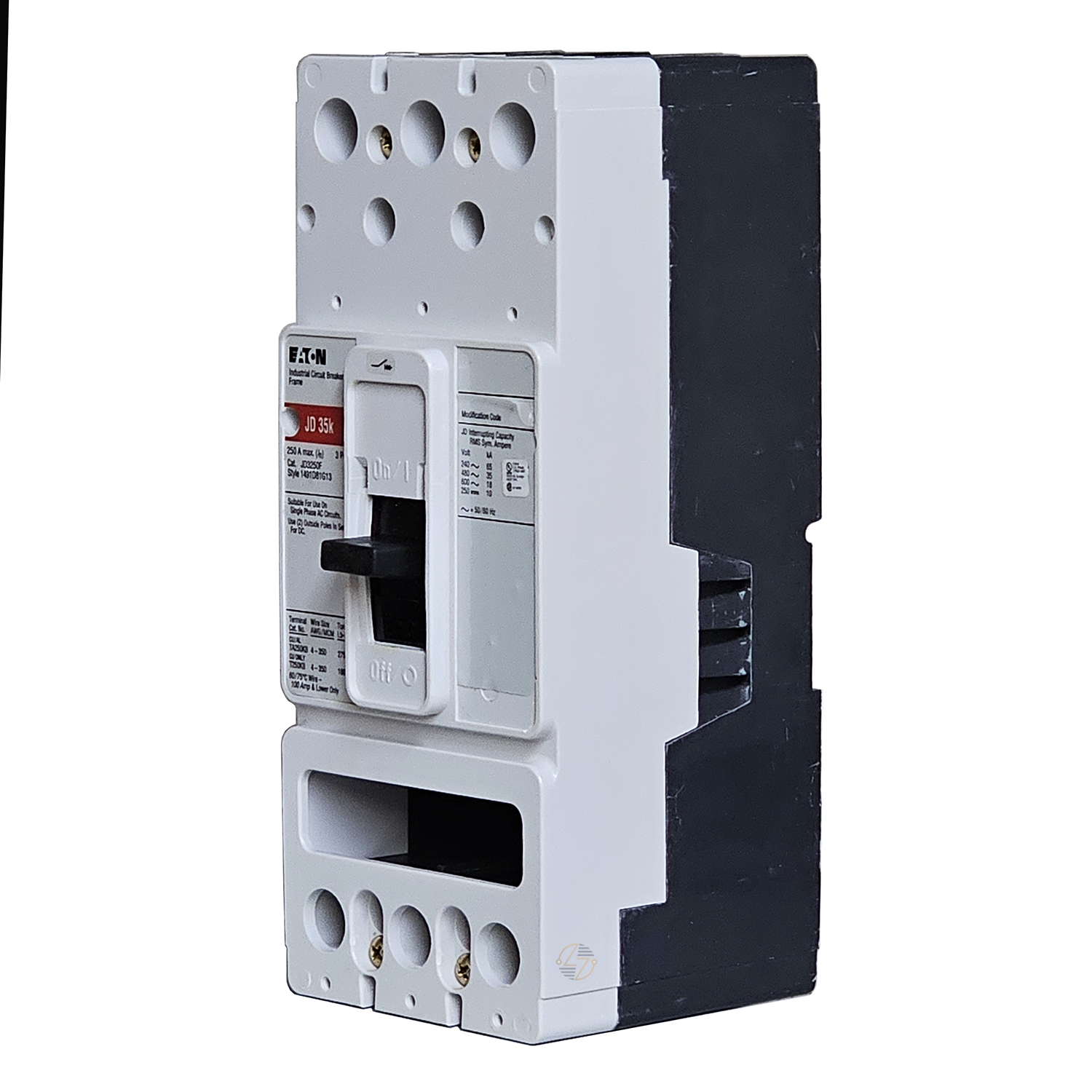

The Eaton JD3250F is a robust and dependable frame-only unit from the Series C J-frame family, designed for demanding electrical systems. Rated for 250 amps, this unit operates at 600 Vac and 250 Vdc, providing reliable protection in both industrial and commercial applications. Equipped with a noninterchangeable thermal magnetic trip, this three-pole breaker offers fixed, consistent performance. With an interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, this unit is engineered to handle high-fault scenarios. As a frame-only unit, the JD3250F requires the addition of a trip unit to function as a complete circuit breaker, enabling customizable protection.

Key Features and Benefits:

• Frame Only Design: Requires a separate trip unit for full functionality, offering flexibility in protection configurations.
• High Interrupting Capacity: Rated 65 kAIC at 240 Vac and 35 kAIC at 480 Vac for robust protection in high-fault environments.
• Noninterchangeable Thermal Magnetic Trip: Provides reliable, fixed thermal and magnetic protection.

Technical Specifications:

• Amperage Rating: 250A
• Voltage Rating: 600 Vac, 250 Vdc
• Trip Type: Noninterchangeable thermal magnetic
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Poles: 3

Important Note: This item requires a compatible trip unit for full functionality as a circuit breaker. Available trip unit sizes include:

• 70A (JT3070T)
• 90A (JT3090T)
• 100A (JT3100T)
• 125A (JT3125T)
• 150A (JT3150T)
• 175A (JT3175T)
• 200A (JT3200T)
• 225A (JT3225T)
• 250A (JT3250T)

Please ensure the appropriate trip unit is selected based on your specific application requirements. Trip Units Sold Separately and not included with this catalog number pricing.

Material Compliance and Certifications:

• This product is UL Listed and meets Eaton’s stringent safety standards.

Suitability:

• Ideal for commercial and industrial applications requiring 250A capacity and dependable protection in high-fault scenarios. The Eaton JD3250F frame is suitable for settings where fixed thermal and magnetic protection is necessary.

Choose the Eaton JD3250F for a high-quality, durable solution that provides consistent and reliable performance in critical electrical systems.

Use of Original Equipment Manufacturer (OEM) trademarks, names, and logos is for informational and identification purposes only. This does not imply any affiliation, sponsorship, endorsement, or approval by the original equipment manufacturer. All trademarks and registered trademarks are the property of their respective owners.
