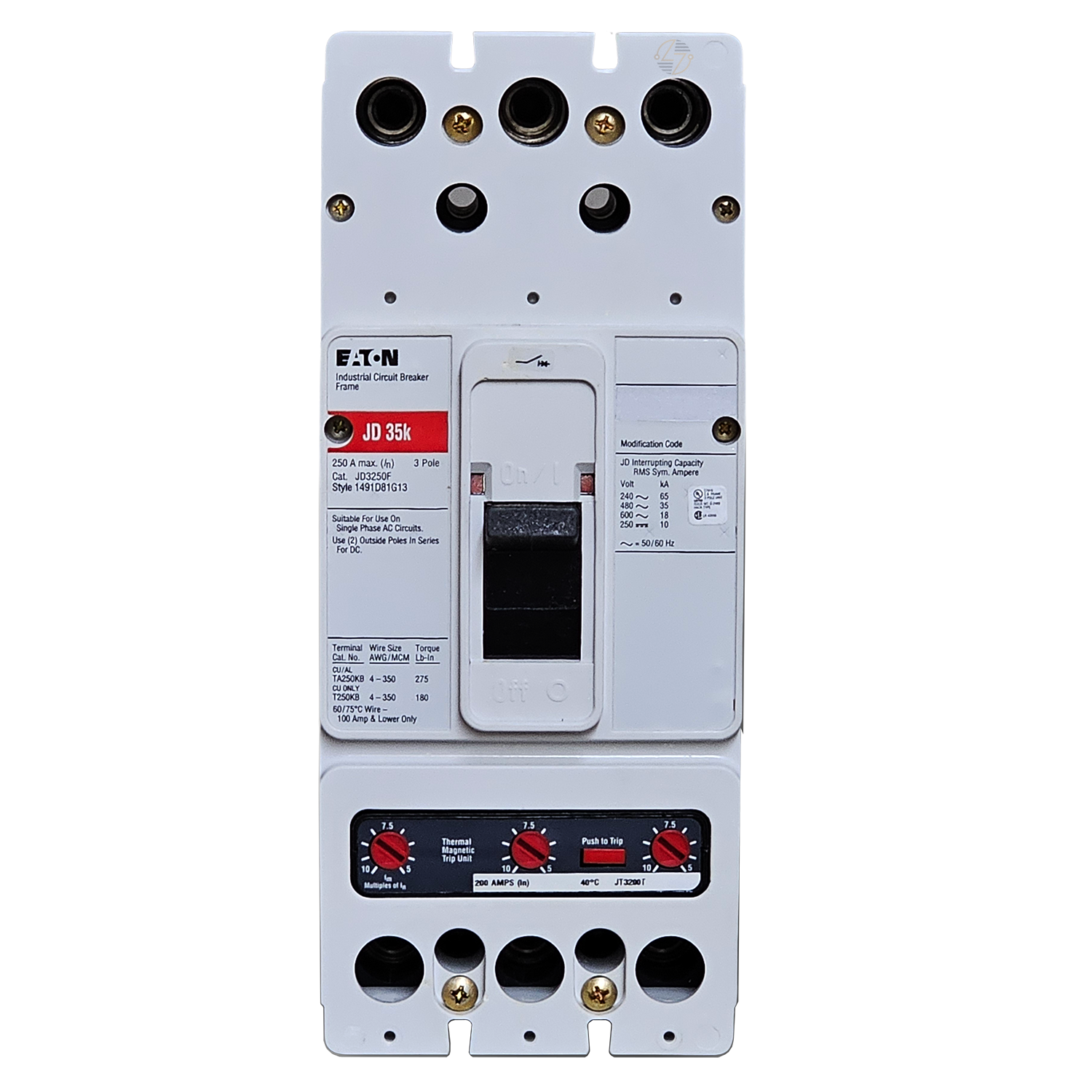

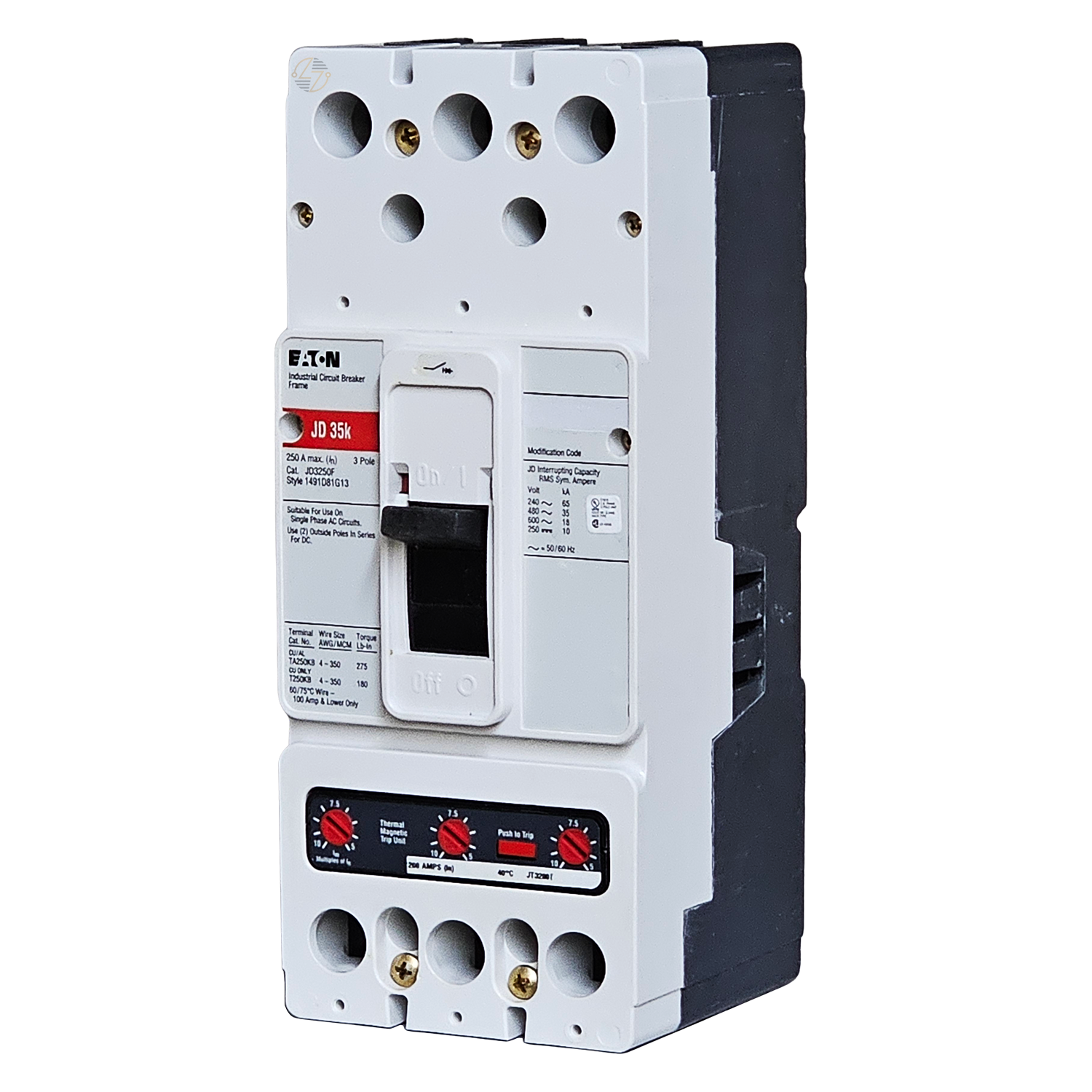

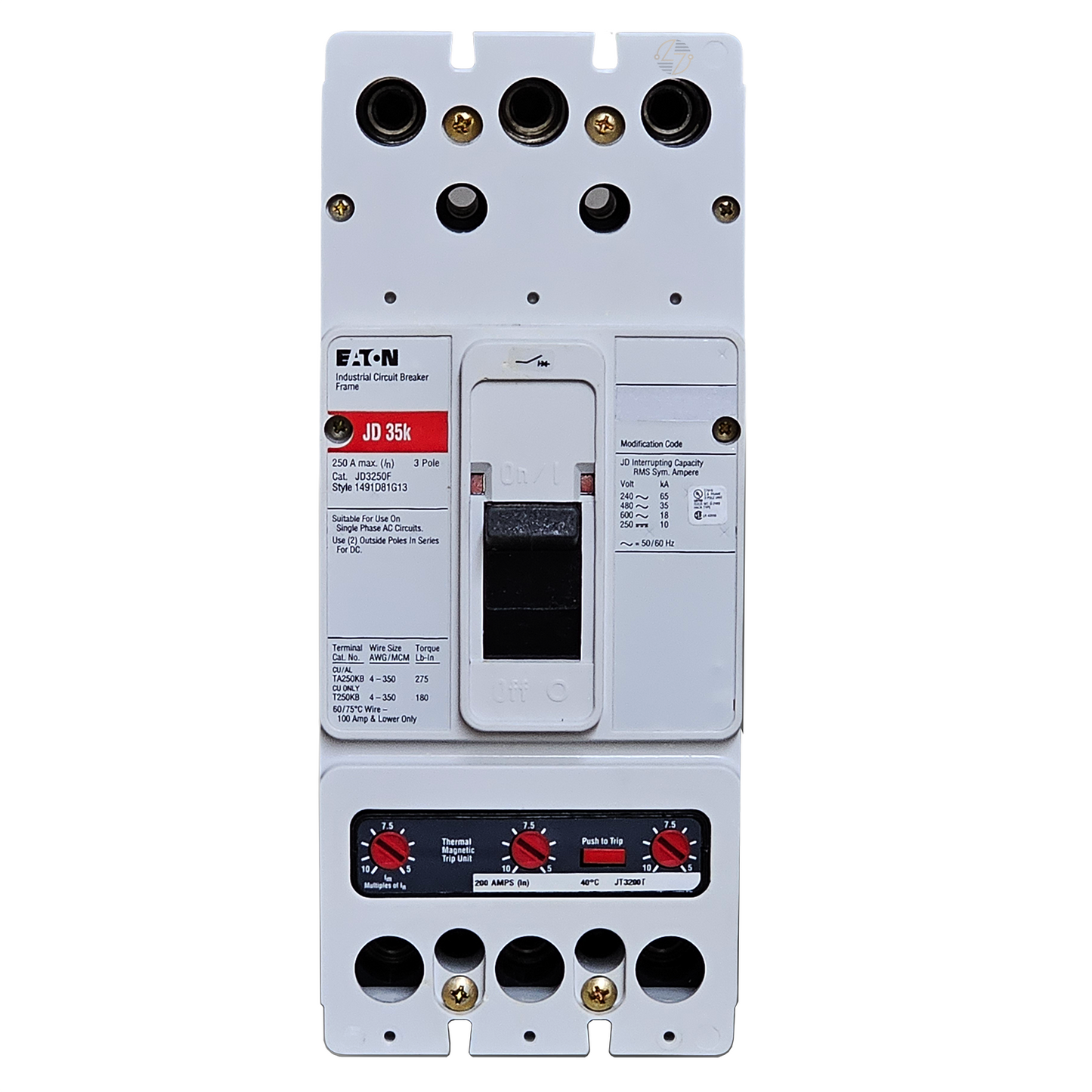

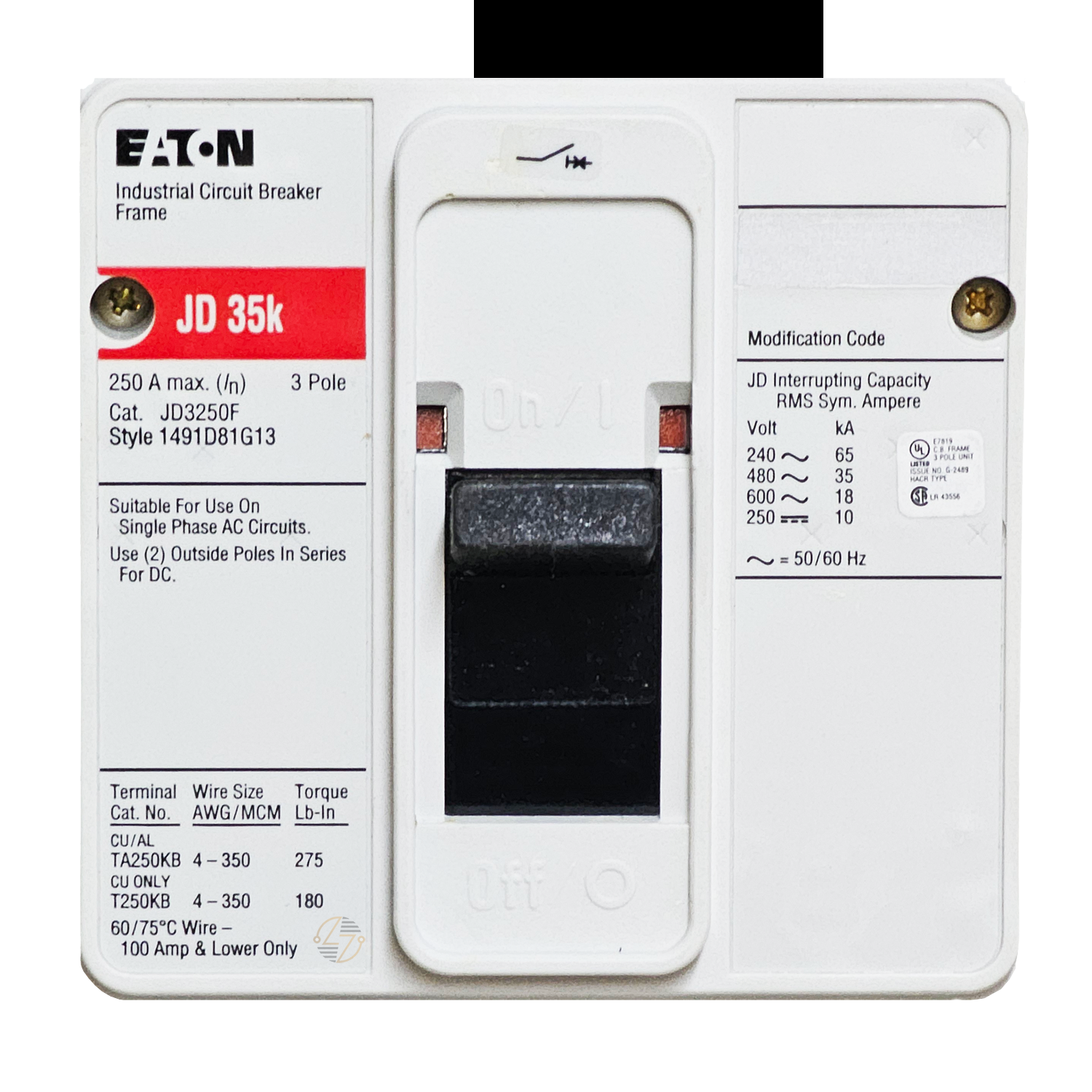

JD3200 200Amp Circuit Breaker

JD3200 200Amp Circuit Breaker

The Eaton JD3200 Circuit Breaker is a high-performance, robust solution designed for optimal protection and reliability in commercial and industrial applications. As a part of the esteemed Eaton Series C J-frame family, the JD3200 is engineered to deliver superior performance with a fixed thermal and fixed magnetic trip. It provides dependable overcurrent protection for your electrical systems, ensuring safety and longevity for your infrastructure.

Key Features and Benefits:

• High Interrupting Capacity: With an interrupting capacity of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, the JD3200 is capable of handling high fault currents, offering enhanced protection for your electrical circuits.
• Versatile Applications: Suitable for use in a variety of environments, the JD3200 operates efficiently at 600 Vac and 250 Vdc, making it an ideal choice for both AC and DC applications.
• Three-Pole Design: The three-pole configuration provides comprehensive protection across all phases, ensuring balanced load distribution and enhanced safety.
• Durability and Reliability: Constructed with high-quality aluminum line and load terminals, this circuit breaker is built to last, offering reliable performance in demanding conditions.

Technical Specifications:

• Amperage Rating: 200 A
• Voltage Rating: 600 Vac / 250 Vdc
• Interrupting Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed thermal, fixed magnetic
• Frame Type: J-frame
• Poles: Three-pole
• Material: Aluminum terminals
• Dimensions: 4.06 in (L) x 4.13 in (H) x 4.13 in (W)
• Weight: 9.55 lb

Material Compliance and Certifications:

• Compliance: The Eaton JD3200 Circuit Breaker is UL Listed, ensuring it meets stringent safety and performance standards. Eaton's commitment to quality is backed by a comprehensive warranty of one year from the date of installation or eighteen months from the date of shipment, whichever occurs first.

Suitability:

• Ideal for a wide range of commercial and industrial applications, the JD3200 is perfect for protecting electrical systems in manufacturing plants, commercial buildings, and data centers. Its robust design and high interrupting capacity make it particularly suitable for environments where reliable overcurrent protection is critical.

The Eaton JD3200 Circuit Breaker is more than just a component; it's a crucial safeguard for your electrical systems, designed to offer peace of mind through its robust performance and protection features. Explore more about this essential circuit breaker today and ensure your systems remain secure and compliant.
