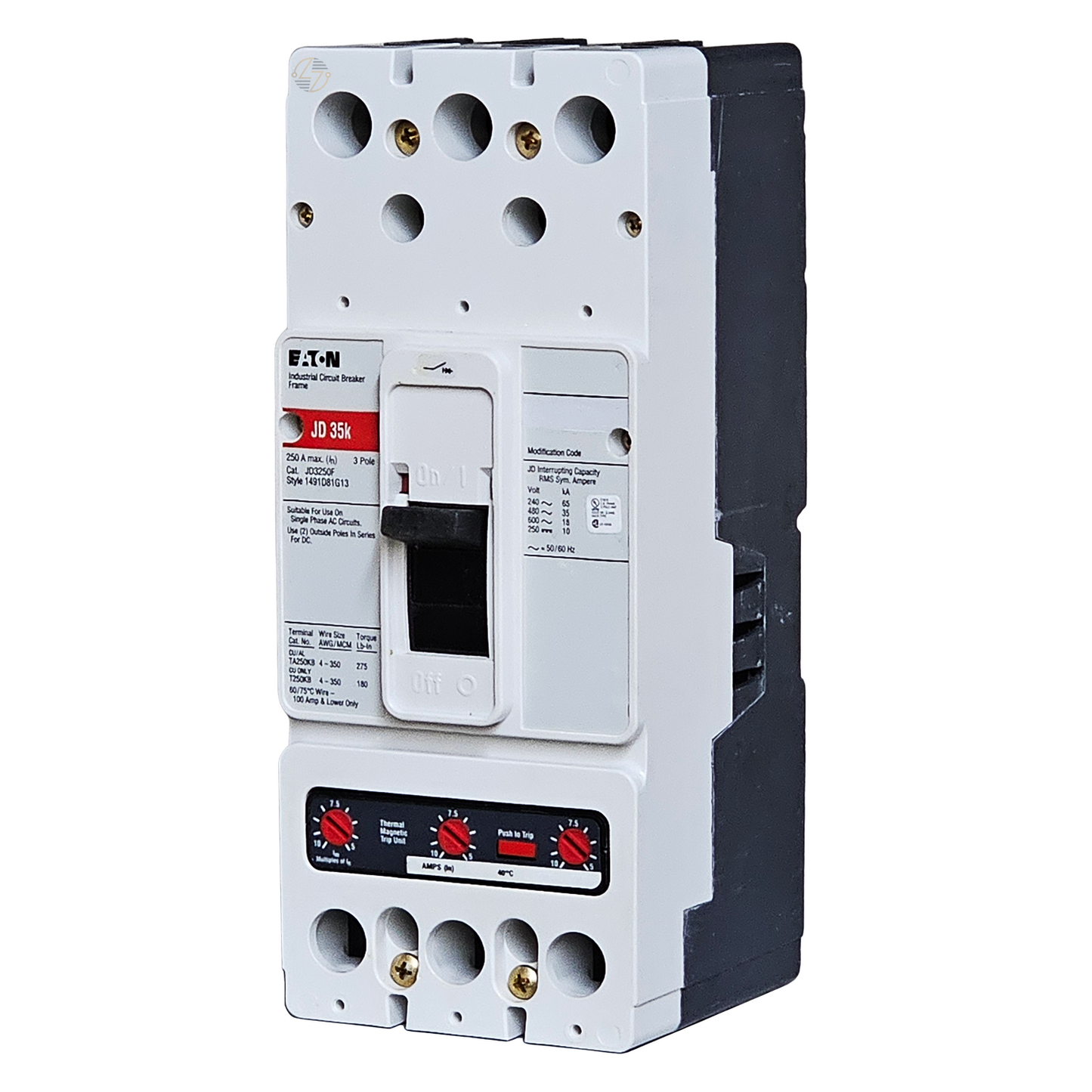

JD3175 175Amp Circuit Breaker

JD3175 175Amp Circuit Breaker

The Eaton JD3175 is a robust and reliable Series C J-frame molded case circuit breaker designed to meet the demanding requirements of industrial and commercial applications. This complete breaker offers a fixed thermal and fixed magnetic trip, ensuring dependable protection for electrical systems. With its three-pole configuration, the JD3175 provides superior performance and safety, making it an ideal choice for professionals seeking high-quality circuit protection solutions.

Key Features and Benefits:

• High Interrupting Capacity: The JD3175 boasts an impressive interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, ensuring it can handle high fault currents and protect your electrical system from damage.
• Versatile Voltage Ratings: Suitable for a wide range of applications, this circuit breaker operates efficiently at 600 Vac and 250 Vdc.
• Durable Construction: Built with high-quality aluminum terminals and a rugged design, the JD3175 is designed for long-lasting performance even in harsh environments.
• Ease of Installation: With line and load terminals and compatibility with various mounting configurations, installation is straightforward, reducing downtime and labor costs.

Technical Specifications:

• Frame Type: J-frame
• Poles: Three-pole
• Amperage Rating: 175 A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Capacity: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed thermal, fixed magnetic
• Terminal Material: Aluminum
• Dimensions: Length: 4.06 in, Height: 4.13 in, Width: 4.13 in
• Weight: 9.55 lb

Material Compliance and Certifications:

• Compliance: The Eaton JD3175 circuit breaker is UL Listed, confirming its adherence to the highest safety and performance standards in the industry. It is manufactured with high-grade materials, ensuring compliance with relevant industry regulations and standards. This certification guarantees that the JD3175 is a reliable and safe component for your electrical systems.

Suitability:

• The JD3175 is ideal for use in a variety of industrial and commercial applications, including motor protection, panelboards, switchboards, and machinery. Its high interrupting capacity and durable design make it suitable for environments where reliability and safety are paramount. Whether you're upgrading an existing system or installing a new one, the Eaton JD3175 provides the protection and performance needed to keep your operations running smoothly.

The Eaton JD3175 Circuit Breaker is more than just a component; it's a crucial safeguard for your electrical systems, designed to offer peace of mind through its robust performance and protection features. Explore more about this essential circuit breaker today and ensure your systems remain secure and compliant.
