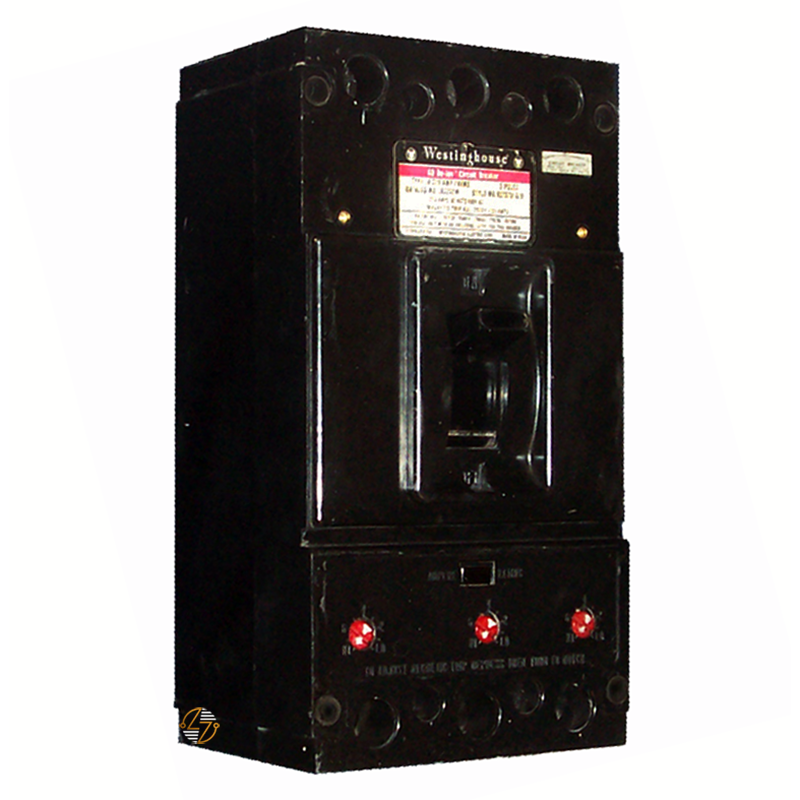

JA3200 200Amp Circuit Breaker

JA3200 200Amp Circuit Breaker

The JA3200 circuit breaker is a robust and essential component for maintaining high-demand electrical systems in both industrial and commercial settings. With a rating of 200 amperes and a three-pole configuration, this breaker is designed to manage significant electrical loads, making it suitable for heavy-duty applications. The breaker features a 40°C rated frame, ensuring optimal performance even in higher temperature environments, and includes load-side terminals for easy installation.

Key Features and Benefits:

• Thermal Magnetic Trip: Provides reliable circuit protection by responding effectively to overloads and short circuits, ensuring safety and efficiency.
• Durable and Compact Design: Engineered for heavy-duty performance while maintaining compact dimensions for easy integration into existing systems, ideal for maintenance applications.
• Load-Side Terminals Included: Simplifies installation and reduces downtime, enhancing overall ease of use and efficiency.

Technical Specifications:

• Amperes: 200A
• Poles: 3
• AIC Rating: 22k @ 600VAC; 22k @ 480VAC; 25k @ 240VAC
• Frame Type: JA
• Dimensions: 5.50"W x 10.13"L x 3.94"D
• Ship Weight: 16.00 lbs
• Temperature Rating: 40°C
• Trip Unit: Non-interchangeable, Thermal Magnetic
• Terminals: Load-side terminals included

Material Compliance and Certifications:

• Compliance: Manufactured to meet or exceed industry standards for safety and performance, ensuring reliability.
• Certifications: Certified for use in accordance with relevant electrical safety standards, ensuring compliance in regulated environments.

Suitability:

• The JA3200 circuit breaker is ideal for maintenance operations in industrial and commercial environments where reliable protection against overloads and short circuits is critical. It is specifically designed to support the ongoing maintenance of existing electrical systems, ensuring they operate safely and efficiently.
