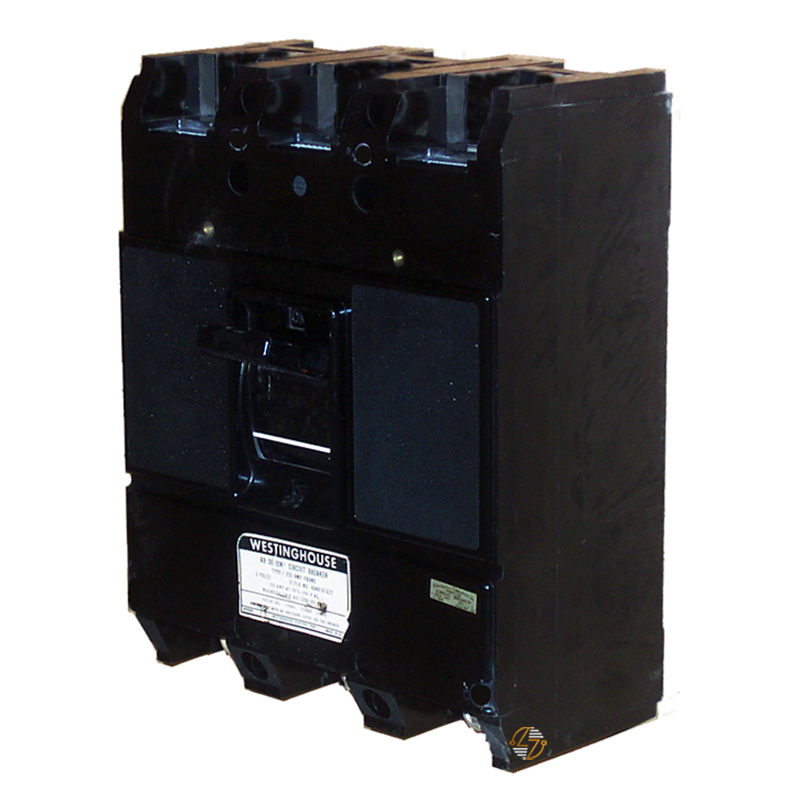

J3200 - 200Amp Circuit Breaker

J3200 - 200Amp Circuit Breaker

When you're replacing a breaker in existing equipment, the small details matter just as much as the amp rating. The J3200 is a 200A, 3-pole J-frame circuit breaker with a 14k AIC rating at 480VAC. It has a thermal-magnetic, non-interchangeable trip unit and is rated at 40°C. Load-side terminals are included. For compatible legacy equipment that calls for this particular J-frame configuration, the J3200 is a practical choice when the goal is to maintain the required form, fit, and function.

Key Features and Benefits

• 200A, 3-pole configuration: Gives you two of the most important specifications for checking a replacement right away.
• J-frame design: Helps narrow the match when working with compatible equipment requiring this frame configuration.
• Thermal-magnetic trip: Uses the specified thermal-magnetic method of circuit protection.
• Non-interchangeable trip unit: An important configuration detail that should match the requirements of the existing equipment.
• Load-side terminals included: No guesswork about whether this particular J3200 configuration includes them.
• 40°C rating: Another specification to check against the existing breaker and equipment documentation.


Technical Specifications

• Part Number: J3200

• Type: J

• Frame: J-Frame

• Amperage: 200 A

• Poles: 3

• Voltage: 480VAC

• A.I.C. Rating: 14k at 480VAC

• Interrupting Capacity: 14,000 A at 480VAC

• Trip Type: Thermal-Magnetic

• Trip Unit: Non-Interchangeable

• Temperature Rating: 40°C

• Load-Side Terminals: Included

• Width: 8.25 in.

• Height / Length: 10.13 in.

• Depth: 4.00 in.

• Dimensions: 8.25"W x 10.13"L x 4.00"D

• Approximate Ship Weight: 23.00 lb.


Material Compliance and Certifications

The supplied specifications do not include UL, CSA, IEC, RoHS, REACH, or other material compliance or certification information for the J3200. Because those details were not provided, they should not be inferred from the breaker type or electrical ratings.

Where It Works Best

The J3200 circuit breaker is a natural fit to consider when maintaining compatible existing or legacy equipment that calls for a 200A, 3-pole J-frame breaker with a 14k AIC rating at 480VAC. Its non-interchangeable thermal-magnetic trip unit and included load-side terminals are especially important when comparing it with the breaker already in place.
