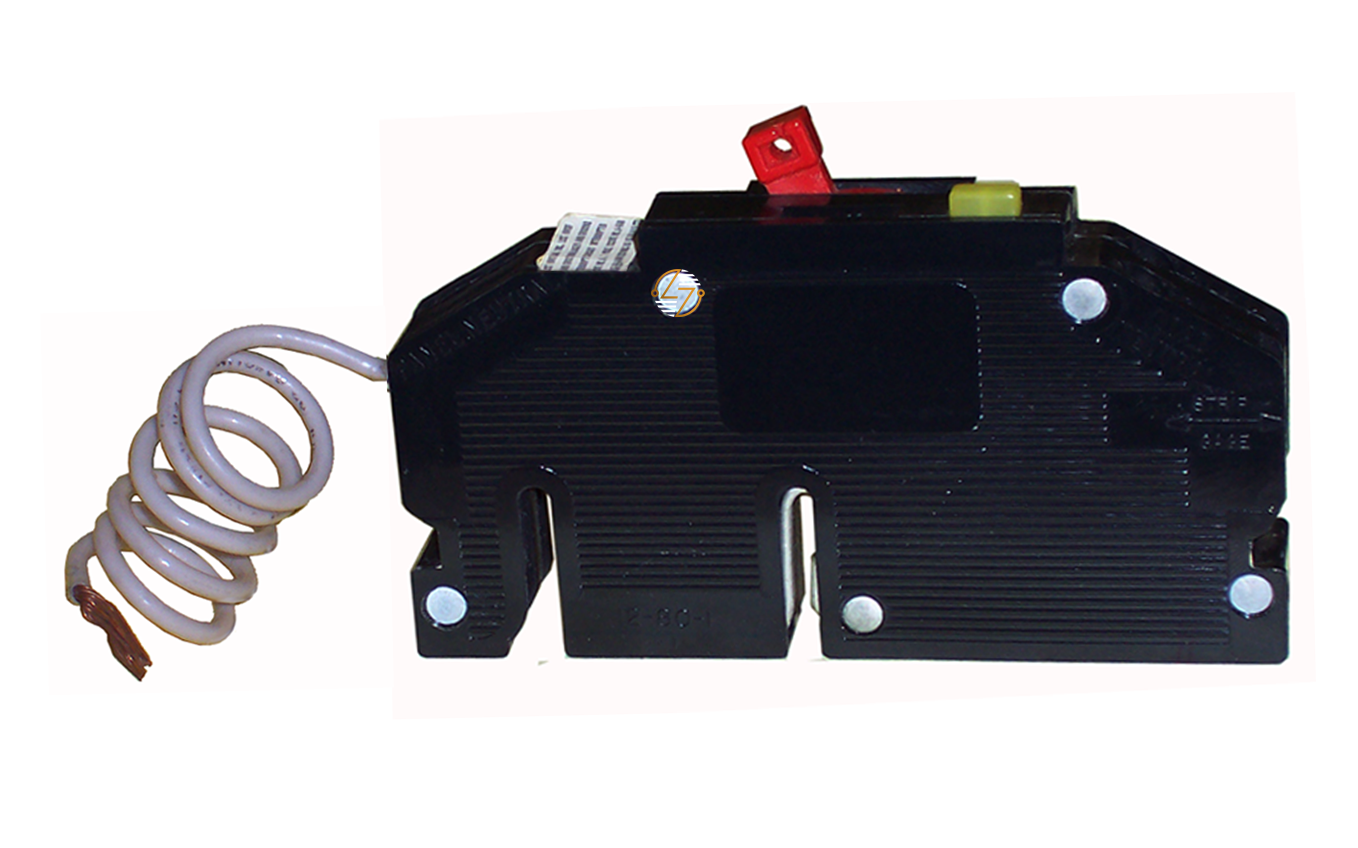

HRGF15 - 15A Circuit Breaker

HRGF15 - 15A Circuit Breaker

When the job calls for an HRGF15 circuit breaker, matching the details matters as much as matching the amperage. The HRGF15 is a 15-amp, single-pole, 120VAC plug-on circuit breaker that combines thermal-magnetic protection with ground-fault circuit interruption. It carries a 10k AIC rating at 120 VAC and is rated for 40°C. Just as important when you're working with existing or legacy equipment, this Type HRGF breaker occupies one full-size breaker space. The HRGF15 is built to last, but a correct replacement depends on form, fit, electrical ratings, and equipment compatibility—not simply finding another 15A breaker.

Key Features and Benefits

• 15-amp rating: A clearly defined current rating helps match the HRGF15 to equipment requiring a 15A breaker.
• Single-pole configuration: Designed with one pole, an important detail when confirming the existing breaker arrangement.
• 120VAC rating: Rated specifically for 120VAC applications requiring the stated breaker configuration.
• Ground fault circuit interruption: Incorporates GFCI functionality as part of the breaker design.
• Thermal-magnetic operation: Combines thermal and magnetic trip characteristics in the circuit breaker.
• Plug-on connection: The plug-on configuration is an essential form-and-fit detail when matching the breaker to compatible equipment.
• Full-size footprint: Takes up one full-size breaker space, helping technicians verify panel space and physical compatibility.


Technical Specifications

• Catalog / Part Number: HRGF15

• Type: HRGF

• Product Type: Ground Fault Circuit Breaker

• Amperage: 15 A

• Number of Poles: 1

• Voltage Rating: 120 VAC

• A.I.C. Rating: 10k at 120 VAC

• Interrupting Capacity: 10,000 A at 120 VAC

• Trip Type: Thermal Magnetic

• Ground Fault Circuit Interruption: Yes

• Connection Type: Plug-On

• Temperature Rating: 40°C

• Breaker Space: One full-size space

• Width: 0.75 in.

• Height / Length: 4.81 in.

• Depth: 2.50 in.

• Overall Dimensions: 0.75"W x 4.81"L x 2.50"D

• Approximate Weight: 1.75 lb.


Material Compliance and Certifications

No specific UL, CSA, RoHS, REACH, or other certification or material-compliance information was included in the supplied specifications for the HRGF15. Rather than assume a certification based on the breaker type or product family, those details should be confirmed from the breaker markings or applicable manufacturer documentation when certification or material compliance is important to the installation.

Where It Works Best

The HRGF15 is appropriate for compatible existing or legacy electrical equipment that specifically calls for a 15A, 1-pole, 120VAC Type HRGF plug-on breaker with ground fault circuit interruption. Its 10k AIC rating at 120VAC, thermal-magnetic trip characteristics, and one full-size space footprint are all important parts of the match. This is especially useful information when you're replacing an existing HRGF15 and need to confirm more than the amperage printed on the handle.
