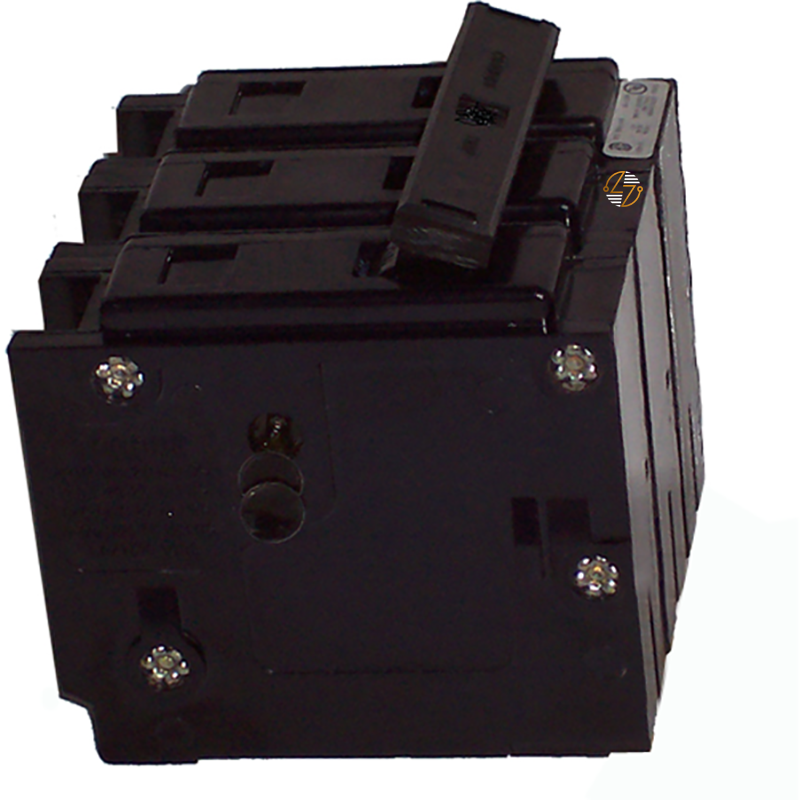

HQP3100H 100Amp Circuit Breaker

HQP3100H 100Amp Circuit Breaker

The Eaton HQP3100H Quicklag Industrial Circuit Breaker is engineered to deliver robust and reliable circuit protection for industrial applications. Designed for high-performance, this breaker features a three-pole configuration and supports a substantial 100-ampere current rating with a 240V voltage rating, ensuring it can handle significant electrical loads.

Key Features and Benefits:

• High Capacity Protection: Rated at 100A and capable of interrupting up to 10,000 amperes (kAIC), the HQP3100H ensures superior protection for heavy-duty industrial equipment, minimizing the risk of damage from electrical faults.
• Thermal-Magnetic Trip: Incorporates a thermal-magnetic trip unit that responds promptly to overloads and short circuits, providing precise and reliable protection that adapts to varying electrical conditions.
• Compact and Efficient Design: The breaker’s plug-on mounting method simplifies installation in compatible load centers and panels, making it an ideal choice for both new and retrofit applications.
• Versatile Application: Suitable for use in a wide array of industrial environments, from manufacturing facilities to large commercial buildings, ensuring flexible deployment options.

Technical Specifications:

• Amperage Rating: 100A
• Voltage Rating: 240V
• Interrupt Rating: 10 kAIC
• Number of Poles: 3
• Trip Type: Thermal-Magnetic
• Mounting Method: Plug-on
• Dimensions: 3.8 inches (Length) x 4.8 inches (Height) x 3.2 inches (Width)
• Weight: 1.05 lbs

Material Compliance and Certifications:

• The Eaton HQP3100H meets rigorous industry standards and certifications, including CSA certification and UL listing, confirming its safety, reliability, and adherence to quality benchmarks. These certifications ensure that the circuit breaker is compliant with North American safety standards, making it a trustworthy component in any electrical system.

Suitability:

• This circuit breaker is ideally suited for high-demand industrial applications where safety and reliability are paramount. It is designed to protect circuits from overloads and short circuits in environments that demand consistent performance and resilience. Whether you are outfitting a new facility or upgrading existing infrastructure, the HQP3100H provides dependable circuit protection that supports operational continuity and safety.
