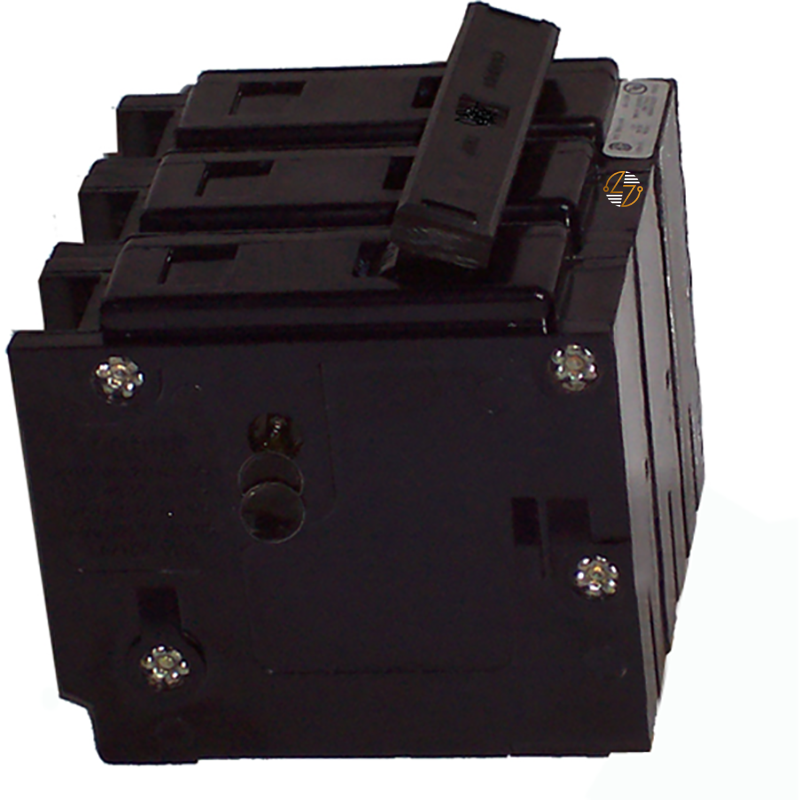

HQP3060H - 60Amp Circuit Breaker

HQP3060H - 60Amp Circuit Breaker

Need to match an Eaton HQP3060H in existing electrical equipment? Start with the details that actually determine whether the breaker belongs there. The HQP3060H is a 60-amp, three-pole Quicklag thermal-magnetic circuit breaker rated for 240V, with a 10 kAIC interrupting rating. It uses plug-on mounting and has a non-interchangeable trip. Size matters, too, particularly when you're dealing with legacy equipment where the available space and connection arrangement are already established.

Key Features and Benefits

• 60A rating provides a clear amperage specification for matching the breaker to compatible equipment.
• Three-pole design makes the required pole configuration easy to identify during replacement.
• Quicklag thermal magnetic construction matches the manufacturer's specified breaker design.
• HQP breaker type provides another important reference point when checking compatibility.
• Plug-on mounting helps identify the required connection and mounting arrangement.
• Non-interchangeable trip is clearly specified, removing guesswork when comparing breaker configurations.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: HQP3060H

• UPC: 786679344552

• Product Name: Eaton Quicklag Thermal Magnetic Circuit Breaker

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: HQP

• Type: Quicklag

• Amperage Rating: 60 A

• Number of Poles: 3

• Voltage Rating: 240 V

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-on

• Trip Type: Non-Interchangeable

• Product Width: 3.2 in

• Product Height: 4.9 in

• Product Length/Depth: 3.9 in

• Product Weight: 1 lb


Material Compliance and Certifications

For the HQP3060H, the manufacturer lists three relevant compliance and certification designations: HACR Rated, UL Listed, and CSA Certified.

Where It Works Best

The Eaton HQP3060H 60A three-pole circuit breaker is a practical match for compatible existing and legacy electrical equipment that specifically calls for its combination of HQP Quicklag type, 60A rating, three poles, 240V rating, 10 kAIC interrupt rating, plug-on mounting, and non-interchangeable trip. Its dimensions should also be part of the compatibility check.
