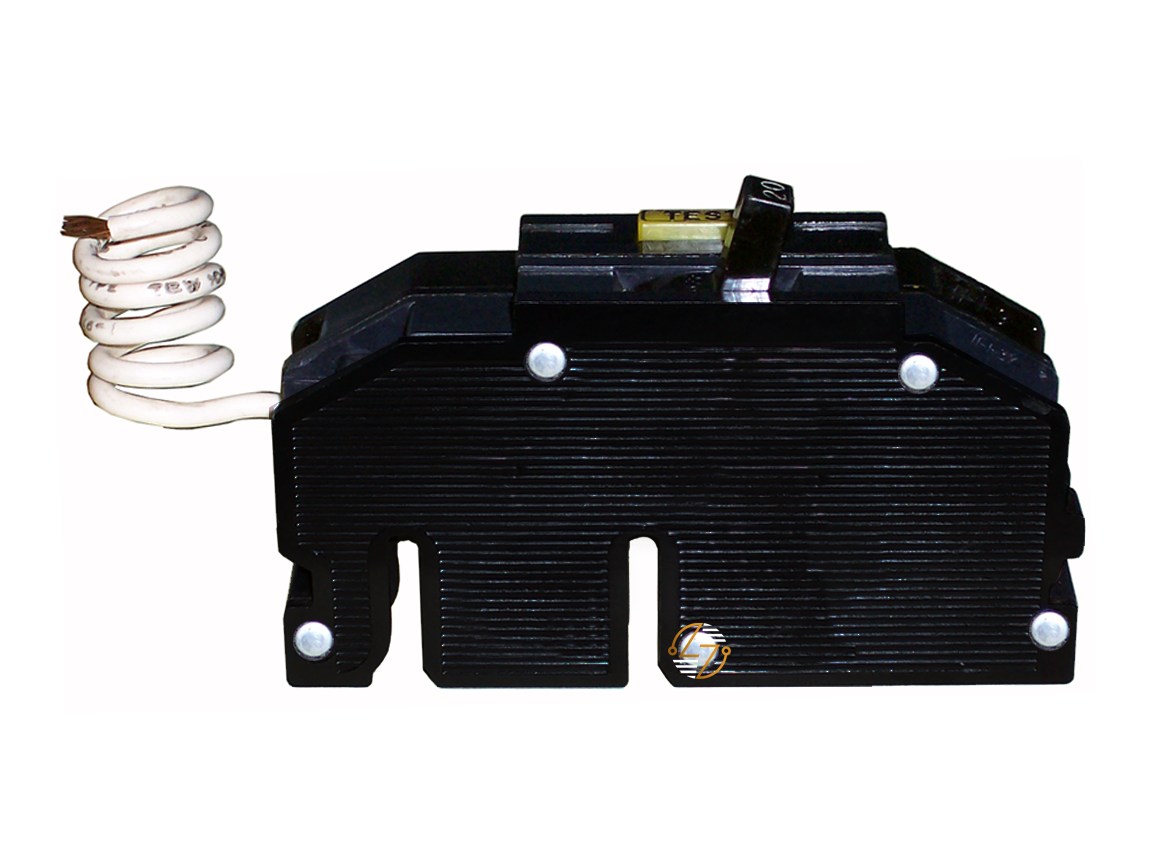

HQGF15 - 15Amp Circuit Breaker

HQGF15 - 15Amp Circuit Breaker

When you're replacing a breaker in existing electrical equipment, getting the details right matters. The HQGF15 circuit breaker is a 15-amp, 1-pole HQGF breaker rated at 10k AIC at 120VAC, with a plug-on connection and thermal-magnetic operation combined with ground-fault circuit interruption. For legacy equipment, the goal isn't to find something newer or different; it's to identify the breaker with the correct form, fit, electrical ratings, and function.

Key Features and Benefits

• 15-amp rating: Provides the specified current rating for equipment designed around a 15A HQGF breaker.
• Single-pole design: Clearly identifies the pole configuration needed when checking an existing installation.
• Ground fault circuit interruption: Incorporates the ground fault interruption function specified for the HQGF15.
• Thermal-magnetic operation: Uses a thermal-magnetic circuit breaker mechanism as specified.
• Plug-on connection: Designed for compatible equipment that uses the specified plug-on mounting arrangement.
• 40°C rating: Provides an important operating-temperature reference when matching the breaker to the intended equipment.
• Two-space footprint: Takes up two full-size panel spaces, making available panel space an important part of the fit check.


Technical Specifications

• Part Number: HQGF15

• Product Type: Circuit Breaker with Ground Fault Circuit Interruption

• Type: HQGF

• Amperage: 15 A

• Poles: 1

• Voltage: 120 VAC

• A.I.C. Rating: 10k at 120VAC

• Trip / Operating Type: Thermal Magnetic

• Ground Fault Circuit Interruption: Yes

• Connection Type: Plug-On

• Temperature Rating: 40°C

• Panel Space Requirement: Two full-size spaces

• Height: 4.81 in

• Width: 1.50 in

• Depth: 2.50 in

• Dimensions: 1.50"W x 4.81"L x 2.50"D

• Approximate Shipping Weight: 2.25 lbs.


Material Compliance and Certifications

No specific material-compliance declarations or agency certifications were included in the supplied specifications for the HQGF15. Accordingly, UL, CSA, RoHS, REACH, or other certification and compliance claims should not be assumed from this product description alone.

Where It Works Best

The HQGF15 15A ground-fault circuit breaker makes sense for compatible legacy electrical equipment that specifically requires its combination of a 15A rating, one-pole, 120VAC rating, 10k AIC, HQGF type, plug-on connection, thermal-magnetic operation, and ground-fault circuit interruption. Physical fit matters here, too. The installation must accommodate a breaker measuring 1.50 inches wide by 4.81 inches long by 2.50 inches deep and provide two full-size panel spaces.
