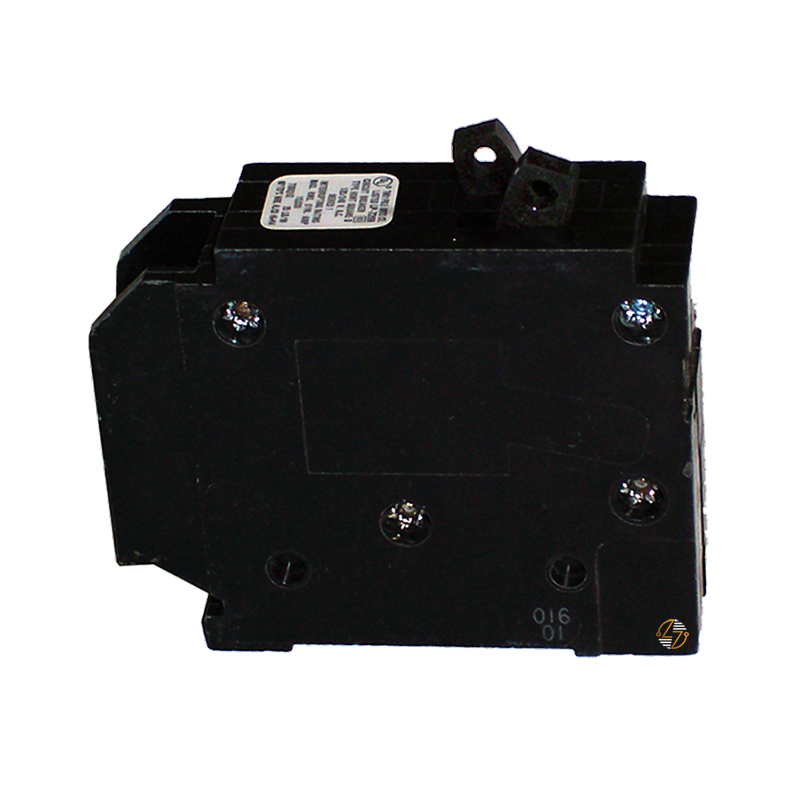

HOMT1515 - Duplex 15/15 Circuit Breaker

HOMT1515 - Duplex 15/15 Circuit Breaker

Need two 15 Amp circuits but only have one compatible breaker space available? The HOMT1515 Square D Homeline tandem circuit breaker is designed for exactly that situation. Inside its compact 1-inch-wide body are two independent 15 Amp, single-pole thermal-magnetic breakers, each with its own switching and tripping action. Because both circuits fit within a single compatible HOM pole space, the HOMT1515 can help you make better use of the available room in a Homeline load center without sacrificing individual circuit protection.

Key Features and Benefits

• Two 15 Amp circuits in one tandem breaker – provides individual protection for two single-pole circuits.
• Saves panel space – occupies just one compatible HOM pole space.
• Independent operation – each 15A breaker has its own switching and tripping action.
• Made for compatible Homeline load centers – useful for HOMT1515 replacement and properly approved tandem applications.
• Plug-in mounting – designed for quick, familiar installation in compatible equipment.
• Flexible conductor compatibility – accepts 14 AWG through 8 AWG copper or aluminum wire.


Technical Specifications

• Catalog Number: HOMT1515

• Product: Miniature circuit breaker

• Range: Homeline

• Breaker Type: Tandem

• Configuration: Two single-pole breakers in one tandem unit

• Current Rating: 15A / 15A

• Voltage Rating: 120V AC per circuit

• Poles: 1P per circuit

• Spaces Required: 1 compatible HOM pole space

• Short-Circuit Current Rating: 10 kA

• Mounting: Plug-in

• Protection: Thermal-magnetic

• Terminal Type: Screw clamp

• Accepted Wire Size: 14 AWG to 8 AWG

• Conductor Compatibility: Copper or aluminum

• Tightening Torque: 35.4 lbf-in (4.0 N·m)

• HACR Rated: Yes

• Maximum Operating Ambient Temperature: 104°F (40°C)

• Height: 3.13 in. (79.50 mm)

• Width: 1 in. (25.4 mm)

• Depth: 2.98 in. (75.69 mm)

• Product Weight: 0.450 lb. (0.204 kg)


Material Compliance and Certifications

The HOMT1515 is UL Listed and HACR rated. It is intended for use with compatible Homeline equipment approved for this type of tandem breaker.

Panel compatibility matters. Before replacing or adding a breaker, check the load center label to make sure the HOMT1515 tandem configuration is permitted in the intended position. The circuit requirements should also match the breaker's 15A rating, voltage, 10 kA short-circuit rating, and allowable conductor sizes.

Where It Works Best

The HOMT1515 is a good fit for compatible Homeline load centers where two separately protected 15 Amp circuits are needed, but only one approved tandem breaker space is available. It can also be a practical replacement when you're matching an existing HOMT1515 by catalog number and electrical specifications.
